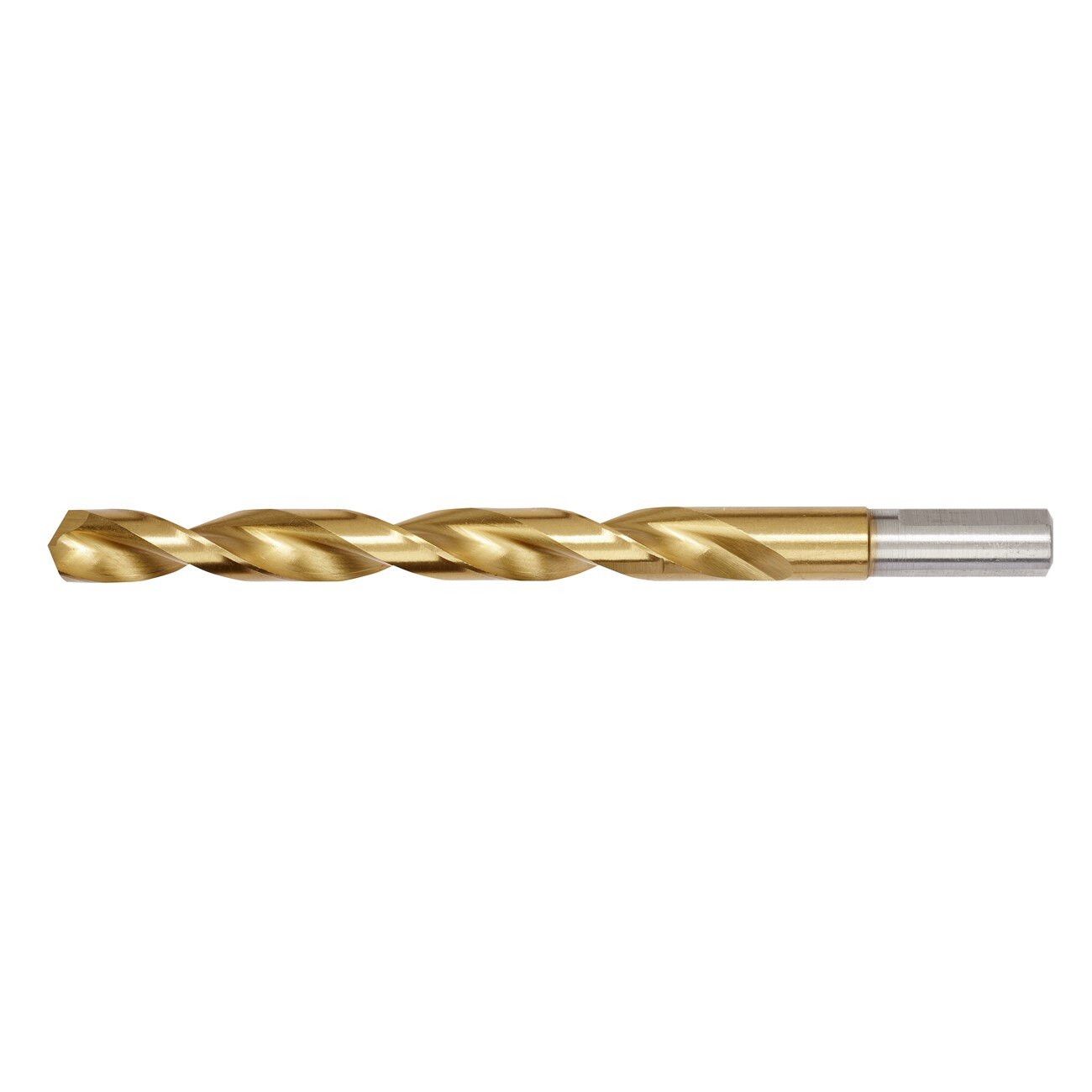

Milwaukee 48-89-2223 Titanium Jobber Drill Bit 6.8 in

Product Description

The MILWAUKEE 48-89-2223 is a titanium-coated jobber length drill bit built for demanding drilling applications in wood, metal, and PVC. The titanium coating reduces heat build-up to extend cutting life significantly compared to standard high-speed steel bits. A thicker web core provides added strength and resistance to side-load breakage. The 135-degree split point tip starts on contact without walking, delivering precise, clean holes. A parabolic flute geometry clears chips quickly to maintain cutting speed. This bit is suited for use by electricians, plumbers, HVAC technicians, and general trade professionals working with portable drills.

This drill bit is designed for jobsite use across residential and light commercial applications. It is effective on curved and flat surfaces and handles a range of common trade materials including wood framing, sheet metal, and PVC pipe. The reduced shank diameter allows use in standard 3/8-inch chucks, making it compatible with most portable drill drivers found on the jobsite. The 3-flat shank design locks securely in the chuck to prevent slipping during high-torque drilling.

Key Features

• Titanium coating reduces heat build-up and extends cutting life
• Thicker web core resists side-load breakage for greater durability
• 135-degree split point tip starts on contact and prevents walking
• Parabolic flute form clears chips rapidly for faster drilling
• 3-flat shank holds securely in drill chuck to prevent slipping
• Reduced shank diameter fits standard 3/8-inch drill chucks

Compatibility

Designed for use with portable drill drivers equipped with 3/8-inch or larger chucks. Suitable for drilling wood, metal, and PVC in residential and light commercial trade applications.

Installation Notes

Installation and use of drill bits should follow standard jobsite safety practices. Ensure the drill is powered off and the chuck is fully tightened around the 3-flat shank before operation. Use appropriate eye protection and secure workpieces before drilling. Refer to applicable codes such as the NEC or IPC when drilling through structural or code-governed assemblies.

Technical Specifications

• Coating: Titanium
• Point Angle: 135 degrees split point
• Shank Type: 3-flat Secure-Grip
• Chuck Compatibility: 3/8 inches and larger
• Overall Length: 6.8 inches
• Packaged Length: 7.75 inches
• Packaged Width: 1.9 inches
• Packaged Height: 0.4 inches
• Weight: 0.15 pounds
• UOM: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 48-89-2223
