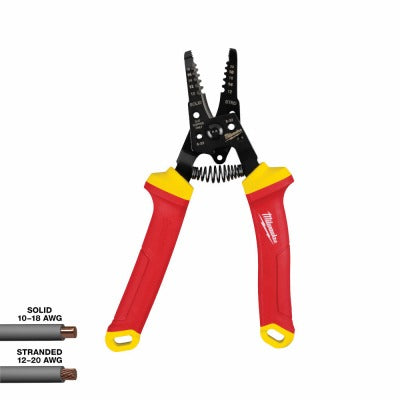

Milwaukee 48-22-2214 1000V Insulated Wire Stripper 10-20 Awg

Product Description

The Milwaukee 48-22-2214 is an 8-inch insulated wire stripper and cutter rated for use on circuits up to 1000 volts. It strips 10 to 20 AWG wire and is built for licensed electricians performing live-circuit or high-voltage-adjacent work where insulated hand tools are required. The handles carry a flame-retardant 1000-volt insulation layer for shock protection. A curved blade design allows clean cuts through both solid and stranded wire in larger sizes. A built-in bolt cutter handles 6/32 and 8/32 bolts, reducing the number of tools needed on the job.

This tool is suited for commercial and residential electrical work where IEC 60900 and ASTM F1505 compliance is required or specified. It is commonly used by electricians working in panels, junction boxes, and conduit runs where inadvertent contact with energized conductors is a risk. The 1000-volt insulation rating meets the standard threshold for insulated hand tools recognized by NEC-compliant electrical work. Milwaukee backs this tool with a limited lifetime warranty.

Key Features

• 1000-volt flame-retardant insulated handles for shock protection on energized work
• Strips 10 to 20 AWG solid and stranded wire
• Curved blade design enables clean cuts through larger wire sizes
• Built-in bolt cutter rated for 6/32 and 8/32 bolts
• UL classified and certified to IEC 60900 and ASTM F1505 standards for insulated hand tools
• Backed by Milwaukee limited lifetime warranty

Compatibility

Designed for use with 10 to 20 AWG solid and stranded copper wire. Suitable for any application requiring IEC 60900 or ASTM F1505 rated insulated hand tools.

Installation Notes

This tool is intended for use by qualified electricians. Even with 1000-volt insulated handles, follow all applicable NFPA 70E arc flash and shock hazard protocols before working near energized conductors. Inspect the insulation layer for cuts, cracks, or damage before each use — a compromised insulation layer voids the protection rating. Do not use as a pry tool or apply lateral force beyond the tool's designed cutting motion.

Technical Specifications

• Voltage Rating: 1000 volts
• Wire Range: 10 to 20 AWG
• Overall Length: 8 inches
• Bolt Cutter Capacity: 6/32 and 8/32 bolts
• Insulation Standard: IEC 60900, ASTM F1505
• Listing: UL Classified
• Weight: 1.63 pounds
• Unit of Measure: EA
• Package Quantity: 3
• Warranty: Limited Lifetime

Standard Information

• Brand: Milwaukee Electric Tool Corp
• Manufacturer Part Number: 48-22-2214
