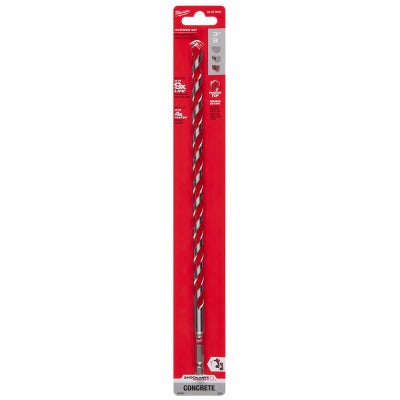

Milwaukee 48-20-9022 Carbide Hammer Drill Bit 3/8x12 in

Product Description

The MILWAUKEE ELECTRIC TOOL CORP 48-20-9022 is a carbide-tipped hammer drill bit engineered for demanding masonry and concrete drilling applications. Measuring 3/8 inches in diameter and 12 inches in overall length, this bit features a reinforced carbide tip designed to extend service life under repeated impact stress. It is compatible with both impact drivers and standard hammer drills, making it a versatile addition to any trade toolkit. The SHOCKWAVE Impact Duty construction is built to handle the torsional loads generated by high-torque impact tools without premature tip failure or shank damage. Licensed tradespeople and skilled installers working in commercial and residential settings will find this bit suited to high-cycle drilling tasks.

This bit is used wherever 3/8-inch holes are required through masonry, concrete block, or similar hard substrates. Typical applications include anchoring work for mechanical, electrical, and plumbing trades, as well as structural fastening in both new construction and retrofit installations. The 12-inch working length provides the reach needed for through-wall penetrations and deep anchor-bolt applications that shorter bits cannot access. It is sold in a package quantity of 3 units, making it practical for multi-hole projects or crew supply.

Key Features

• Carbide tip engineered for extended durability in high-impact masonry drilling
• SHOCKWAVE Impact Duty design handles torsional stress from impact drivers and hammer drills
• POWER TIP geometry promotes faster penetration and reduced bit walking on hard surfaces
• Compatible with both impact drivers and conventional hammer drills
• 12-inch overall length provides reach for deep anchor and through-wall applications
• Sold in a 3-unit package for job-site efficiency

Compatibility

Designed for use with standard impact drivers and hammer drills accepting a 3/8-inch shank. Suitable for drilling into masonry, concrete block, and similar hard substrates.

Installation Notes

Installation should be performed by qualified tradespeople following applicable jobsite safety protocols. Always confirm the drill or impact driver is powered down and any battery is removed before changing bits. Wear appropriate PPE including eye protection when drilling into masonry or concrete. Follow manufacturer torque and speed guidance for the host tool to avoid bit or chuck damage.

Technical Specifications

• Diameter: 3/8 inches
• Overall Length: 12 inches
• Working Length: 10 inches
• Tip Material: Carbide
• Package Quantity: 3 EA
• Weight: 0.73 pounds

Standard Information

• Brand: MILWAUKEE ELECTRIC TOOL CORP
• Manufacturer Part Number: 48-20-9022
