Milwaukee 48-20-5434 Carbide Tipped SDS-Max Core Drill Bit

Product Description

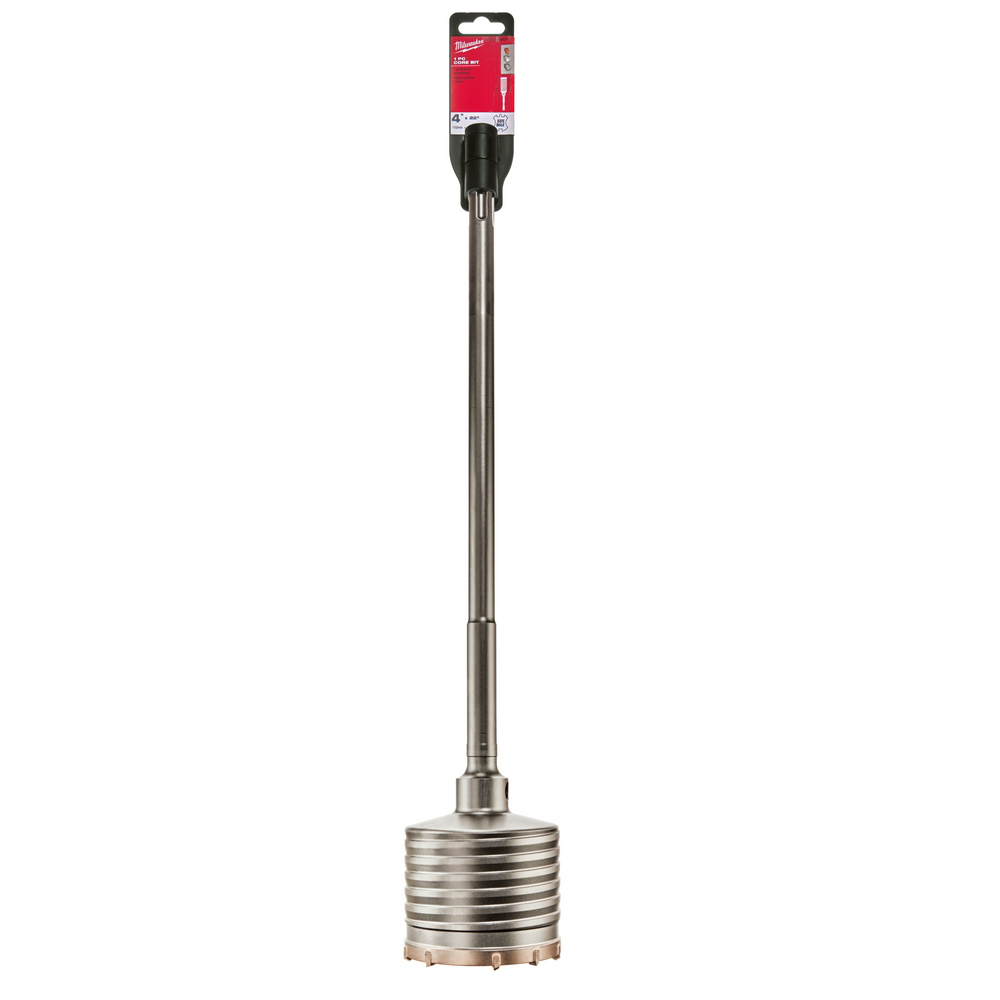

Milwaukee 48-20-5434 is a carbide-tipped core drill bit designed for drilling large holes with shallow depths. It features a cutting diameter of four inches and an overall length of twenty-two inches. The core bit operates by cutting a kerf, requiring operators to remove the inner core before deeper drilling can proceed. It is recommended to use centering bit 48-20-5495 for accurate drilling. A drift key, specified as 48-20-5497, is needed for the removal of the centering bit but is not included.

• Ideal for shallow drilling of large diameter holes.
• Durable, 1-piece construction for improved energy transfer.
• Compatible with SDS-Max and spline shanks.

Product Highlights

This core drill bit comes with asymmetrical and alternating teeth that improve material pulverization

Product Information

Standard Information

• Brand: Milwaukee Tool
• MPN: 48-20-5434
• Type: Core Drill Bit
• Diameter: 4 inches
• Length: 22 inches

Technical Specifications

• Drilling Depth: 3 inches
• Weight: 5.05 pounds
• EAN or UPC: 045242315611
• Shank Size: 45/64 inches
• Shank Type: SDS Max
• Material: Carbide Tipped
