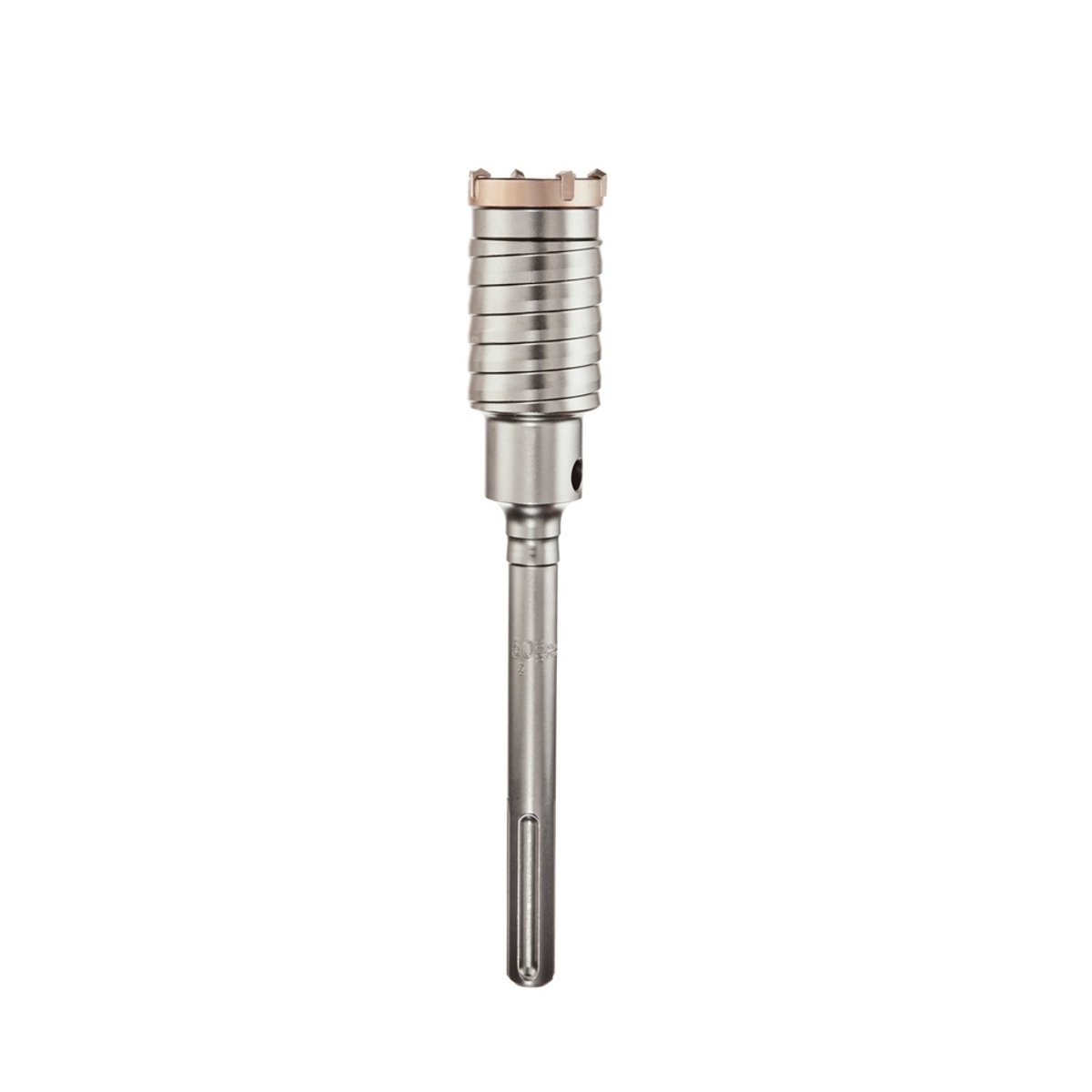

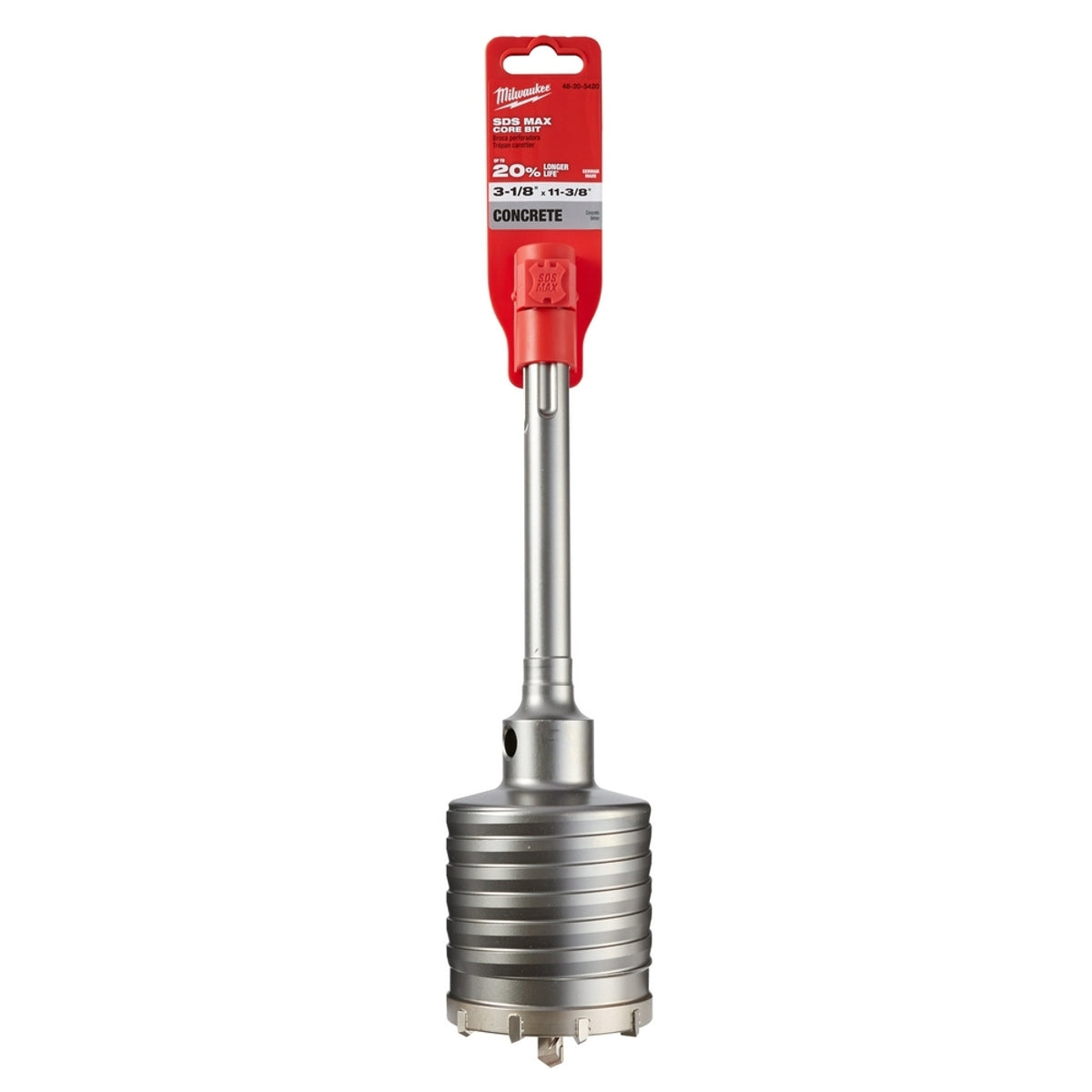

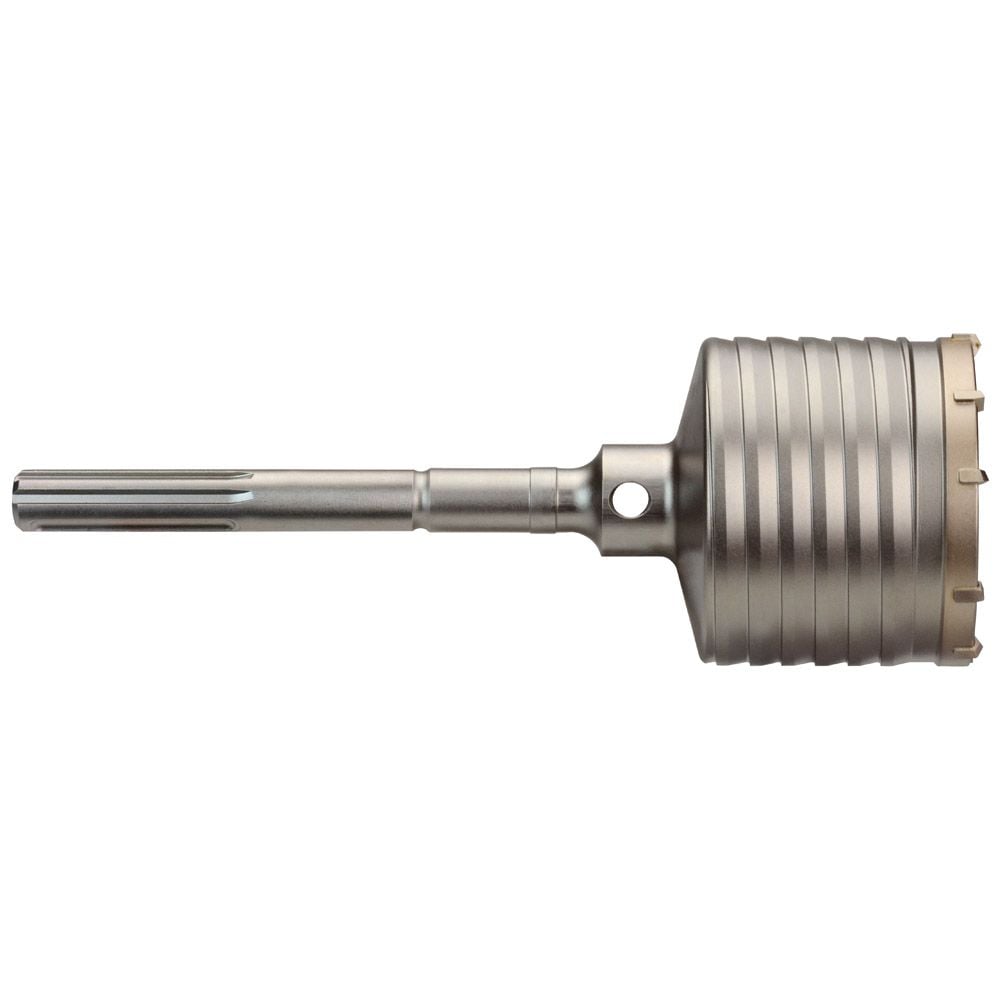

Milwaukee 48-20-5420 3-1/8 in. x 11-3/8 in. SDS-Max Core Bit

Product Description

The Milwaukee 48-20-5420 one-piece carbide-tipped core bit is designed for drilling large, shallow holes. This core bit cuts a kerf, requiring manual removal of the inner core for deeper drilling. It is recommended to use centering bit 48-20-5495 and drift key 48-20-5497. The core bit features an asymmetric tooth pitch with alternating tooth geometries for faster material pulverization.

• Asymmetrical and alternating teeth for faster material pulverization
• Thick-wall core body for durability even in large hammers
• Optional centering tip reduces bit walking for precise drilling

Product Highlights

This Milwaukee core bit maximizes energy transfer with its one-piece design and ensures durability with its thick wall core body, making it suitable for use with large hammers.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 48-20-5420
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 48-20-5420
• Manufacturer: Milwaukee Electric Tool
• Brand: Milwaukee
• Country of Origin: Germany
• UPC: 045242315567
• GTIN: 00045242315567
• MPN: 48-20-5420
• Drill Size - Fraction: 3-1/8 in
• Overall Length: 11-3/8 in
• Drilling Length: 3 Inch
• Shank Type: SDS Max®
• Material: Carbide Tipped
• Diameter: 3-1/8"
• Length: 11-3/8"
• Cutting Depth: 3 in
• Cutting Edge Material: Carbide
• Shank Size: 45/64 in
• Type: 1-Piece
• Drill Size - Decimal Inch: 3.125 in
• Product Type: Hammer Bits
• Drill Bit Type: Core
• Drilling Depth: 3 in.
• Bit Diameter: 3-1/8 in
• Drive: SDS-MAX
• Model: 48-20-5420
• Width: 2.13in.
