Milwaukee 48-13-6904 Lineman Impact Auger Bit 5/8 in

Product Description

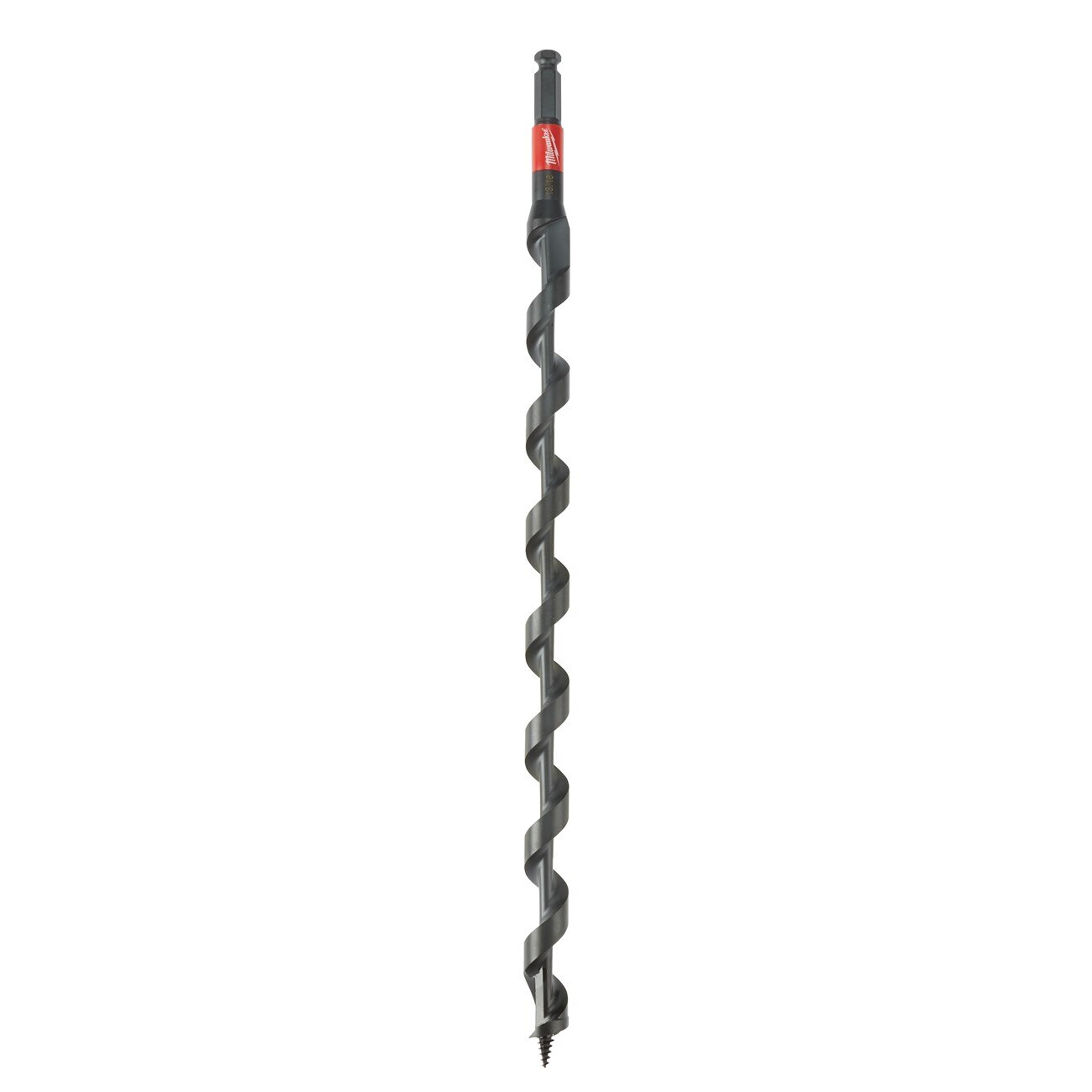

The MILWAUKEE 48-13-6904 is a SHOCKWAVE lineman's impact auger bit engineered for drilling clean, fast holes in wooden utility poles. It features a single spur design that scores the perimeter of the hole, producing a cleaner finish so bolts slide through without resistance. A reinforced anti-friction PTFE coating reduces friction during drilling and makes bit removal easier after each hole. The aggressive feed screw and cutting edge pull the bit through the wood, while the optimized wide flute geometry ejects chips quickly to clear the hole and reduce clogging. The solid stemmed core adds strength under the high-torque demands of impact drilling. Power utility linemen are the primary users of this bit.

This bit is designed specifically for drilling into wooden utility poles and is recommended for clean wood only. The 7/16 inch hex shank connects directly into 7/16 inch quick-connect impact chucks, making it compatible with most modern impact drivers and right-angle drills used in utility line work. At 5/8 inch diameter and 27 inch flute length, it reaches the depth required for through-bolt installations on standard utility pole hardware. This is a single-piece item sold individually.

Key Features

• Single spur design scores the hole edge for a cleaner finish and easier bolt installation
• Reinforced anti-friction PTFE coating for smoother drilling and easier bit removal
• Aggressive feed screw and cutting edge for faster material penetration
• Optimized wide flute geometry ejects chips quickly and reduces clogging
• Solid stemmed core provides added strength under high-torque impact use
• 7/16 inch hex shank fits standard quick-connect impact chucks

Compatibility

Designed for use with impact drivers and right-angle drills equipped with 7/16 inch quick-connect chucks. Intended for drilling into wooden utility poles; recommended for clean wood only.

Installation Notes

Installation is typically performed by licensed power utility linemen following applicable utility and safety standards. Ensure the drill or impact driver is powered off and secured before changing bits. Use appropriate fall protection and PPE when working on or near utility poles. Do not use this bit on treated, embedded debris, or heavily degraded wood where internal obstructions may cause binding.

Technical Specifications

• Bit Diameter: 5/8 inches
• Flute Length: 27 inches
• Shank Type: 7/16 inch hex quick-connect
• Coating: Reinforced anti-friction PTFE
• Core Construction: Solid stemmed
• Weight: 1.23 pounds
• Overall Length: 31.3 inches
• Quantity: 1 piece
• UPC: 0045242531974

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 48-13-6904
