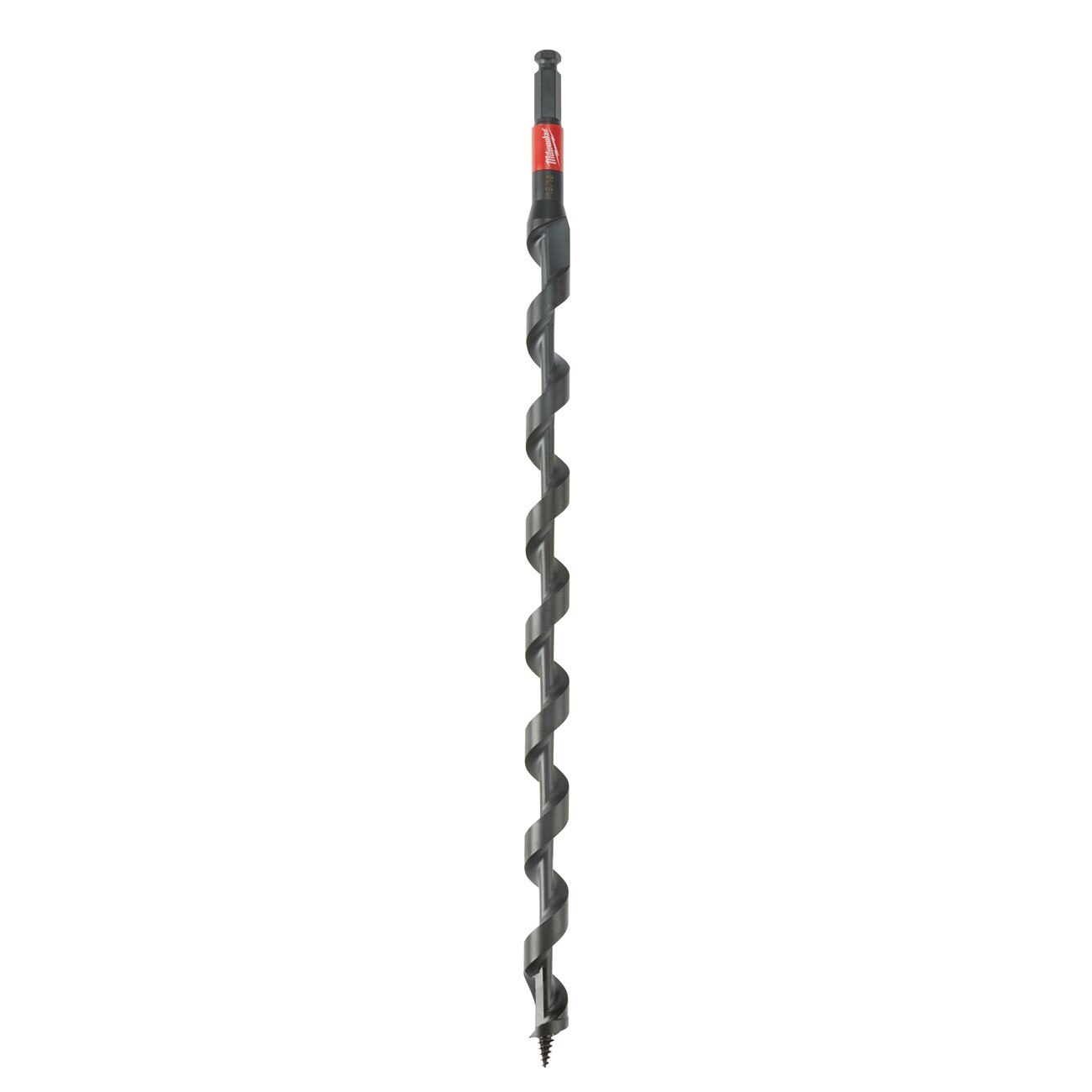

Milwaukee 48-13-6813 Lineman Impact Auger Bit 1-1/4 in

Product Description

The MILWAUKEE 48-13-6813 is a SHOCKWAVE Lineman Impact Auger Bit engineered for power utility linemen who need clean, fast holes in wooden utility poles. The bit features a single spur design that scores the edge of the hole before cutting, producing a cleaner bore that allows hardware to slide through without resistance. A reinforced anti-friction PTFE coating reduces drilling friction and simplifies bit withdrawal from dense pole material. The aggressive feed screw and cutting edge pull the bit through wood efficiently, while the optimized wide flute geometry ejects chips rapidly to prevent clogging and maintain drilling speed. The solid stemmed core adds structural strength for demanding field conditions.

This auger bit is designed specifically for power utility linework involving wooden utility poles. It is intended for use with impact drivers or drills equipped with a 7/16-inch quick-connect chuck. The bit is recommended for clean wood only and is not rated for wood containing embedded hardware, spikes, or other obstructions. It is available in 18-inch and 24-inch lengths to suit varying pole drilling depths and reach requirements on utility job sites.

Key Features

• Single spur design scores the hole edge for a cleaner finish and easier hardware installation
• Reinforced anti-friction PTFE coating reduces friction during drilling and simplifies bit removal
• Aggressive feed screw and cutting edge for faster material penetration in wooden poles
• Optimized wide flute geometry rapidly ejects chips to minimize clogging
• Solid stemmed core provides added strength under impact tool loads
• 7/16-inch hex shank compatible with standard quick-connect impact driver chucks

Compatibility

Designed for use with impact drivers and drills equipped with a 7/16-inch quick-connect chuck. Intended for drilling into clean wooden utility poles only.

Installation Notes

This bit is installed and operated by qualified power utility linemen following applicable site safety and utility work standards. Ensure the impact driver or drill is powered off and properly secured before changing bits. Use only with a 7/16-inch quick-connect chuck rated for impact tool use. Do not use on poles with embedded metal hardware, treated wood contaminants, or materials other than clean wood, as this may damage the bit or create unsafe conditions.

Technical Specifications

• Bit Diameter: 1-1/4 inches
• Shank Type: 7/16-inch hex quick-connect
• Coating: Reinforced anti-friction PTFE
• Design: Single spur, solid stemmed core
• Overall Length: 25.28 inches
• Weight: 3.06 pounds
• UOM: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 48-13-6813
