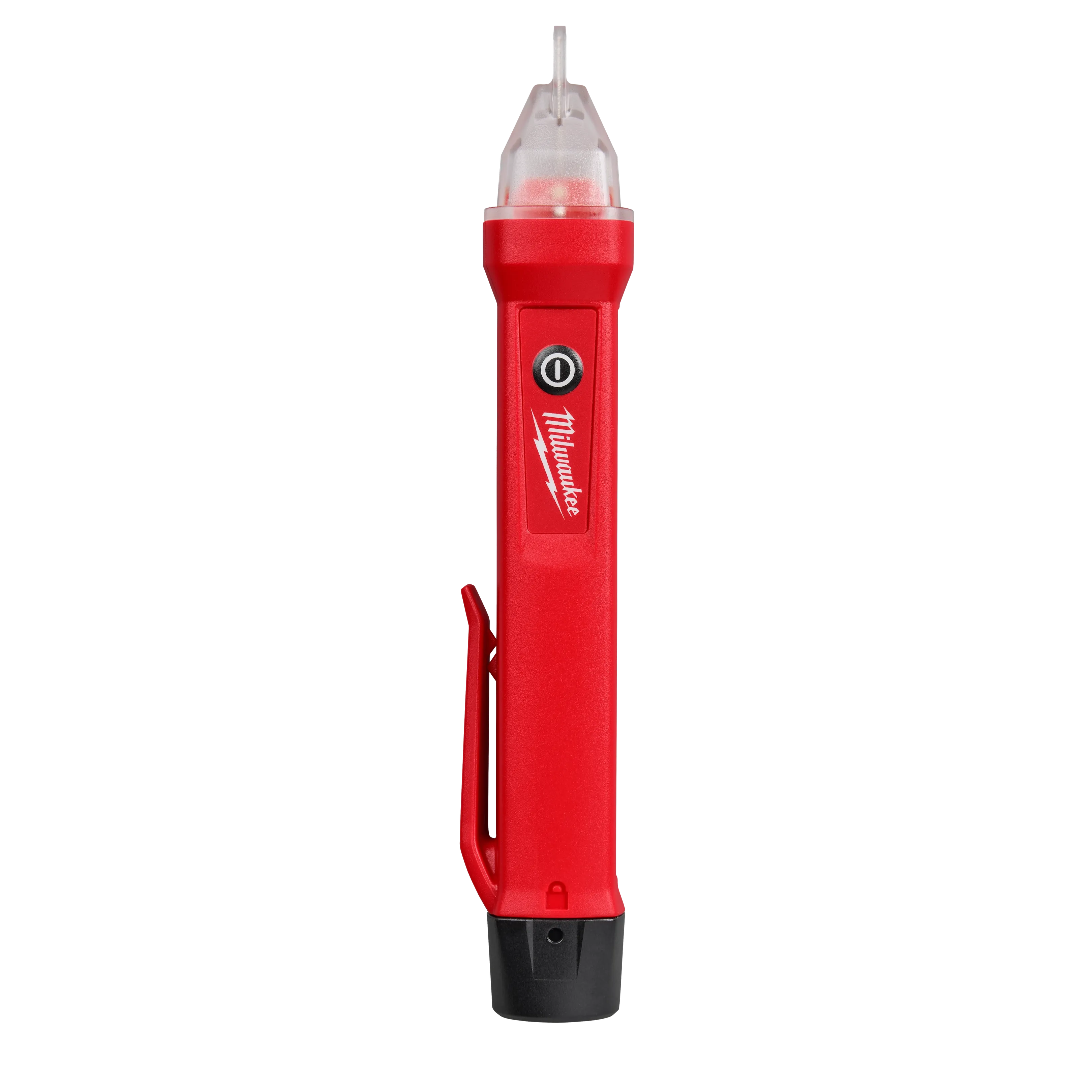

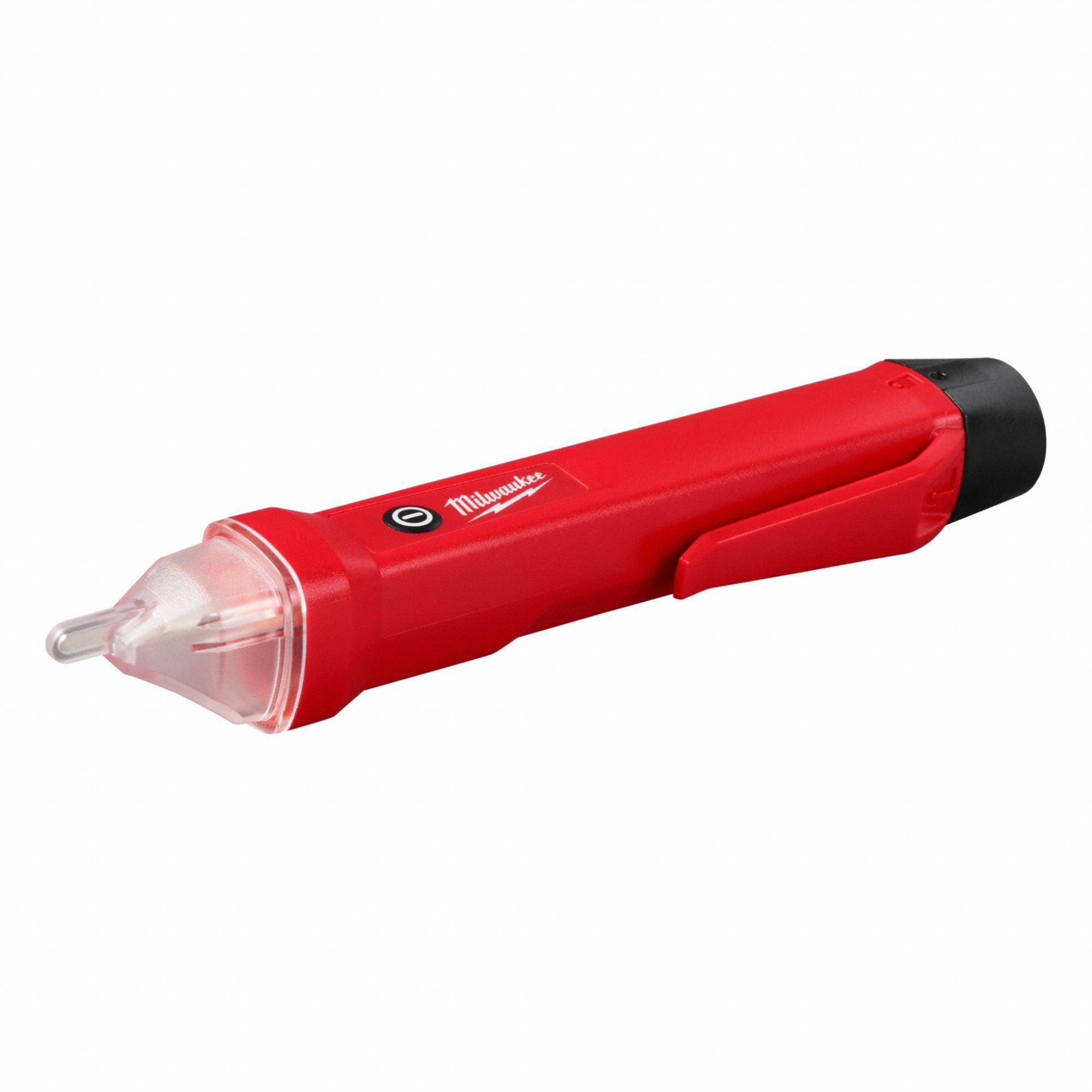

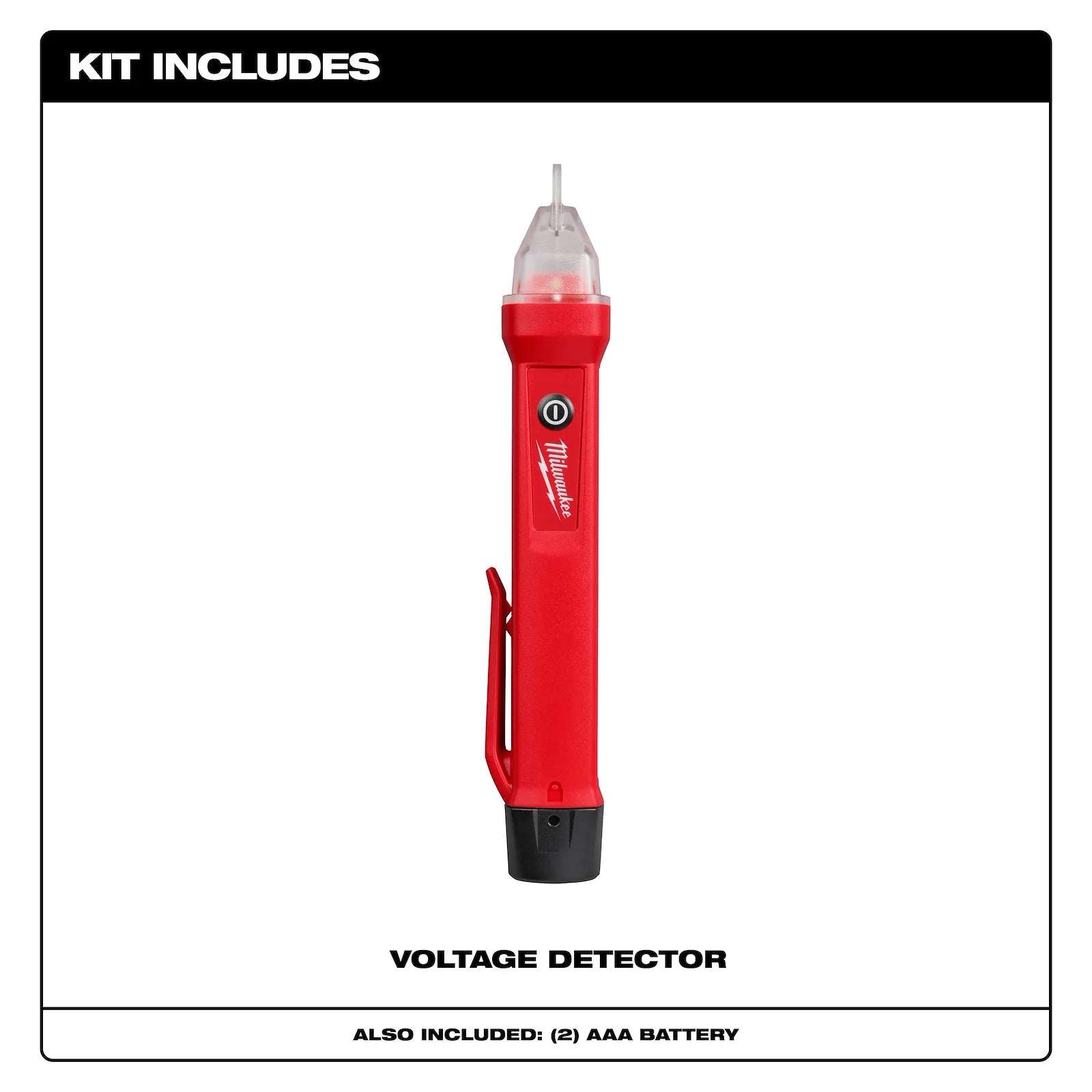

Milwaukee 3200-20 Voltage Detector 50-1000V AC (1 Pack)

Product Description

Milwaukee 3200-20 Voltage Detector is a non-contact tester that identifies live AC voltage from 50 V to 1000 V. It provides visual (red LED) and audible indicators and includes a reinforced tip, durable belt clip, and quarter-turn cap for battery replacement. The pen-style detector is CAT IV 1000 V rated, IP54 protected, powered by two AAA batteries, and includes a digital LED display and built-in flashlight for inspections.

• Non-contact AC voltage detection from 50 V to 1000 V with visual and audible alerts
• CAT IV 1000 V safety rating and IP54 ingress protection for dusty or damp environments
• Powered by 2 x AAA batteries; features reinforced tip, durable belt clip, quarter-turn battery cap, digital LED display, and built-in flashlight

Product Highlights

Non-contact AC voltage detection 50�1000 V with audible and LED alerts; CAT IV 1000 V and IP54 rated; battery powered (2x AAA).

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 3200-20
• Country of Origin: Vietnam

Technical Specifications

• Brand: Milwaukee
• Model: 3200-20
• Detection Type: Non-contact
• Voltage Range: 50 V to 1000 V AC
• Maximum Voltage: 1000 V AC
• Indicators: Red LED visual indicator; audible tone; digital LED display
• Built-In Flashlight: Yes
• Test Connection Type: Probe tip
• Power Source: 2 x AAA batteries
• Batteries Included: Yes
• Number of Batteries Required: 2
• Safety Rating: CAT IV 1000 V
• Ingress Protection: IP54
• Dimensions (H x L x W): 5.86 in x 1.02 in x 1.01 in
• Weight: 0.13 lb
• Mounting: Durable belt clip
• Switch Type: Push button
• Country of Origin: Vietnam
