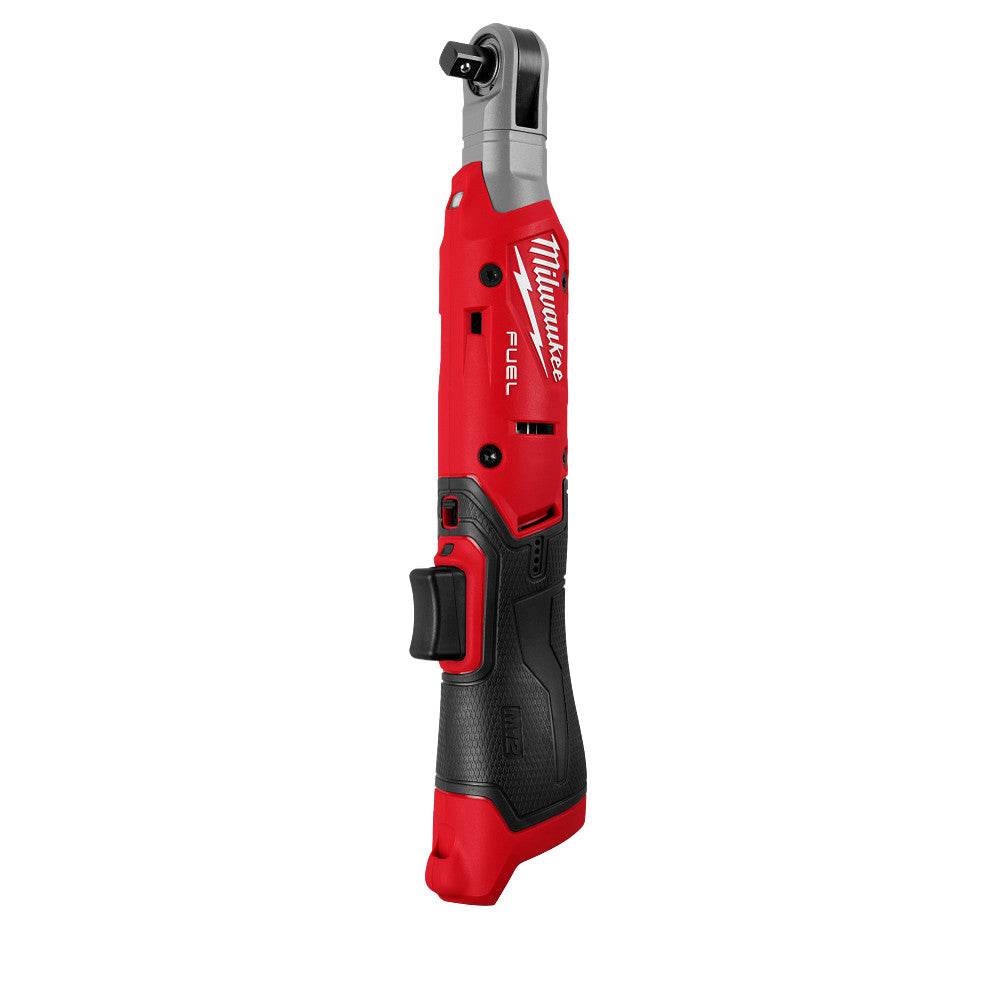

Milwaukee 3053-20 M12 Fuel 3/8 in Ratchet 70 ft-lbs (Bare Tool)

Product Description

Milwaukee 3053-20 is an M12 FUEL 3/8 in cordless ratchet sold as a bare tool. It uses a POWERSTATE brushless outer rotor motor with REDLINK PLUS intelligence and bi-directional motor firmware to deliver up to 70 ft-lbs of maximum torque and up to 400 RPM. The ratchet has a most-compact 0.75 in head profile for access to tight spaces, an integrated grease port, targeted LED illumination, and a contoured grip. Weight excluding battery is 1.5 lb.

• Up to 70 ft-lbs maximum torque and up to 400 RPM powered by POWERSTATE brushless motor
• Most-compact 0.75 in head profile, contoured grip, and metal reinforced housing for access and durability
• Modular trigger cap (button and paddle), integrated grease port, targeted LED work light, and REDLINK PLUS intelligence

Product Highlights

M12 FUEL 3/8 in ratchet; 70 ft-lbs, 400 RPM, 0.75 in head profile; bare tool, 1.5 lb (excl. battery); POWERSTATE brushless; REDLINK PLUS

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 3053-20
• Country of Origin: Mexico

Technical Specifications

• Brand: Milwaukee
• MPN: 3053-20
• Battery System: M12
• FUEL: Yes
• Motor Type: POWERSTATE brushless outer rotor
• Drive Size: 3/8 in
• Anvil Type: Ball detent
• Maximum Torque: 70 ft-lbs
• Speed (RPM): 400 RPM
• Head Profile: 0.75 in (3/4 in)
• Weight (Excluding Battery): 1.5 lb
• Dimensions (H x L x W): 2.5 in x 12.5 in x 3 in
• Electronics/Intelligence: REDLINK PLUS intelligence; bi-directional motor firmware
• Features Summary: Modular trigger cap (button and paddle), targeted LED work light, integrated grease port, battery isolation system, metal reinforced housing
