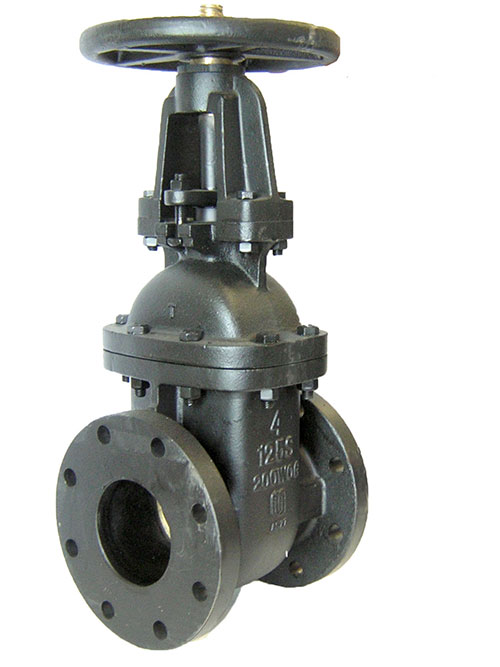

Milwaukee 2885-M Cast Iron Gate Valve

Product Description

The Milwaukee 2885-M is a specialized gate valve made to manage gas, oil, and water in various systems. With a robust cast iron body and a flanged end for easy connection, this valve ensures reliable performance. It is equipped with a solid wedge disc and features a bolted bonnet design. The operation is straightforward using a handwheel actuator, making it user-friendly.

• Constructed from cast iron with a bronze trim.
• Operated with a handwheel for easy functionality.
• Meets MSS SP-70, Type 1 standards for quality assurance.

Product Highlights

This gate valve is ideal for industrial applications where durability is essential.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: 2885-M

Technical Specifications

• Series: F-2885-M
• Valve Type: Gate Valve
• Body Material: Cast Iron
• Trim Material: Brass
• End Connection: Flanged
• Actuator Type: Handwheel
• Pressure Rating: 200 psi WOG
• Disc Material: Solid Wedge
• Bonnet Type: Bolted
• Valve Seat Material: Bronze
• Pressure Class: 125#, 200#
• Handle Length: 10 inches
• Dimensions: 9 inches
• Weight: 109 lb
• Inlet to Outlet Length: 8 inches
• Top to Inlet Center: 18-3/4 inches
• Hand Wheel Diameter: 8 inches
• Valve Size: 4 inches
• Origin: Global
