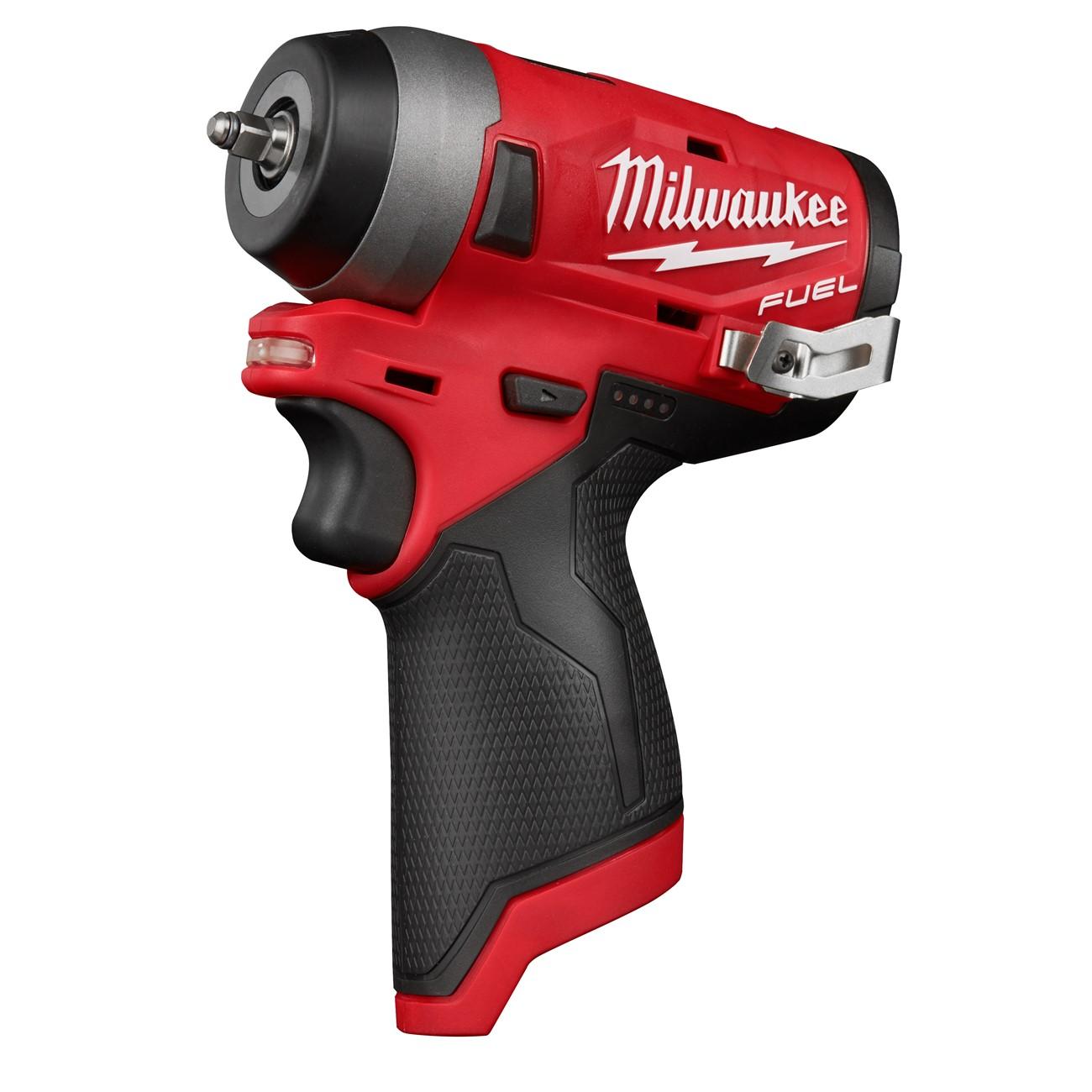

Milwaukee 2552-20 M12 Fuel Stubby 1/4 Inch Impact Wrench

Product Description

The MILWAUKEE 2552-20 is a cordless 1/4 inch drive stubby impact wrench built on the M12 FUEL platform. Powered by a POWERSTATE brushless motor and REDLINK intelligence, it delivers 100 ft-lb of breakaway torque from a body that measures just 5.1 inches in length. That compact form factor allows the tool to reach fasteners in confined spaces where standard impact wrenches cannot fit. Four-mode drive control lets the technician dial in output from precision low-speed tightening up to full breakaway force, and an auto-shutoff setting in mode four prevents over-torquing during reassembly. The tool weighs 1.97 pounds bare. Licensed tradespeople and experienced DIYers working in mechanical, HVAC, plumbing, and electrical service applications will find this wrench useful for fastener removal and installation where clearance is limited.

The 2552-20 is well suited to residential and light commercial service work where technicians encounter tight equipment bays, cramped access panels, and confined fastener locations. Typical applications include HVAC unit service, equipment mounting hardware, pipe hanger hardware, and panel fasteners. The 4-mode drive control makes it practical for both removal of seized fasteners and controlled reassembly without over-driving. This listing covers the bare tool only and does not include a battery or charger. It is compatible with the M12 REDLITHIUM battery system, giving users access to over 90 tools on a shared platform.

Key Features

• 5.1 inch body length for access in tight spaces
• 100 ft-lb breakaway torque for stubborn fastener removal
• 4-mode drive control for precision fastening and breakaway performance
• Auto-shutoff mode in setting 4 reduces risk of over-fastening during reassembly
• POWERSTATE brushless motor with REDLINK intelligence
• Compatible with the M12 REDLITHIUM battery system shared across 90 or more M12 tools

Compatibility

Compatible with all M12 REDLITHIUM batteries. Bare tool only — no battery or charger included.

Installation Notes

Installation and use should be performed by qualified trade professionals familiar with fastener torque requirements for the application. Disconnect power, shut off gas or fluid supply, and relieve system pressure before servicing any equipment with this tool. Use the appropriate 1/4 inch drive impact-rated socket accessories only — standard chrome sockets are not rated for impact use. Verify final fastener torque against manufacturer specifications using a calibrated torque wrench where required by code or equipment guidelines.

Technical Specifications

• Drive Size: 1/4 inch
• Breakaway Torque: 100 ft-lb
• No-Load Speed: 3000 RPM
• Drive Modes: 4
• Body Length: 5.1 inches
• Package Length: 6.6 inches
• Package Width: 3 inches
• Package Height: 7.5 inches
• Weight: 1.97 pounds
• UPC: 0045242521159
• Sold As: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 2552-20
