Product Description

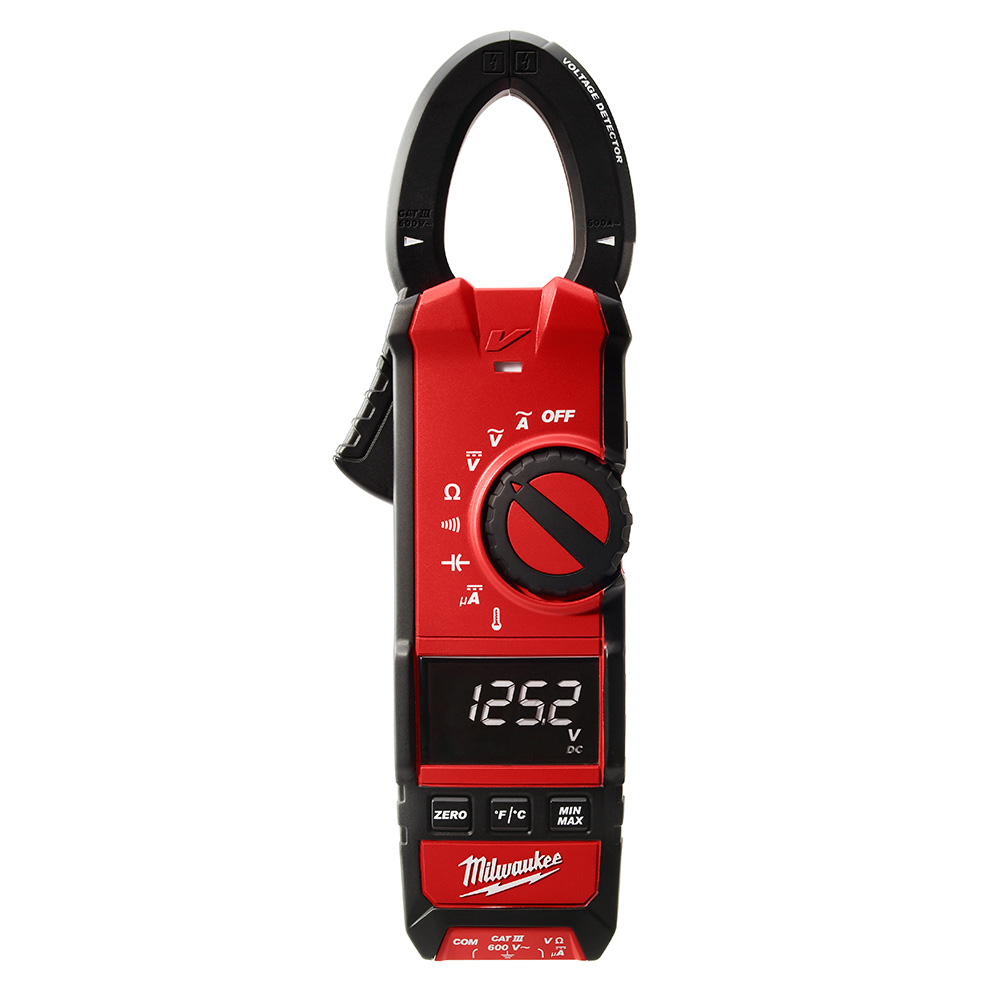

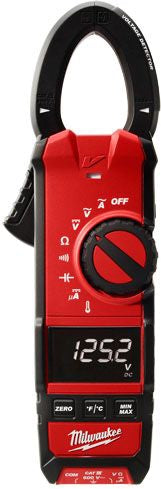

The Milwaukee clamp meter for HVAC/R is a heavy-duty True-RMS electrical current tester suited for professional residential, commercial, and industrial use. The 2236-20 model comes with a wide jaw opening of one point three inches, allowing it to easily handle large conductors. Its thin jaw profile provides access to tight spaces, and the high-contrast white-on-black display enhances readability.
- Measures up to 600 A AC
- Non-contact voltage detection
- LED work light for improved visibility
Product Highlights
The Milwaukee 2236-20 clamp meter is designed for HVAC/R technicians, offering essential features for effective measurements and enhanced productivity.
Product Information
Standard Information
-
Brand: Milwaukee Tool
-
MPN: 2236-20
Technical Specifications
-
Maximum AC Current: 600 A
-
Voltage Range: 600 AC/DC volts
-
Weight: 1.49 lb
-
Jaw Capacity: 1.3 in
-
Display Type: High Contrast White on Digital
-
Resistance: 6 kOhm
-
Temperature Rating: -40 to 752 F
-
Frequency Rating: 1 Hz to 10 kHz
-
Power Source: 2 AA Alkaline Batteries
