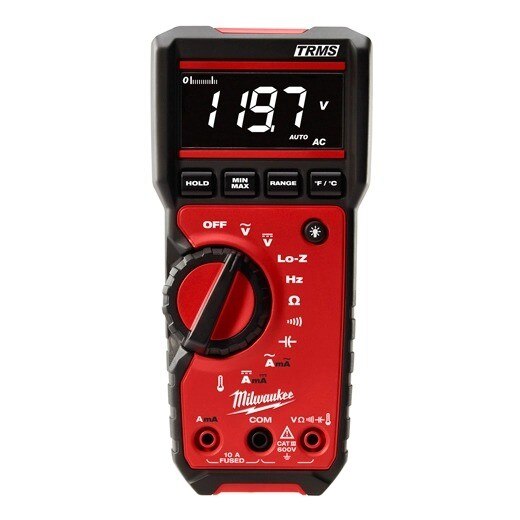

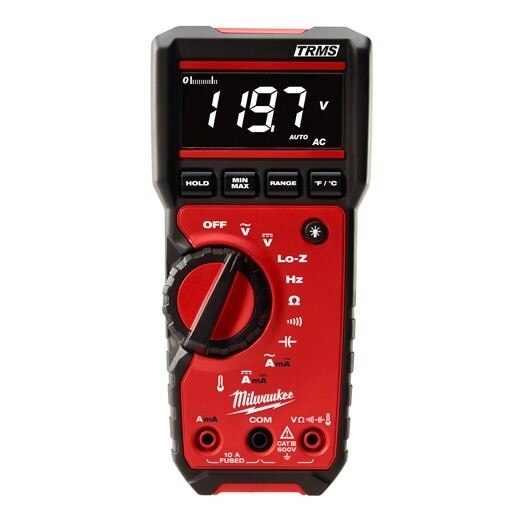

Milwaukee 2217-20NST True Rms Multimeter 600V Ac/dc

Product Description

The MILWAUKEE 2217-20NST is a True RMS digital multimeter built for professional electrical work in residential, commercial, and industrial environments. Rated to CAT III 600 volts, it measures AC and DC voltage up to 600 volts, AC and DC current up to 10 amps, and frequency from 10 Hz to 50 kHz. A high-contrast white-on-black LCD with backlight delivers clear readings in low-light conditions. The slide rail system accepts proprietary accessories, and rugged over-molding provides durability and grip in demanding job site conditions. Licensed electricians and industrial technicians are the primary users of this instrument.

This multimeter is suited for troubleshooting and testing in commercial and industrial electrical systems as well as residential service work. Its True RMS measurement capability ensures accurate readings on non-sinusoidal waveforms, making it reliable for variable frequency drives, motor controls, and other loads with complex waveforms. The Lo-Z measurement function eliminates ghost voltage, reducing false readings on de-energized circuits. Contact temperature measurement extends the range to -40 degrees F to 752 degrees F, adding versatility for HVAC and process diagnostics on the same instrument.

Key Features

• True RMS measurement for accurate readings on both linear and non-linear loads
• Voltage range up to 600 volts AC/DC with auto-ranging down to millivolts
• Current measurement up to 10 amps AC/DC with auto-ranging to milliamp ranges
• Lo-Z mode eliminates ghost voltage on de-energized conductors
• Frequency measurement from 10 Hz to 50 kHz
• Contact temperature measurement from -40 degrees F to 752 degrees F
• CAT III 600V safety rating meets UL electrical safety specifications

Compatibility

Designed for use with MILWAUKEE slide rail accessory system; compatible with proprietary MILWAUKEE meter accessories. General-purpose CAT III multimeter suitable for residential, commercial, and industrial electrical testing applications.

Installation Notes

Installation and testing with this meter should be performed by a licensed electrician following applicable NEC guidelines and local codes. Always de-energize and verify absence of voltage before connecting or disconnecting test leads at any circuit. Confirm the meter CAT rating is appropriate for the installation category before taking measurements on high-energy systems. Inspect test leads for damage before each use.

Technical Specifications

• Voltage Range: up to 600 volts AC/DC
• Current Range: up to 10 amps AC/DC
• Frequency Range: 10 Hz to 50 kHz
• Temperature Range: -40 degrees F to 752 degrees F
• Safety Rating: CAT III 600V
• Display: High-contrast white-on-black LCD with backlight
• Length: 10.25 inches
• Width: 5.5 inches
• Height: 3.2 inches
• Weight: 1.42 pounds
• UOM: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 2217-20NST
