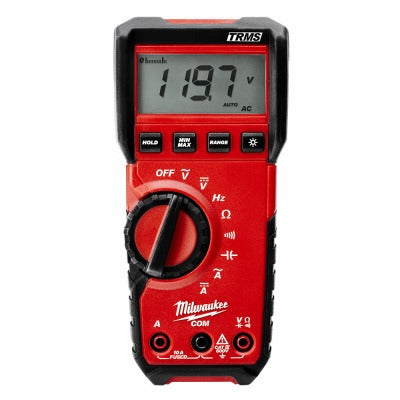

Milwaukee 2216-20 True Rms Digital Multimeter Cat Iii 600V

Product Description

The Milwaukee Electric Tool Corp 2216-20 is a heavy-duty True RMS digital multimeter built for professional electrical work in residential, commercial, and industrial environments. True RMS measurement ensures accurate readings across both linear and non-linear loads. The meter is rated CAT III 600 volts for safety in demanding electrical installations. AC voltage range spans 6 millivolts to 600 volts, DC voltage range covers 600 millivolts to 600 volts, and resistance measurement runs from 600 ohms to 40 megaohms. Frequency measurement covers 10 Hz to 50 kilohertz. Current measurement reaches 10 amps AC/DC. Licensed electricians, HVAC technicians, and industrial maintenance professionals are the primary users.

The 2216-20 is suited for field service, panel work, and system commissioning across a wide range of electrical applications. The hold function, min/max function, and digital bar graph readout simplify single-technician diagnostics. The black-on-white display with backlight supports use in low-light service areas. Rugged over-molding improves grip and durability in harsh job-site conditions. A proprietary rail system allows accessory mounting for expanded functionality. Includes one digital multimeter, one electrical test lead set, two AA batteries, and one manual.

Key Features

• True RMS measurement for accurate readings on linear and non-linear loads
• CAT III 600V safety rating for demanding electrical environments
• AC voltage range: 6 millivolts to 600 volts; DC voltage range: 600 millivolts to 600 volts
• Resistance measurement from 600 ohms to 40 megaohms
• Frequency measurement from 10 Hz to 50 kilohertz
• Continuity detection at less than 30 ohms with hold and min/max functions
• Proprietary rail system for mounting accessories

Compatibility

Designed as a general-purpose True RMS digital multimeter suitable for professional electrical, HVAC, and industrial maintenance applications.

Installation Notes

Installation and use should be performed by a qualified electrician or licensed trade professional. De-energize circuits and verify absence of voltage before connecting test leads where safe to do so. Follow applicable NEC guidelines and CAT III safety protocols when measuring live circuits at or near 600 volts. Do not exceed the rated input ranges for voltage, current, or resistance as marked on the meter.

Technical Specifications

• Measurement Type: True RMS
• Safety Rating: CAT III 600V
• AC Voltage Range: 6 millivolts to 600 volts
• DC Voltage Range: 600 millivolts to 600 volts
• Resistance Range: 600 ohms to 40 megaohms
• Frequency Range: 10 Hz to 50 kilohertz
• Current Measurement: 10 amps AC/DC
• Continuity Threshold: Less than 30 ohms
• Display: Black on white with backlight and digital bar graph
• Power Source: 2 AA batteries (included)
• Weight: 29.32 pounds
• Warranty: 5 years

Standard Information

• Brand: Milwaukee Electric Tool Corp
• Manufacturer Part Number: 2216-20
