Milwaukee 2206-20 Fork Meter for HVAC/R 200 A 1000 VAC/VDC

Product Description

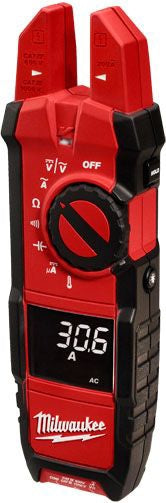

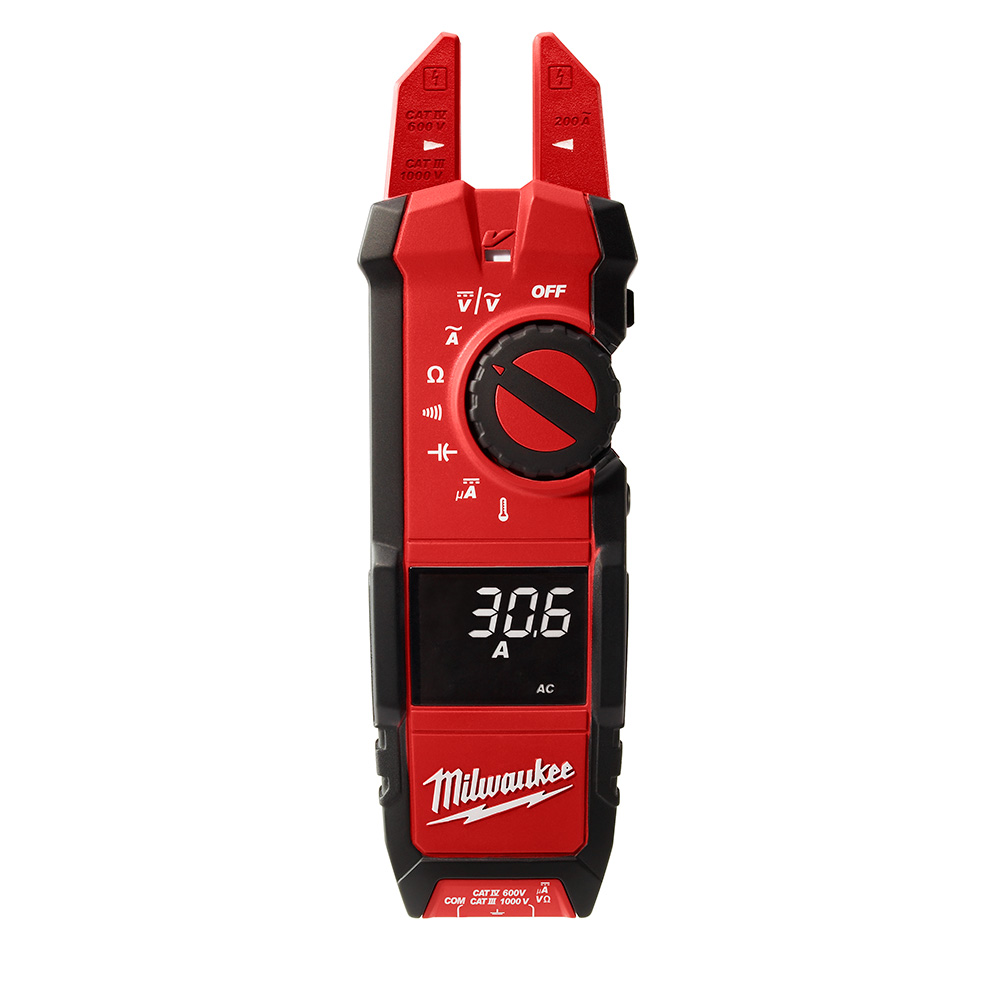

The Milwaukee fork meter, model 2206-20, is designed for HVAC/R professionals. This heavy duty True-RMS electrical tester combines five tools in one unit. It measures current, temperature, voltage, and features voltage detection and task lighting. The fork opening measures 0.63 inches, allowing it to handle larger wires, while it supports a high current range of 200 amps. Its high contrast display ensures easy readability.

• Measures up to 200 A with a wide 0.63 inch jaw opening.
• Wide voltage range from 1000 V AC/DC.
• True-RMS accuracy across all measurement applications.

Product Highlights

The Milwaukee fork meter enhances accuracy and efficiency for HVAC/R professionals, making it a vital tool in residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: Milwaukee Tool
• MPN: 2206-20

Technical Specifications

• AC Current Accuracy: +/- 2% +/- 5 Digits
• AC Response: True RMS
• Counts: 4000
• Dimensions: 8 inches length
• Operating Temperature: -40 to 752 degrees F
• Power Source: AA Alkaline Battery
• Electrical Ratings: 1000 VAC/VDC
• Safety Rating: CAT IV 600 V, CAT III 1000 V
• Jaw Capacity: 0.63 inches
• Weight: 1.12 lbs
