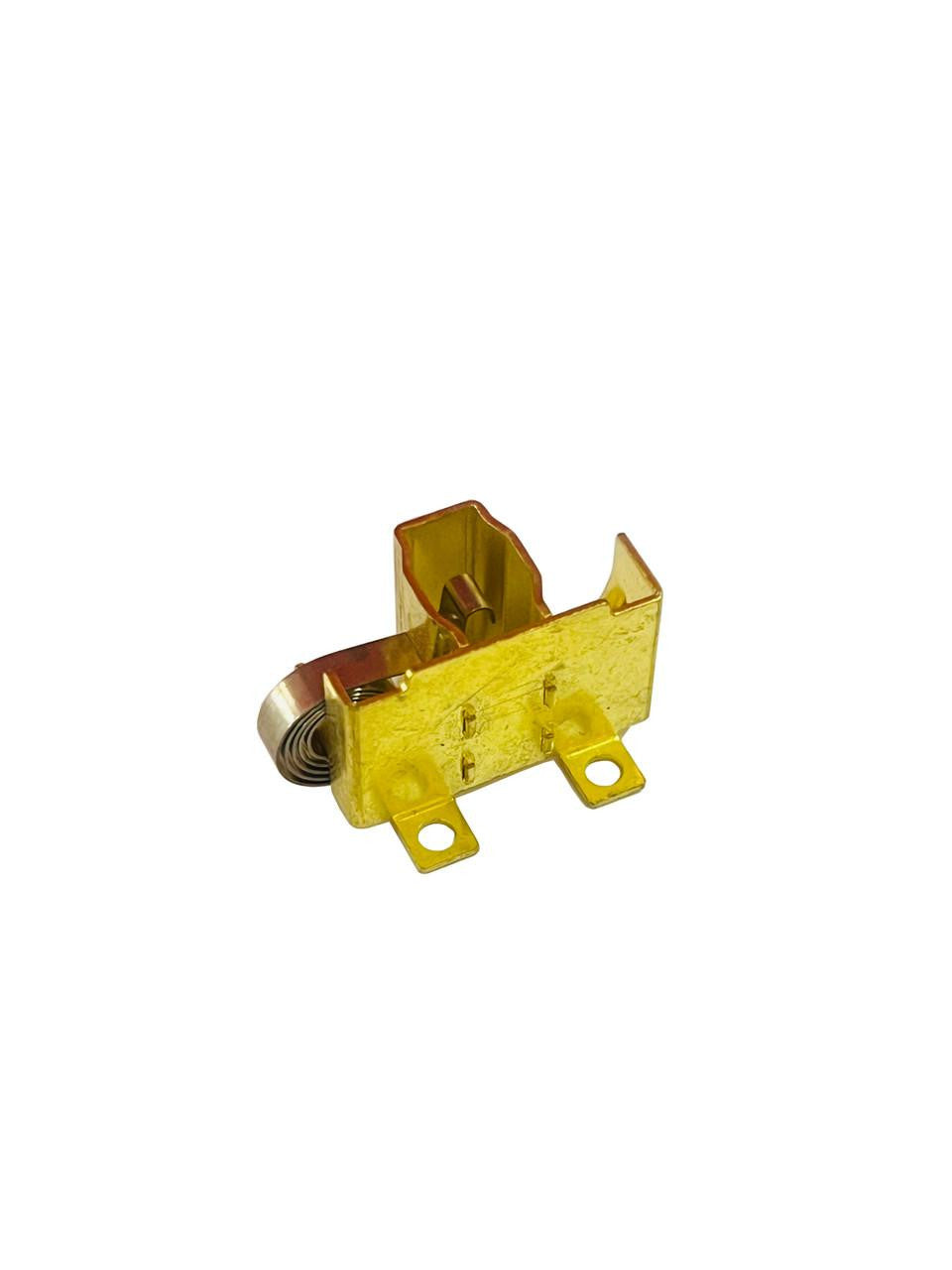

Milwaukee 22-20-0135 Brush Holder Assembly

Product Description

The MILWAUKEE 22-20-0135 is a brush holder assembly designed as a replacement component for compatible Milwaukee power tools. The brush holder retains the carbon brushes that maintain electrical contact with the motor armature, allowing the motor to receive current and operate correctly. When the brush holder is damaged, cracked, or fails to seat the brushes properly, motor performance degrades and the tool may cease to function. This part restores the original brush-retention geometry and ensures consistent brush contact pressure during operation.

This brush holder assembly is suited for Milwaukee power tools that use carbon-brush motors. It is a service part intended for repair and maintenance of field-worn or damaged units. Installation is typically performed by a qualified tool repair technician or a trade professional experienced in power tool servicing. Refer to the specific tool service manual to confirm fitment before installation.

Key Features

• Retains carbon brushes in proper alignment against the motor armature
• OEM-style replacement geometry for correct brush seating and pressure
• Direct-fit service part for brush-motor power tool repair
• Restores motor electrical continuity when the existing holder is cracked or worn

Compatibility

Designed as an OEM-style replacement brush holder assembly for compatible Milwaukee brush-motor power tools. Consult the Milwaukee parts diagram for the specific tool model to confirm this part number before ordering.

Installation Notes

Disconnect the tool from any power source and remove the battery pack before beginning disassembly. A qualified power tool repair technician should perform brush holder replacement, as the procedure requires access to internal motor components. Avoid forcing the brush holder into position; confirm proper orientation against the tool service diagram before securing. Retain and inspect existing carbon brushes for wear and replace them if they are below the minimum length specified in the tool service manual.

Technical Specifications

• Component Type: Brush Holder Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 22-20-0135
