Milwaukee 16-70-5010 Service Armature Assembly

Product Description

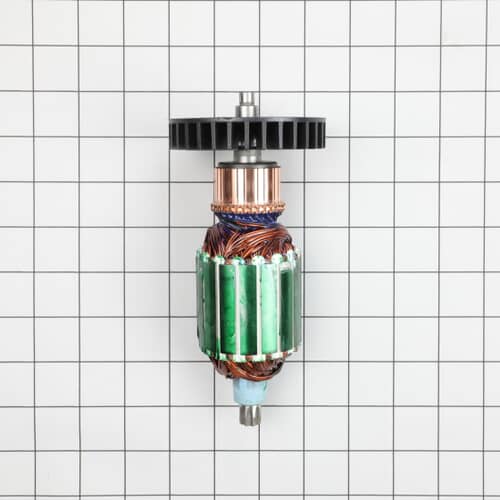

The MILWAUKEE 16-70-5010 is a service replacement armature assembly designed to restore full function to compatible Milwaukee power tools. The armature is the rotating core component of a universal or series-wound motor, converting electrical energy into mechanical rotation. When an armature fails due to burned windings, worn commutator surfaces, or physical damage, replacing the entire assembly is the standard repair path. This part is sourced as a Milwaukee genuine service component, maintaining original motor performance specifications.

This armature assembly is intended for use in Milwaukee power tools that share this motor configuration. It is installed by electricians, power tool repair technicians, and skilled trades professionals performing in-shop or field-level tool service. The assembly is a direct-fit service replacement, making it appropriate for warranty depot work and independent repair shops servicing Milwaukee equipment.

Key Features

• Genuine Milwaukee service replacement part for motor armature restoration
• Complete assembly replacement eliminates the need for individual component sourcing
• Designed to match original winding specifications and commutator geometry
• Suitable for professional repair depot and field service applications

Compatibility

Designed as a genuine OEM-style service replacement armature assembly for compatible Milwaukee power tools. No specific model numbers were provided in the available product data — consult Milwaukee service documentation or a Milwaukee-authorized repair depot to confirm fitment for your specific tool model.

Installation Notes

Armature replacement should be performed by a qualified power tool repair technician or licensed electrician familiar with universal motor service procedures. Always disconnect the tool from all power sources and discharge any residual energy before disassembly. Inspect the brush holders, field coils, and bearings during the service interval, as these components often show wear alongside a failed armature. Reassemble per Milwaukee service documentation to ensure correct commutator seating and brush contact.

Technical Specifications

• Component Type: Service Armature Assembly

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 16-70-5010
