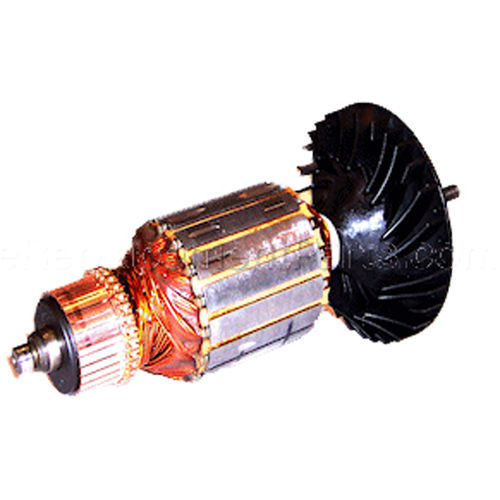

Milwaukee 16-70-0300 Armature 120 Volt

Product Description

The MILWAUKEE 16-70-0300 is a 120-volt armature designed as an OEM replacement component for Milwaukee power tools. The armature is the rotating core of the tool motor, converting electrical energy into mechanical motion. When a tool loses power, runs rough, or produces excessive sparks at the brushes, armature failure is a common cause. This part is intended for installation by qualified service technicians familiar with power tool motor disassembly and electrical safety procedures.

This armature is suited for use in Milwaukee electric power tools operating on standard 120-volt AC service. It fits into the motor assembly as a direct OEM-style replacement, restoring the tool to factory operating condition. Installation is typically performed at an authorized service center or by a technician experienced in power tool motor rebuilding.

Key Features

• Rated for 120-volt AC operation
• OEM replacement armature for Milwaukee power tools
• Designed to restore motor function after armature failure or wear
• Compatible with standard Milwaukee motor housings accepting this armature assembly

Compatibility

Designed as an OEM-style replacement armature for Milwaukee power tools requiring a 120-volt armature assembly. Consult the Milwaukee parts diagram for your specific tool model to confirm fitment before installation.

Installation Notes

Armature replacement should be performed by a qualified power tool service technician. Always disconnect the tool from the power source before disassembling the motor housing. Inspect brushes, bearings, and the commutator surface when replacing the armature, as worn secondary components can accelerate armature wear. Reassemble and test the tool in accordance with manufacturer service documentation.

Technical Specifications

• Voltage: 120 volts
• Component Type: Armature

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 16-70-0300
