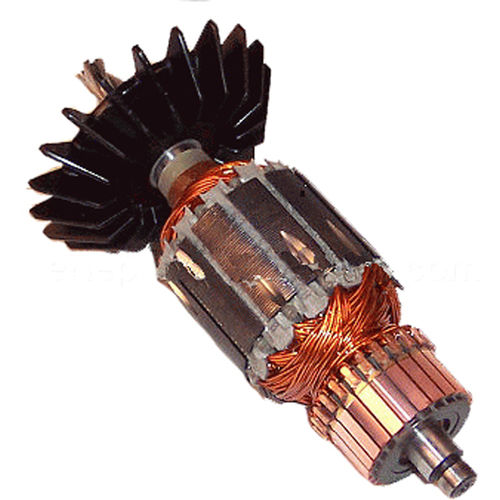

Milwaukee 16-30-0580 Service Armature

Product Description

The MILWAUKEE 16-30-0580 is a service replacement armature designed for use in Milwaukee power tools. The armature is the rotating electromagnetic component inside a universal or series-wound motor, converting electrical energy into mechanical rotation. When an armature fails due to wear, heat damage, or winding failure, the motor loses power or stops functioning entirely. Replacing the armature restores full motor output without requiring a complete tool replacement. This part is sourced directly from Milwaukee as a genuine service component.

This armature is intended for use in Milwaukee power tools requiring a service-level armature replacement. It is typically installed by professional tool repair technicians or electricians performing motor-level repairs in a shop or field service environment. The part is suited for applications where the original armature has shown symptoms such as reduced torque, excessive sparking at the brushes, overheating, or complete motor failure.

Key Features

• Genuine Milwaukee service replacement armature for motor restoration
• Designed to restore full motor output upon installation
• OEM-specification windings for proper electrical performance
• Direct drop-in fitment for compatible Milwaukee power tool models

Compatibility

Designed as an OEM-style service replacement armature for compatible Milwaukee power tool models. Refer to the Milwaukee service parts lookup or your tool model documentation to confirm fitment before ordering.

Installation Notes

Armature replacement should be performed by a qualified tool repair technician. Disconnect and unplug the tool completely before disassembly. Inspect the commutator, brushes, and bearing seats during service, and replace worn components as needed. Reassemble per Milwaukee service documentation to ensure proper brush seating and motor alignment.

Technical Specifications

• Part Type: Service Armature

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 16-30-0580
