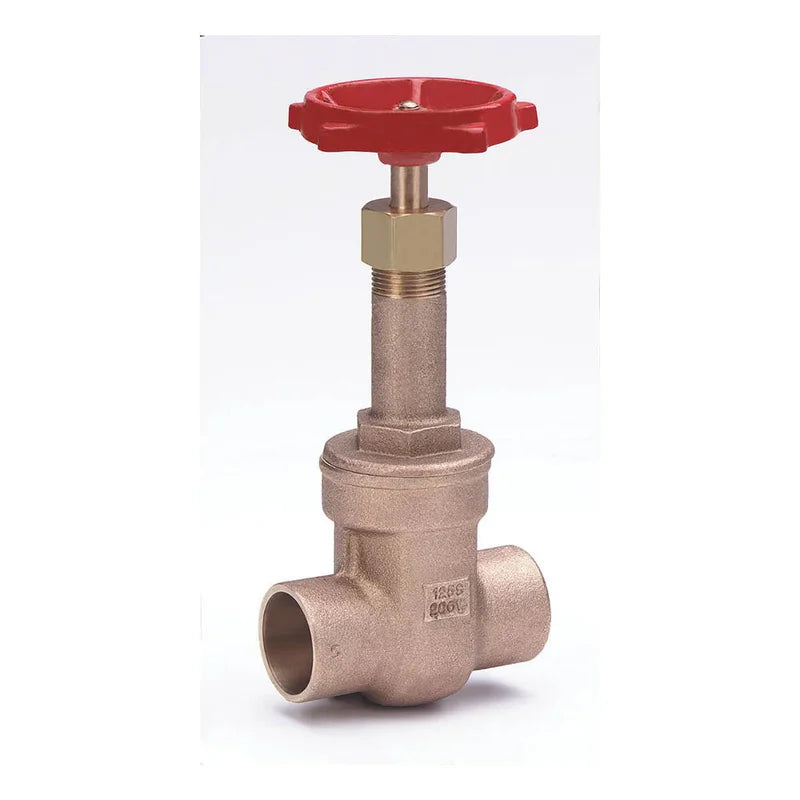

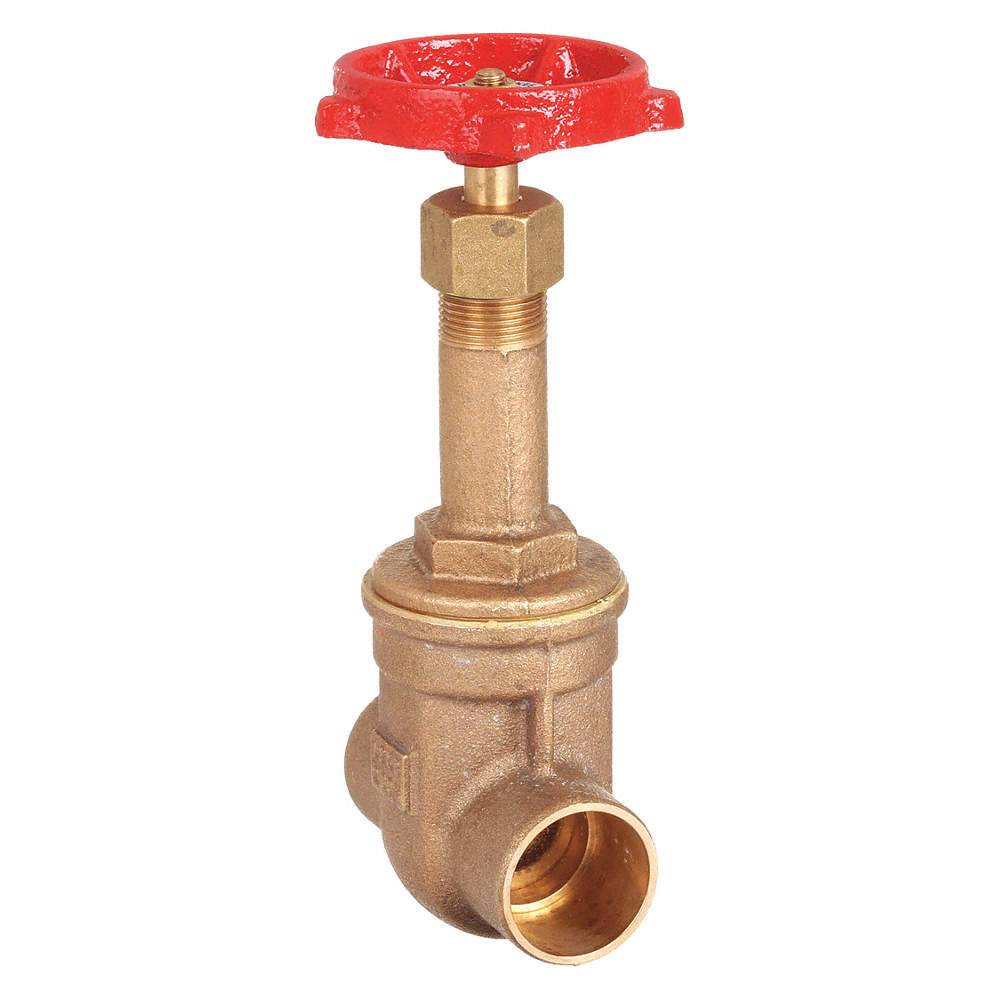

Milwaukee 149-34 Gate Valve, 3/4 in, Solder

Product Description

The MILWAUKEE 149-34 gate valve is designed for plumbing applications. It features a solder end style and is suitable for use with a pressure rating of 300 psi WOG. Constructed with a bronze body, the valve offers a rising stem and female National Pipe Taper threads on both ends.

• Low lead valve for potable water
• 300 WOG non-shock
• Rising stem

Product Highlights

The Milwaukee Valve 149-34 is ideal for plumbing and heating piping systems.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 149 - 34
• Country of Origin: United States

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Hand Wheel Diameter: 2-1/2 in
• Inlet to Outlet Length: 2-1/2 in
• Nominal Size: 3/4 In
• Pressure Rating: 300 psi WOG
• Series: UP149
• Softgoods Material: Graphite Packing
• Temperature Rating: 180 deg F
• Top to Inlet Center: 6-1/4 in
• Trim Material: Bronze
• Max. Working Steam Pressure - WSP: 125 PSI
• Valve Stem Type: Rising
• Bonnet Style: Threaded
• Handle Material: Malleable Iron
• Standards: MSS-SP--80
• Valve Class: Class 125
• Connection Type: Solder
• Max. Water Pressure - CWP: 200 PSI
• Valve Max. Fluid Temp.: 406 Degrees F
• Stem Material: Bronze
• Wedge Material: Bronze
• Handle Type: Hand Wheel
• Pressure Class: 125 lb
• Manufacturer Part Number: 149-34
