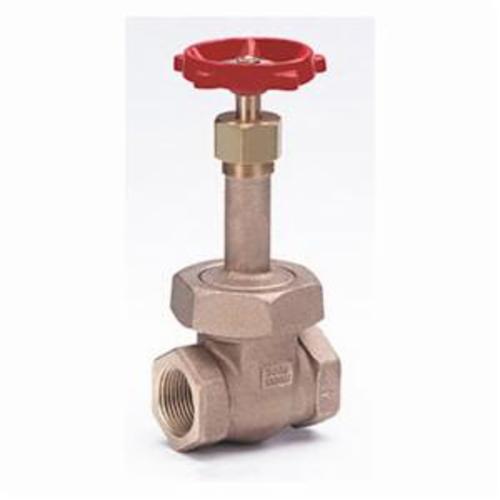

Milwaukee 1184 - 200 Gate Valve 2 in, FNPT, Bronze Body

Product Description

The Milwaukee Valve 1184-200 gate valve features a 2 inch FNPT connection, designed for a 1000 psi WOG pressure rating. It includes a handwheel actuator and measures 3-3/4 inches from inlet to outlet, with a 11-3/4 inch top to inlet center. The valve has a bronze body, bronze trim, and graphite packing softgoods.

• 300 SWP to 1000 WOG non-shock
• Solid wedge disc
• Rising stem

Product Highlights

Features a bronze body, handwheel actuator, and is designed for a 2 inch FNPT connection.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 1184 - 200

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Hand Wheel Diameter: 4-1/4 in
• Inlet to Outlet Length: 3-3/4 in
• Nominal Size: 2 In
• Pressure Rating: 1000 psi WOG
• Series: 1184
• Softgoods Material: Graphite Packing
• Top to Inlet Center: 11-3/4 in
• Trim Material: Bronze
