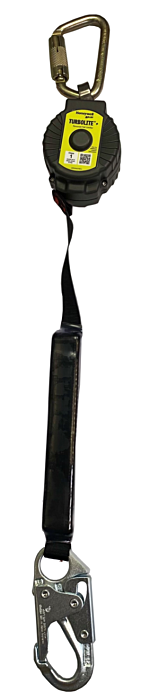

Miller mtl-ohw1-05/11ft Turbolite+ Fall Limiter 420 Lb 11 Ft

Product Description

The MILLER mtl-ohw1-05/11ft TurboLite+ is an 11-foot single-leg personal fall limiter built for continuous overhead fall protection. It features a quick-activating stainless steel braking system that arrests free falls within inches, keeping fall clearance requirements to a minimum. The Vectran lifeline resists twisting, and an integral swivel at the housing keeps the line from binding during movement. Rated to 420 lb, this unit accommodates a wide range of workers and tool loads. It terminates with a locking swivel snap hook for secure anchorage connection. Licensed contractors, safety-qualified riggers, and industrial tradespeople working at heights in construction, manufacturing, and utilities install and rely on this device.

The mtl-ohw1-05/11ft is designed for overhead anchorage applications where fall clearance is limited and continuous mobility is required. It suits industrial work environments including construction sites, manufacturing facilities, and utility installations where workers need reliable personal fall arrest without restricting range of motion. The single-leg configuration keeps the setup simple and keeps the worker connected to a single overhead anchor point throughout the task.

Key Features

• Quick-activating braking system arrests free falls within inches, reducing fall clearance requirements
• High-strength stainless steel braking mechanism for rapid, reliable fall arrest
• Integral swivel at the housing prevents lifeline twist during movement
• Vectran lifeline construction for high-strength, low-stretch performance
• 420 lb weight capacity accommodates workers and equipment loads
• Locking swivel snap hook provides a secure overhead anchorage connection

Compatibility

Designed as an OEM-style personal fall limiter for use with compatible overhead anchorage systems in industrial fall protection applications.

Installation Notes

Installation and inspection must be performed by a competent person as defined by applicable fall protection regulations including OSHA 29 CFR 1926.502 and ANSI Z359 standards. Before connecting, confirm the anchor point meets or exceeds the required load rating for personal fall arrest systems. Inspect the lifeline, snap hook, and housing for damage before each use and remove from service if any defect is found. Never connect the snap hook back to the lifeline itself or to a non-compatible anchor.

Technical Specifications

• Lifeline Length: 11 feet
• Weight Capacity: 420 lb
• Lifeline Material: Vectran
• Braking System Material: Stainless Steel
• Leg Configuration: Single Leg
• Connector Type: Locking Swivel Snap Hook
• Anchorage Orientation: Overhead

Standard Information

• Brand: MILLER
• Manufacturer Part Number: mtl-ohw1-05/11ft
