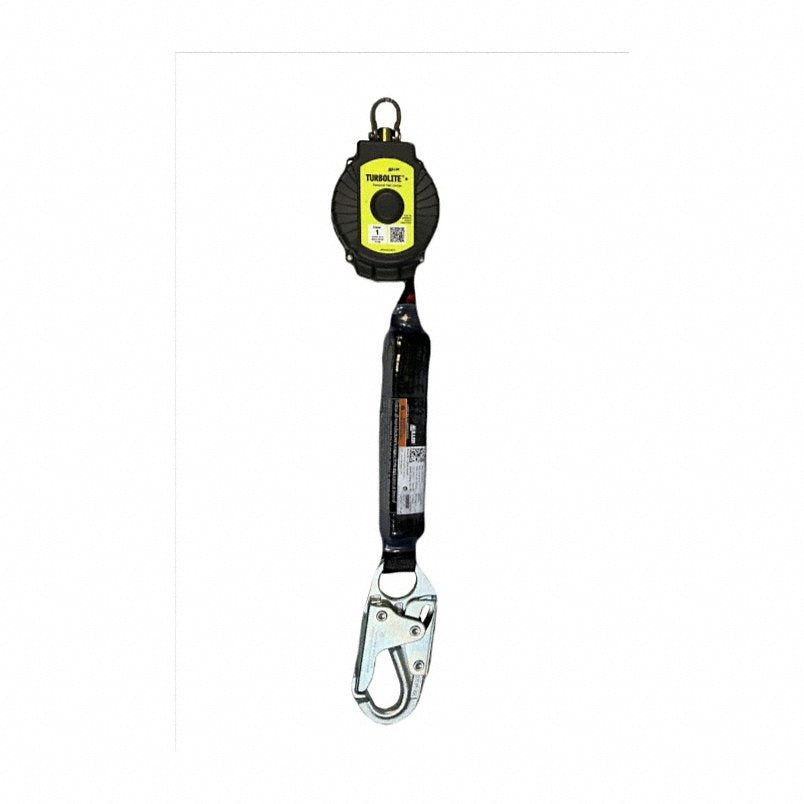

Miller mtl-ohw1-03/6ft Self-retracting Lifeline 420 Lb

Product Description

The MILLER mtl-ohw1-03/6ft is a personal self-retracting lifeline (SRL) from the TurboLite+ series, designed for overhead anchorage fall protection in occupational work environments. The unit features a 6-foot polyester lifeline with a steel snap hook at the anchor end and a nylon housing that connects directly to the worker's harness D-ring. Rated for a maximum weight capacity of 420 lb and a minimum user weight of 130 lb, it meets ANSI Z359.14-2021 Class 1 requirements. A built-in visual load indicator signals post-fall loading, and RFID capability supports inspection tracking and recordkeeping workflows.

This SRL is intended for use in residential, commercial, and industrial jobsites where workers operate in close proximity to an overhead anchor point. Its compact, personal-worn form factor makes it well suited for tasks such as roof work, structural steel erection, elevated platform work, and maintenance on elevated equipment. The self-rescue capability eliminates the need for a separate rescue device, which simplifies fall protection planning on smaller crews. Installers and safety coordinators in construction, general industry, and facility maintenance trades select this unit when a lightweight, portable, overhead-only SRL is required by the site fall protection plan.

Key Features

• 420 lb weight capacity with 130 lb minimum user weight requirement
• 6-foot polyester lifeline limits free-fall distance when anchored overhead
• Steel snap hook anchorage end provides secure overhead attachment
• Visual load indicator gives immediate post-fall status at a glance
• RFID equipped for digital inspection and asset tracking
• Self-rescue method rated — no secondary rescue device required
• Nylon SRL housing reduces overall carry weight for the worker

Compatibility

Designed for overhead anchorage use only, as specified by the anchorage location rating. Compatible with full-body harness systems where the SRL housing attaches to the worker's dorsal D-ring and the steel snap hook connects to a certified overhead anchor meeting ANSI Z359.14 and OSHA 1910.140 or OSHA 1926.502 requirements.

Installation Notes

Installation and inspection of fall protection equipment must be performed by a competent person as defined under OSHA 1926.502 and OSHA 1910.140. Power down or de-energize any equipment in the work area before attaching fall protection to anchor structures near electrical hazards. This unit is rated for overhead anchorage only — do not use in leading-edge, horizontal, or sub-anchor configurations. After any fall event, remove the unit from service immediately and inspect the visual load indicator before returning to use.

Technical Specifications

• Weight Capacity: 420 lb
• Minimum User Weight: 130 lb
• Lifeline Length: 6 ft
• Lifeline Material: Polyester
• Lifeline Width: 1 inch
• SRL Housing Material: Nylon
• Anchorage End: Steel Snap Hook
• Anchoring Location: Overhead Only
• Number of Legs: 1
• ANSI SRL Class (2021): Class 1
• ANSI Standards Met: ANSI Z359.14; ANSI Z359.14-2021
• OSHA Standards Met: OSHA 1910.140; OSHA 1926.502
• Other Standards: CSA Z259.2.2:2017
• RFID Equipped: Yes
• Visual Load Indicator: Yes
• Rescue Method: Self
• Brand and Series: MILLER BY PIP TurboLite+
• Country of Origin: Mexico (subject to change)

Standard Information

• Brand: MILLER
• Manufacturer Part Number: mtl-ohw1-03/6ft
