Miller Electric 907781 Fusion 185 Engine Driven Welder With 13.4 hp

Product Description

The Miller Electric Fusion 185, MPN 907781, delivers a smooth, stable arc with PowerShift technology utilizing either engine power or 120/240-volt utility power. This provides a unique combination of versatility and productivity in a lightweight package. The Fusion 185 is a 185 amp DC stick welder/generator.

• PowerShift technology provides weld capabilities using either the Fusion 185's Kohler gasoline engine or 120/240-volt utility power.
• Inverter technology delivers a smooth, stable stick arc that is forgiving of variations in arc length and travel speed.

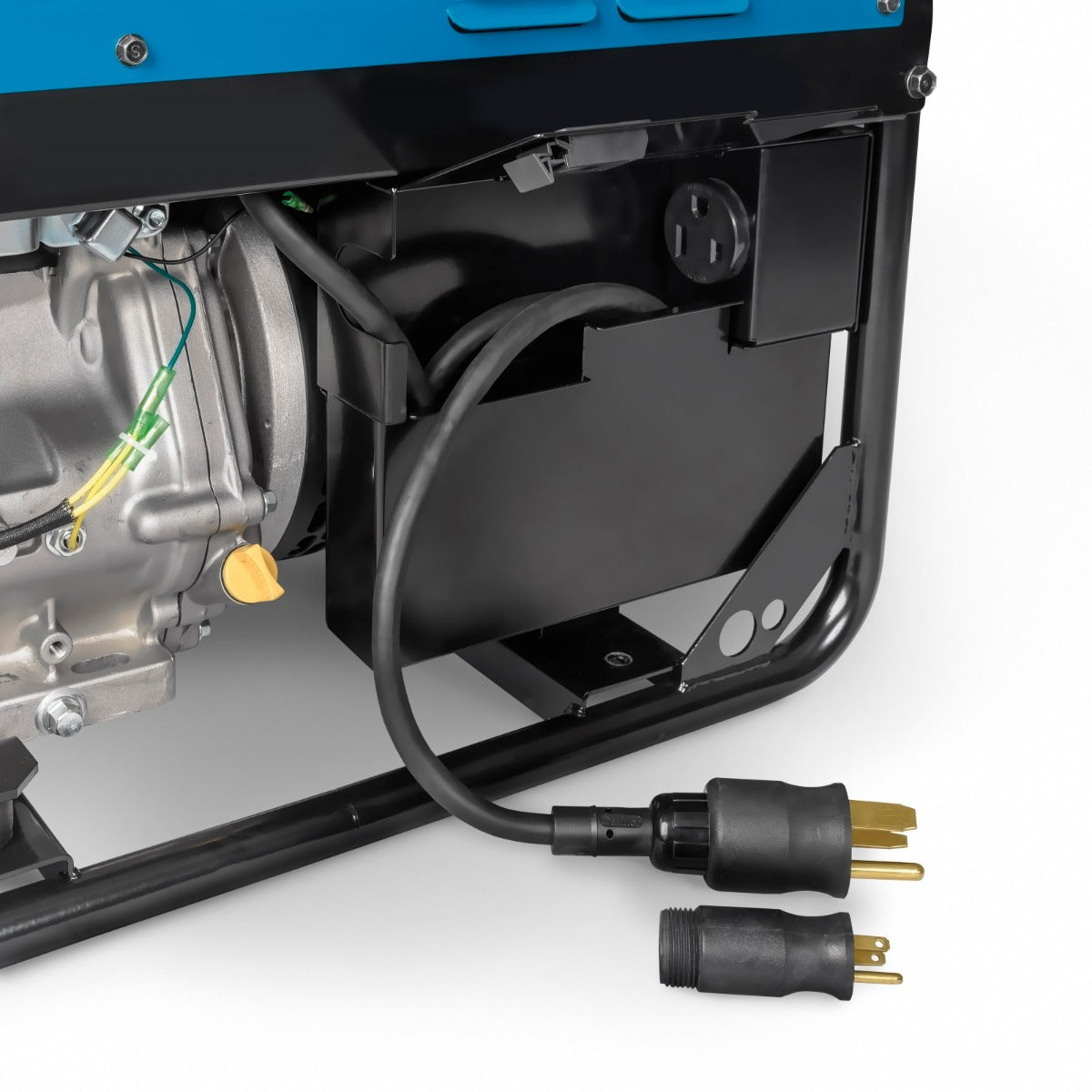

• The multi-voltage plug (MVP) makes it easy to connect the welder to either 120- or 240-volt power.

Product Highlights

This welder/generator weighs 242 pounds and has a large 6.25-gallon fuel capacity for extended run time. It also features electric start with recoil backup and standard auto idle.

Product Information

Standard Information

• Brand: MILLER ELECTRIC
• Manufacturer Part Number: 907781

Technical Specifications

• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons
• 6500 Watt Generator: Peak: 6,500 watts Continuous: 6,200 watts 120/240 VAC, 40/26 A
• Input Voltage: 110/115/120 V 220/230/240 V
• Rated Output: 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle
• Weld Output: CC
• Processes: Stick (SMAW) Air plasma cutting and gouging with optional Spectrum models
• Designed For: Farm and Ranch Construction and Fabrication Construction Maintenance and repair Farm/ranch applications Service trucks
• Amperage: 30 A - 185 A
• Weldable Metals: Steel
• Portability: Lift Eye (Optional) Running Gear / Cart (Optional)
• Engine Brand: Kohler
• Engine Idle Speed: 2500 RPM
• Engine Weld Speed: 3,600
• Fuel Type: Gasoline
• Horsepower: 13.4 hp
• Single Phase Auxiliary Continuous Power: 6200 W
• Single Phase Auxiliary Peak Power: 6500 W
• Brand: Miller Electric
• Overall Depth: 31.25 in
• Overall Height: 24.75 in
• Overall Width: 20.13 in
• Product Type: Engine Drive Welder
• Stick Welding Maximum Output Current: 185 A
• Stick Welding Minimum Output Current: 30 A
• Continuous Auxiliary Power: 6,200 W
• MFG: 907781
• Peak Auxiliary Power: 6,500 W
• UNSPSC: 23271400
