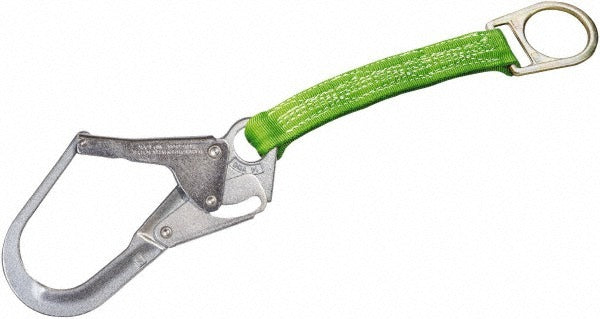

Miller 480-Z7/19INGN Rebar Hook Anchor Fixed D-ring

Product Description

The MILLER 480-Z7/19INGN is a fixed D-ring rebar hook anchor designed for temporary fall protection tie-off points on construction and reinforced concrete work sites. Constructed from a combination of steel and polyester, this anchor hooks directly onto rebar to create a secure overhead attachment point. It supports a rated capacity of 400 pounds and measures approximately 19 inches in length with a 2.4-inch eye length. Licensed contractors and safety-qualified workers performing concrete forming, rebar placement, or elevated structural work rely on this type of anchor to establish compliant anchorage before positioning.

This rebar hook anchor is suited for temporary fall arrest applications on residential and commercial construction sites where rebar is present and accessible. It is typically used during concrete pours, form work, and structural steel placement where a permanent anchor is not yet installed. The fixed D-ring connection point accepts standard snap hooks and carabiners that meet ANSI Z359 or OSHA 1926 Subpart M requirements. Installers working in construction trades and safety rigging roles will find this anchor appropriate for single-person tie-off at exposed leading edges and elevated work positions.

Key Features

• Fixed D-ring connection provides a stable, non-rotating tie-off point
• Hooks directly onto rebar for fast, tool-free temporary anchorage
• 400-pound capacity rating suitable for single-person fall arrest systems
• Steel and polyester construction balances strength with corrosion resistance
• Compact package dimensions allow easy carry and on-site storage

Compatibility

Designed as a temporary rebar hook anchor compatible with standard fall protection lanyards, self-retracting lifelines, and connectors that accept a D-ring attachment point meeting applicable ANSI or OSHA anchorage standards.

Installation Notes

Installation should be performed by a competent person as defined under OSHA 29 CFR 1926 Subpart M fall protection regulations. Before attaching the anchor, confirm the rebar diameter and orientation are adequate to support the intended load without movement or pull-out. Inspect the anchor for damage, deformation, or wear before each use, and remove from service immediately if any defect is found. This is a temporary anchor only and must not be used as a permanent structural connection.
