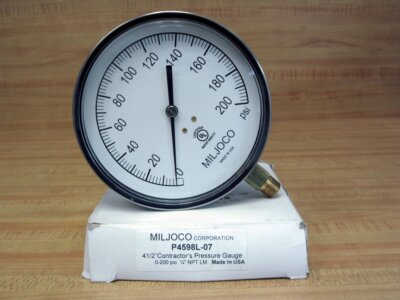

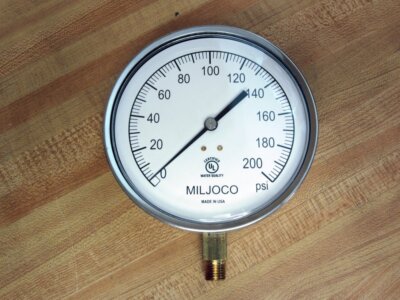

Miljoco P4598L07 4-1/2 Stainless Steel Lower Mount Pressure Gauge

Product Description

The Miljoco P4598L07 is a four and one-half inch pressure gauge designed for HVAC and building applications. It features a durable stainless steel case and ring. This gauge can be used with air, glycol solutions, and gas. The high-temperature solder joints on the tube and socket allow it to handle process fluids up to 200 degrees Fahrenheit.

• 4-1/2 inch dial size
• 1/4 NPT bottom outlet connection
• Accuracy of ±1% full scale

Product Highlights

This gauge meets industry standards for precision.

Product Information

Standard Information

• Manufacturer: Miljoco
• MPN: P4598L07

Technical Specifications

• Category: Controls & Indicators
• Subcategory: Pressure Gauge
• Connection: 1/4 NPT bottom outlet
• Process Temperature: -40 to 250 degrees Fahrenheit
• Ambient Temperature: -40 to 140 degrees Fahrenheit
• Case Material: AISI/SAE 300 series stainless steel
• Lens: Acrylic
• Dial Material: Aluminum with black markings
• Pointer: Black, adjustable aluminum
• Movement: Brass with precision-milled teeth
• Bourdon Tube: Phosphor bronze
