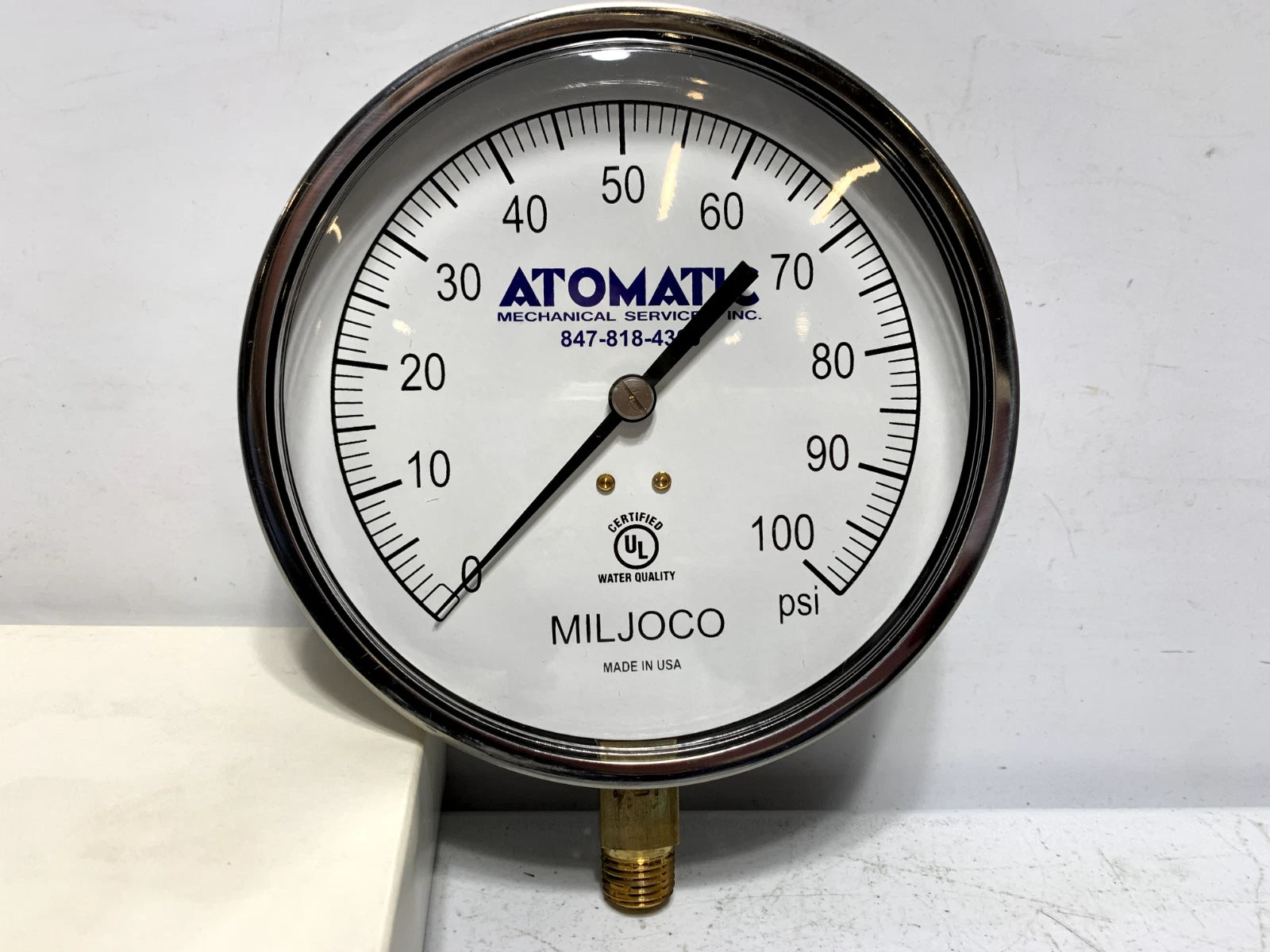

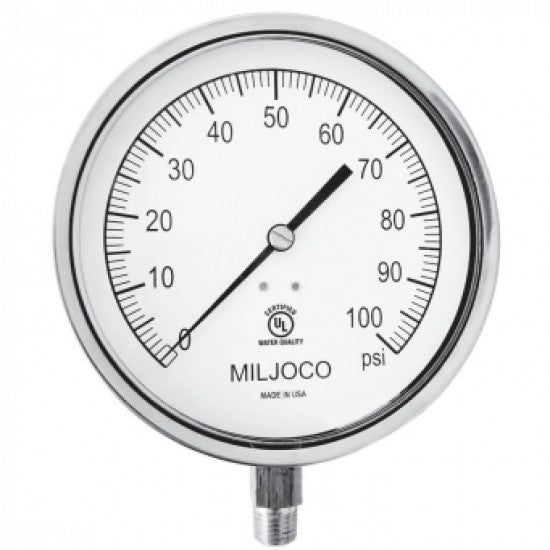

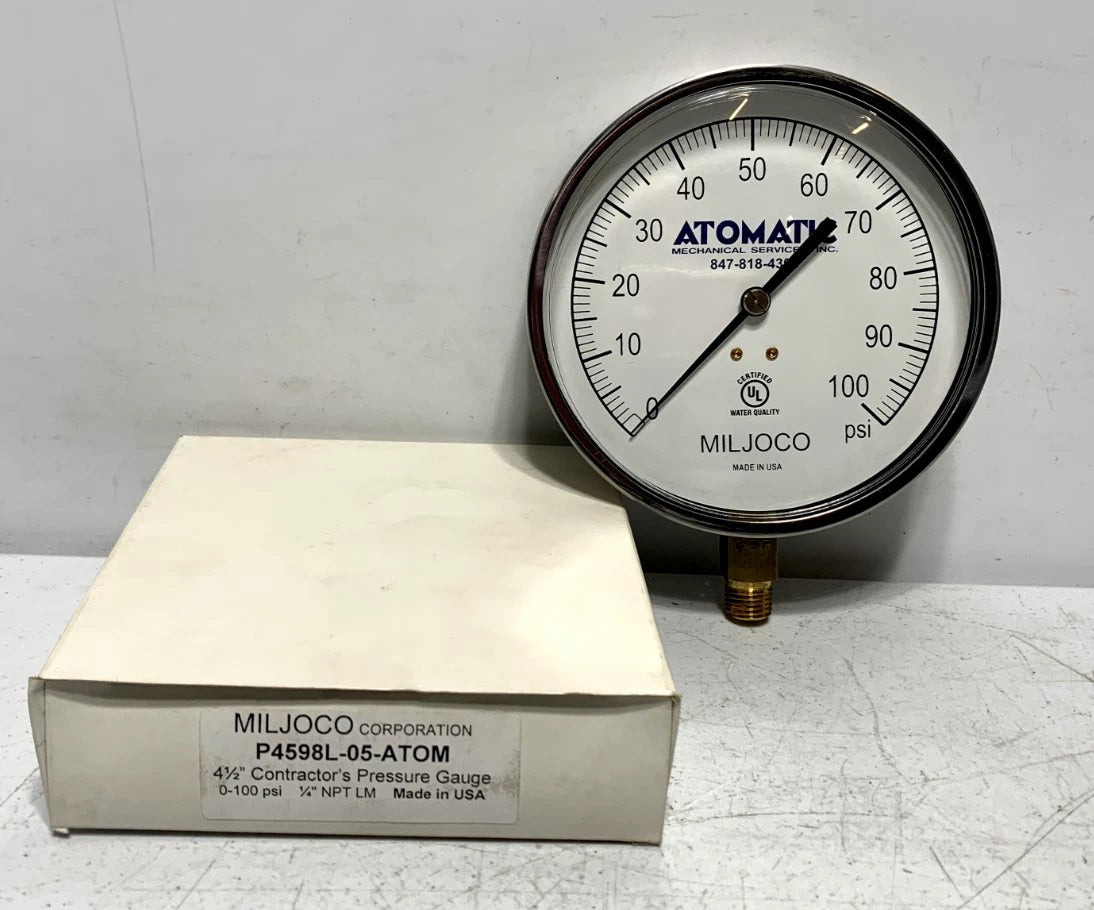

MILJOCO P4598L05 Pressure Gauge 0-100 PSI 1/4 NPT Bottom Mount

Product Description

The MILJOCO P4598L05 is a reliable pressure gauge suitable for various commercial and HVAC applications. This device has a diameter of four and a half inches and measures pressure accurately from zero to one hundred psi. It features a quarter-inch NPT bottom mount connection, providing ease of installation and use.

• 4-1/2 inch diameter face.
• Measures pressure from 0 to 100 psi.
• 1/4 NPT bottom connection.

Product Highlights

This pressure gauge is built with a stainless steel case and ring, ensuring durability and longevity. Its acrylic lens provides clear visibility, while the aluminum dial features black markings for easy reading.

Product Information

Standard Information

• Brand: MILJOCO
• MPN: P4598L05

Technical Specifications

• Application: Commercial, HVAC
• Diameter: 4-1/2 inches
• End Connection: NPT
• Connection Diameter: 1/4 inches
• Installation Type: Bottom Mount
• Material: Stainless Steel, Acrylic, Brass, Phosphor Bronze
• Maximum Temperature: 250°F
• Maximum Pressure: 100 psi
• Accuracy: ±1% Full Scale
