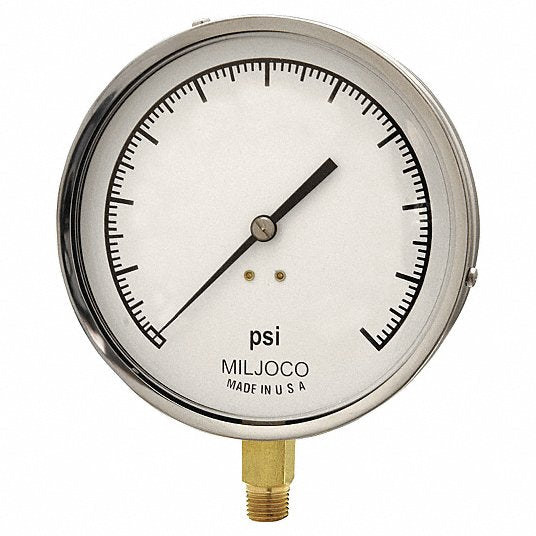

MILJOCO P4598L04 Contractor's Pressure Gauge 4-1/2

Product Description

The MILJOCO P4598L04 is a Contractor's Pressure Gauge suited for HVAC and building trades. This gauge is built with a stainless steel case and ring that enhance durability. It can handle process fluids at temperatures up to two hundred degrees Fahrenheit. The gauge can measure air, glycol solutions, and gas. It is UL certified according to NSF/ANSI Standards 61 and 372, confirming its safety for use in potable and drinking water systems. For steam applications, installation of a coil syphon is necessary.

• Stainless steel construction for durability
• Compatible with air, glycol solutions, and gas
• UL certified for safe use with drinking water

Product Highlights

This gauge’s design includes high-temperature solder joints, ensuring reliability in various conditions.

Product Information

Standard Information

• Brand: MILJOCO
• MPN: P4598L04

Technical Specifications

• Face Diameter: 4.5 inches (114.3 mm)
• Connection Diameter: 1/4 inches
• Mounting Position: Side/Bottom Mount
• Maximum Pressure: 60 psi (4.1 bar)
• Accuracy: ±1% Full Scale (ASME B40.100 Grade 1A)
• Process Temperature: -40 to 200°F (-40 to 93°C)
• Ambient Temperature: -40 to 140°F (-40 to 60°C)
• Connection: 1/4 NPT bottom outlet
• Dial: Aluminum, white finished with black markings
• Pointer: Aluminum, black, adjustable
• Movement: Brass with precision-milled teeth
• Tube: Phosphor-bronze
• Socket: Lead-Free Brass
