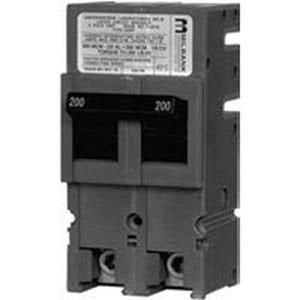

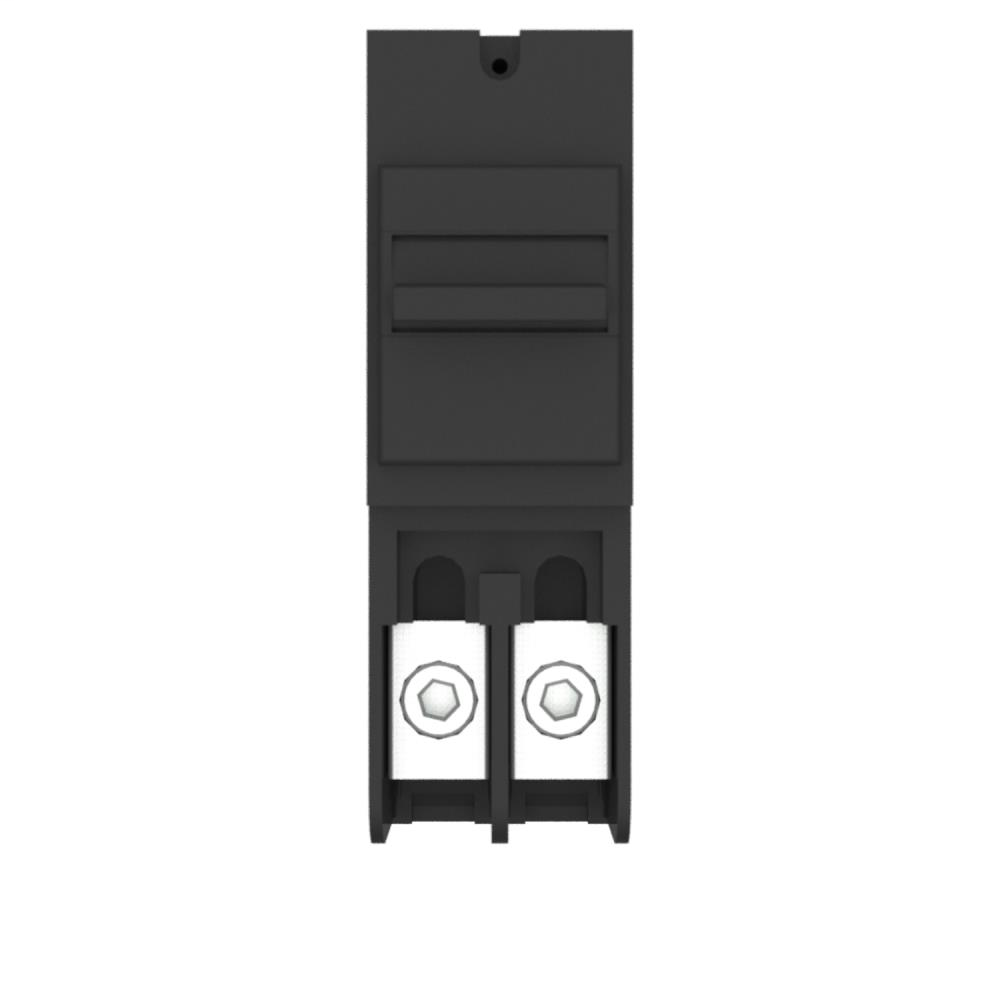

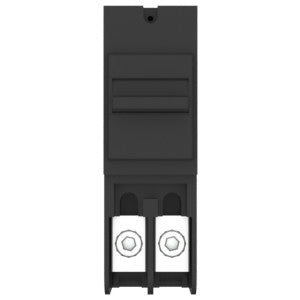

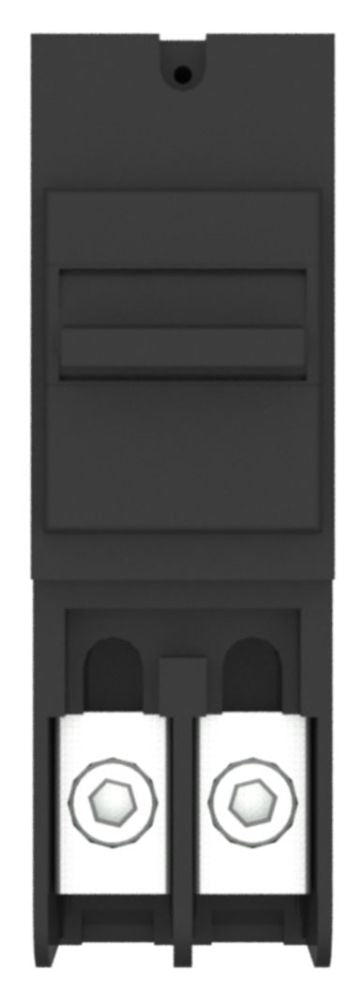

Milbank WBJ2200 200A 2P 120-240V Plug-In 10K AIC

Product Description

The MILBANK WBJ2200 is a 200A 2P 120-240V plug-in device with a 10K AIC. This current interrupting device features a non-metallic construction and is designed as a metering accessory. It operates at 240 VAC, 200 A, 1-Phase, and 60 Hz, suitable for various applications.

• Centered handle location
• Interrupt current rating of 10 Kilo-Amps
• Has voltage rating of 240 Volts

Product Highlights

Designed for plug-in mounting, this device offers reliable thermal magnetic trip functionality and a lever actuator for ease of use.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: WBJ2200
• Country of Origin: USA

Technical Specifications

• Brand: Milbank
• Manufacturer: Milbank Manufacturing
• Product Type: CIRCUIT_BREAKER
• Actuator: Lever
• Amperage: 200 Amp
• Applications: Metering Accessory
• Connection Type: Bus To Lug
• Current: 200 Amp
• Frame: Small Frame
• Frequency: 60 Hz
• Interrupt Rating: 10 kAIC
• Material: Non-Metal
• Number of Phases: 1 Phase
• Number of Poles: 2 Pole
• Operating Temperature: 40 degrees C
• Standard: UL Listed
• Trip Type: Thermal Magnetic
• Type: Current Interrupting Device
• Voltage: 240 Volt
• Height: 6.285 Inch
• Length: 2.997 Inch
• Width: 2 in
• Catalog Number: WBJ2200
• Country of Origin: USA
• Current Rating: 200 A
• Height [Metric]: 15.9639 cm
• Length [Metric]: 7.6124 cm
• Voltage Rating: 240 V
• Width [Metric]: 5.0800 cm
• Specifications: 240 VAC, 200 A, 1-Phase, 60 Hz
• UNSPSC: 39121601
• Mounting Type: Plug-On
