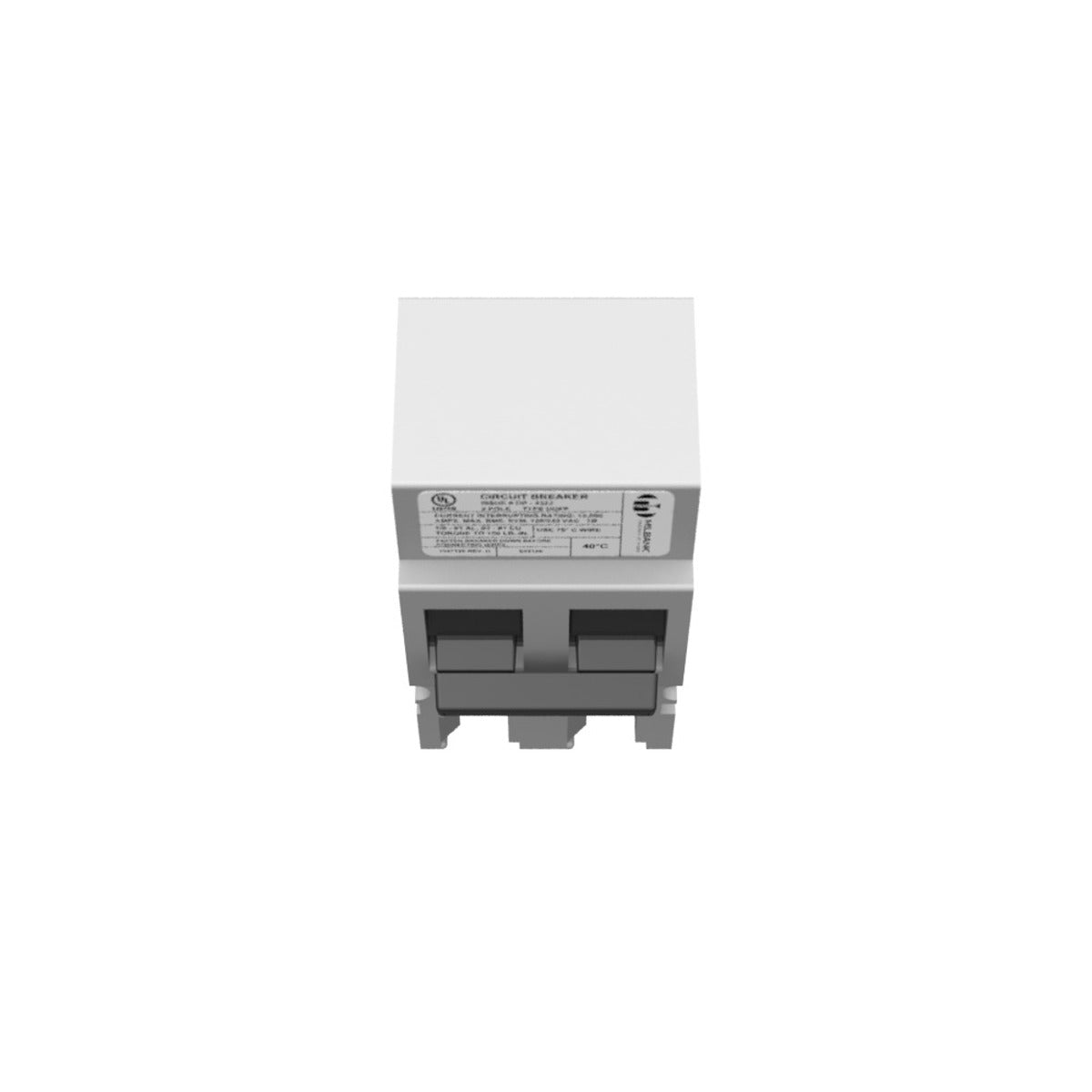

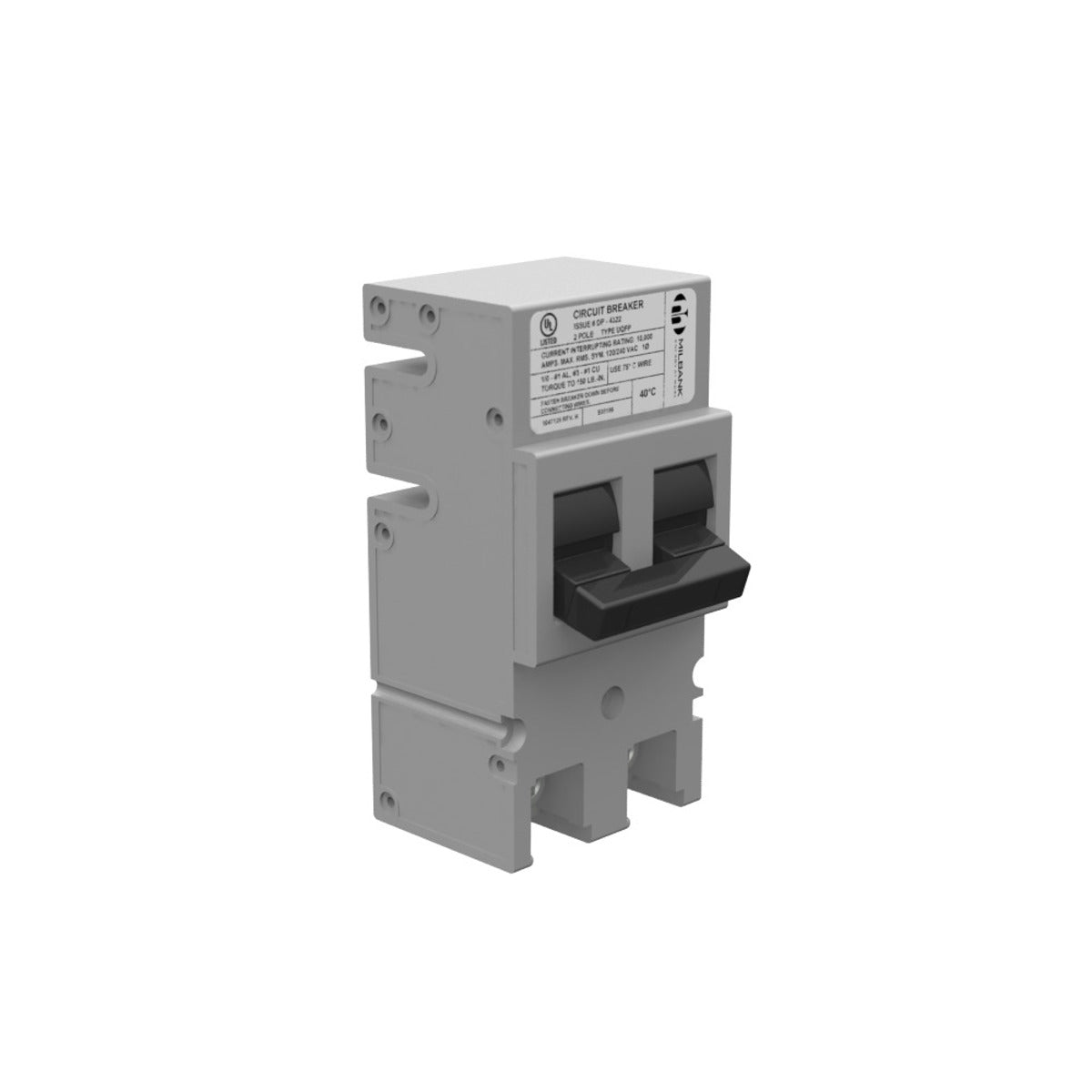

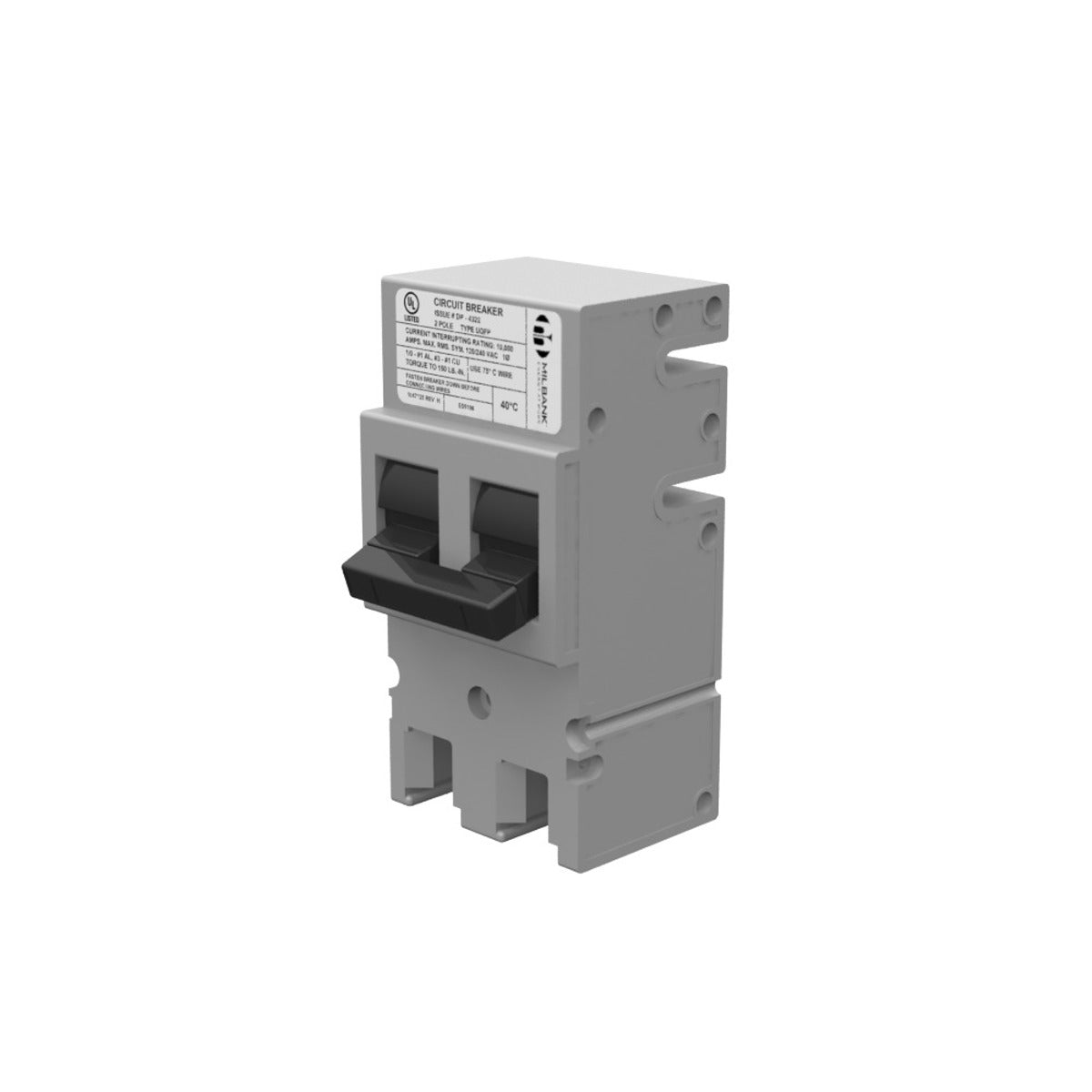

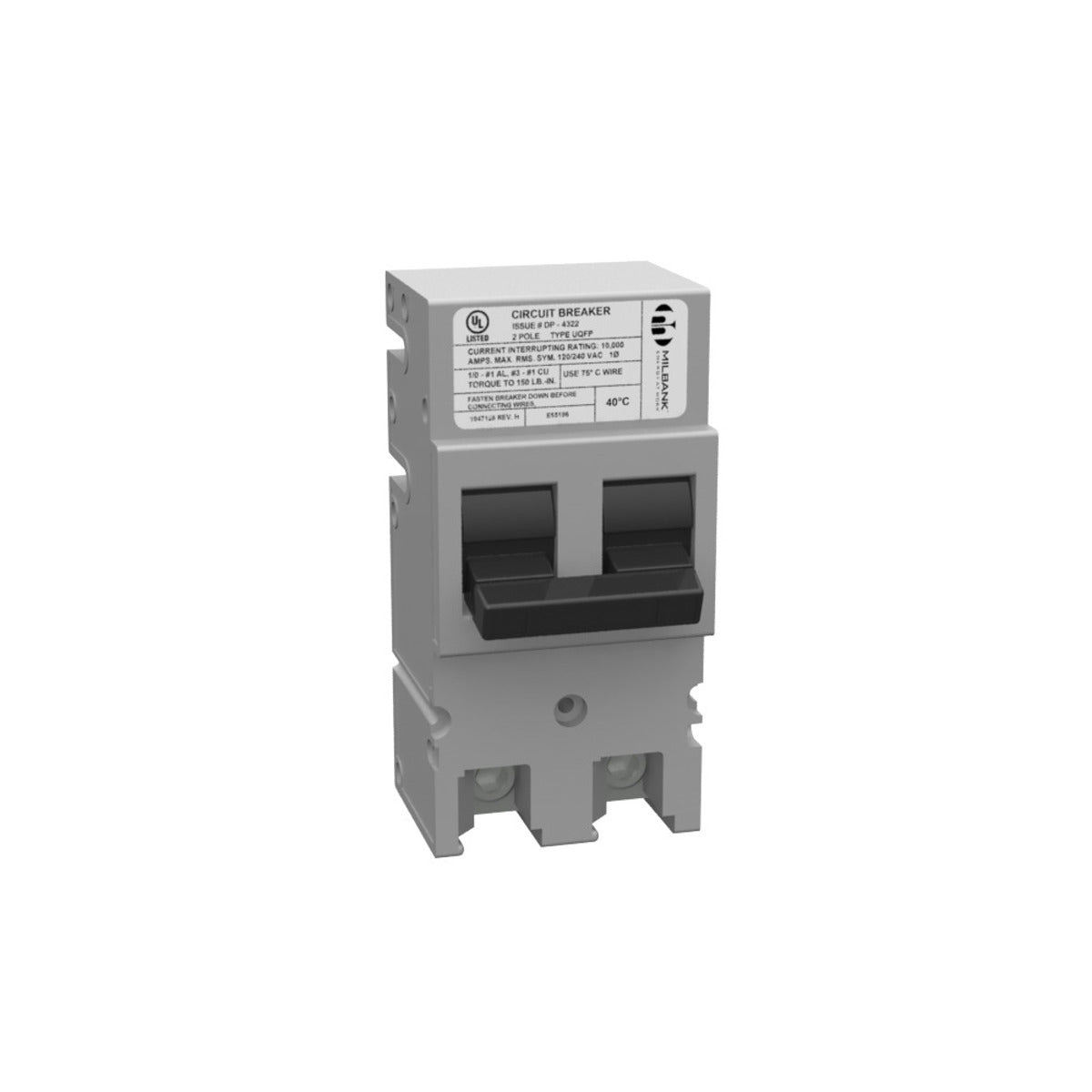

Milbank UQFP-200 UQFP Current Interrupting Plug On Circuit Breaker 240 VAC 200 Amp 10 kAIC 2 Poles

Product Description

Milbank UQFP-200 is a current interrupting plug-on circuit breaker rated for two hundred amps at two hundred forty volts AC. This breaker operates at a frequency of sixty hertz and provides a thermal magnetic trip, making it suitable for various electrical applications. The device features two poles and has an interrupting capacity of ten thousand amperes. It is designed for easy installation.

• Rated for 240 VAC.
• Has a thermal magnetic trip.
• Compact size makes it easy to fit in various panel boards.

Product Highlights

The Milbank UQFP-200 is UL listed and designed for heavy-duty applications. It is perfect for residential and commercial distribution systems.

Product Information

Standard Information

• Brand: Milbank
• MPN: UQFP-200

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic
• Frequency Rating: 60 Hz
• Number of Poles: 2
• Material: Non Metallic
• Dimensions: 6.063 inches Height x 3 inches Width x 3.281 inches Length
