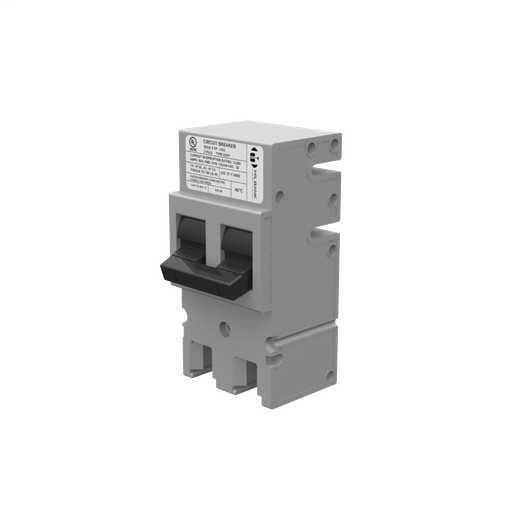

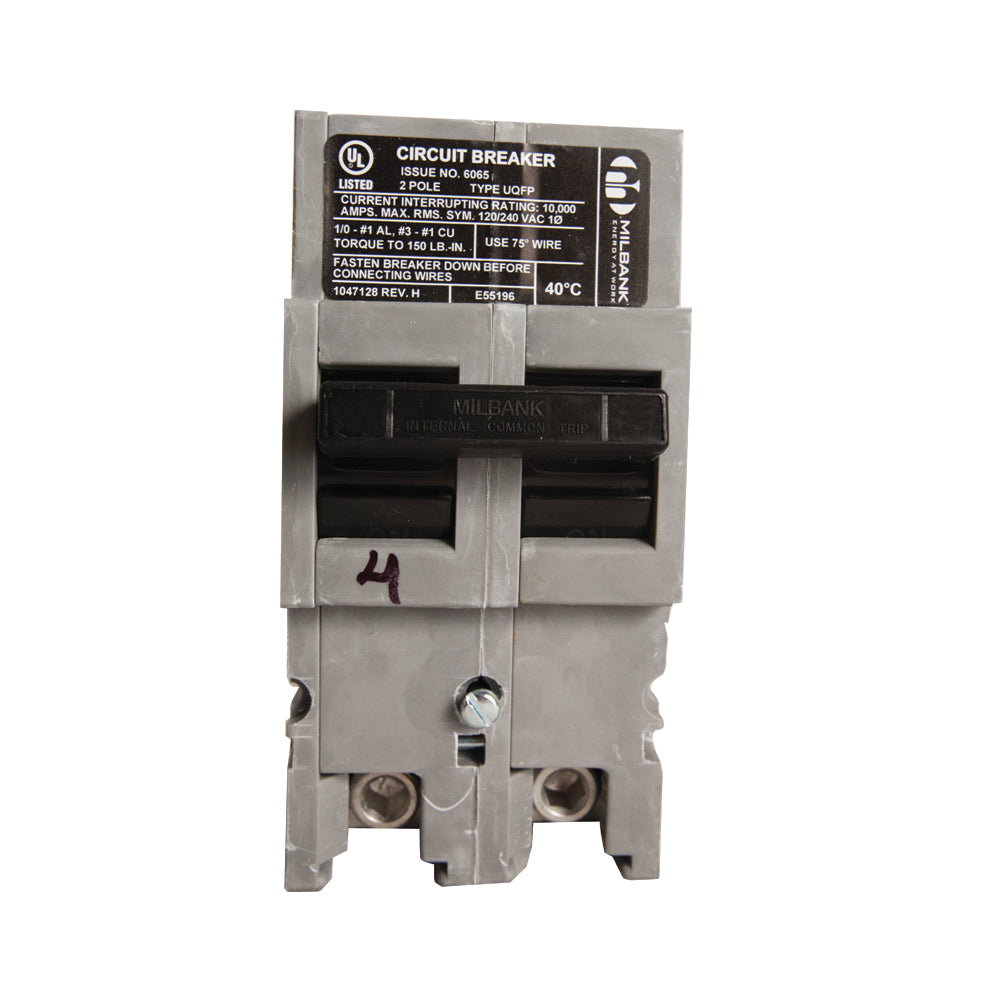

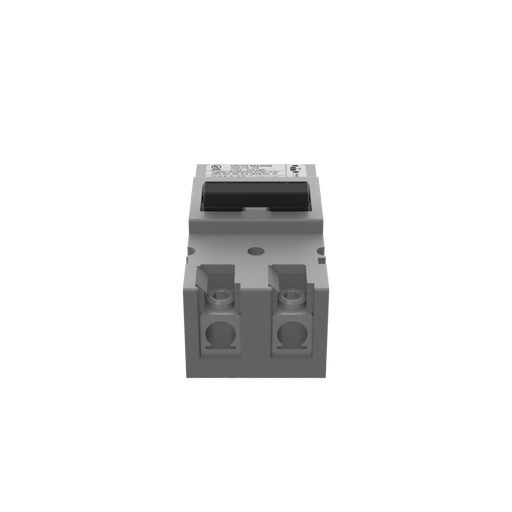

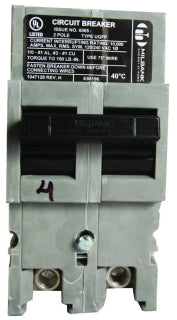

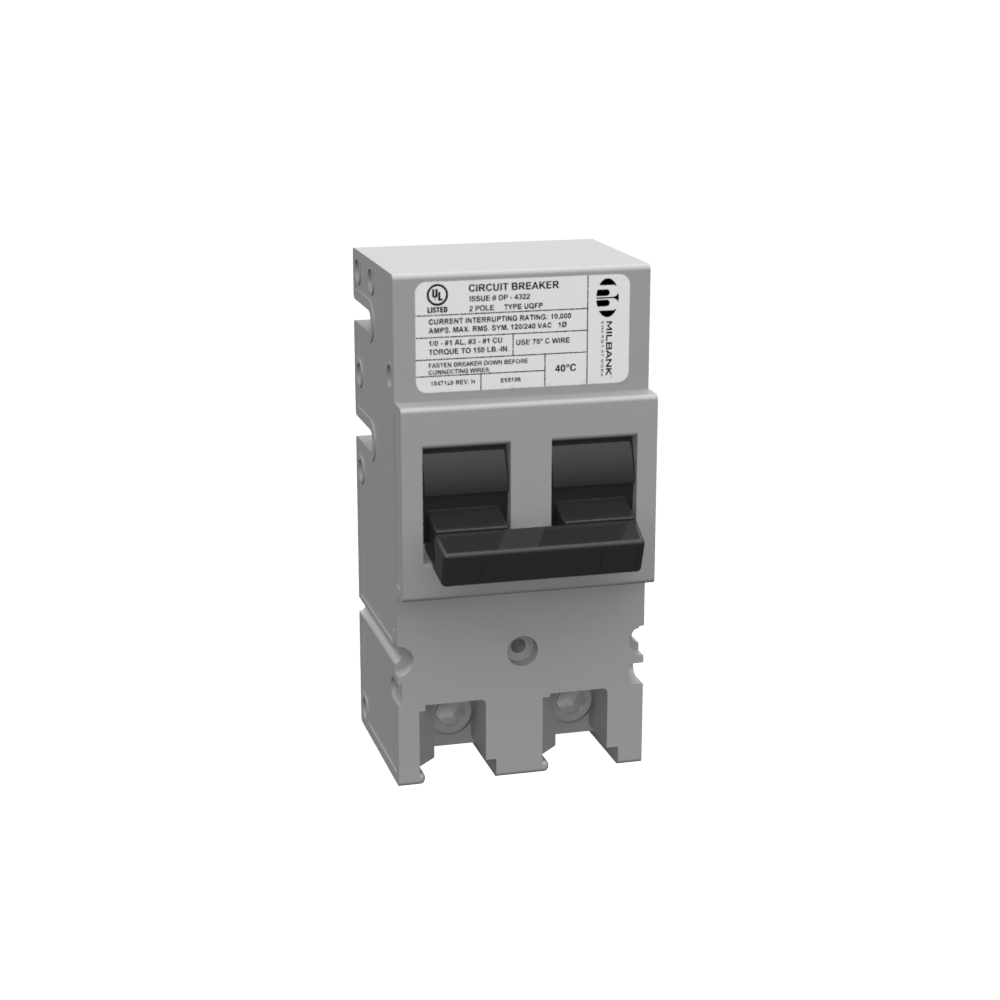

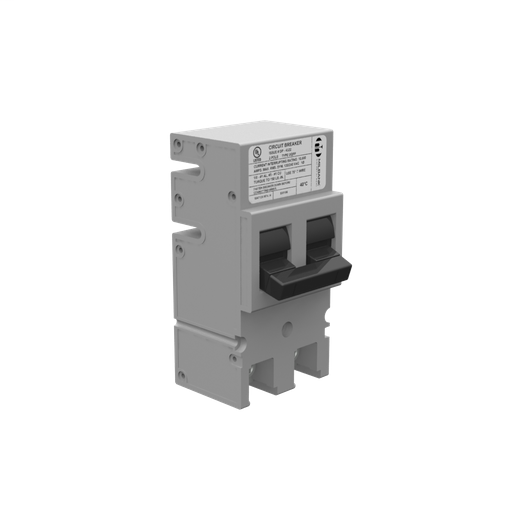

Milbank UQFP-175 175 Ampere 2 Pole 240 Volt Plug-in 10k Ampere Interrupting Capacity

Product Description

Milbank UQFP-175 is a 175 Ampere, 2 Pole, 240 Volt plug-in circuit breaker designed for electrical safety and efficiency. This circuit breaker has a ten kiloampere interrupting capacity and is built with a thermal-magnetic trip type. The UQFP-175 is suitable for single-phase systems and is UL listed for safety compliance.

• 175 Ampere current rating
• 240 Volt maximum AC voltage rating
• UL listed for compliance

Product Highlights

This circuit breaker is a reliable choice for various electrical applications, featuring a compact design and easy installation by plugging into compatible load centers.

Product Information

Standard Information

• Brand: Milbank Manufacturing
• Manufacturer: Milbank Mfg. Co.

Technical Specifications

• MPN: UQFP-175
• Type: Common Trip
• Current Rating: 175 Amp
• Voltage Rating: 240 Volt
• Number of Poles: 2
• Interrupting Rating: 10 kAIC
• Operating Temperature: 40 degrees C
• Material: Non-Metal
• Connection Type: Bus To Lug
• Frequency: 60 Hz
