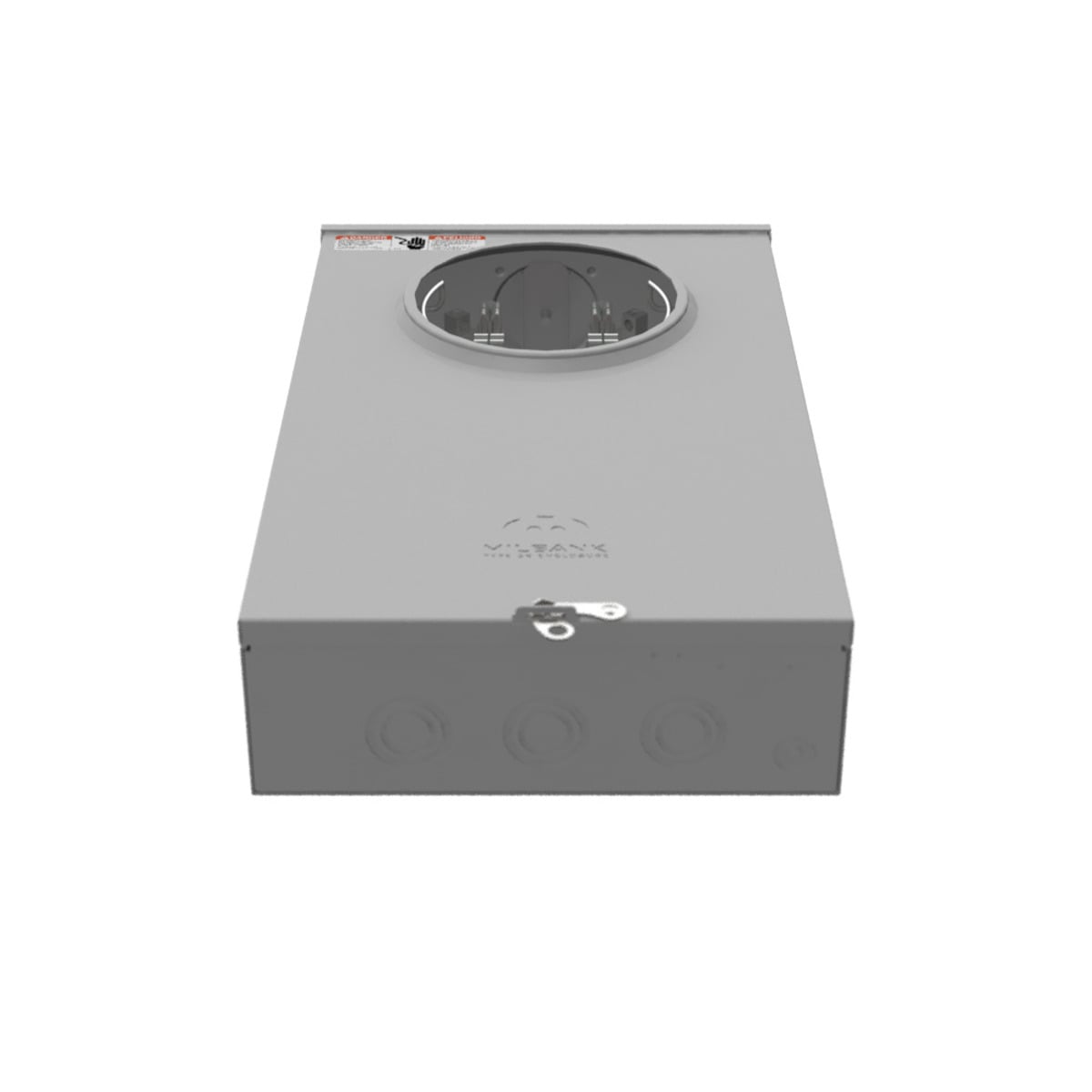

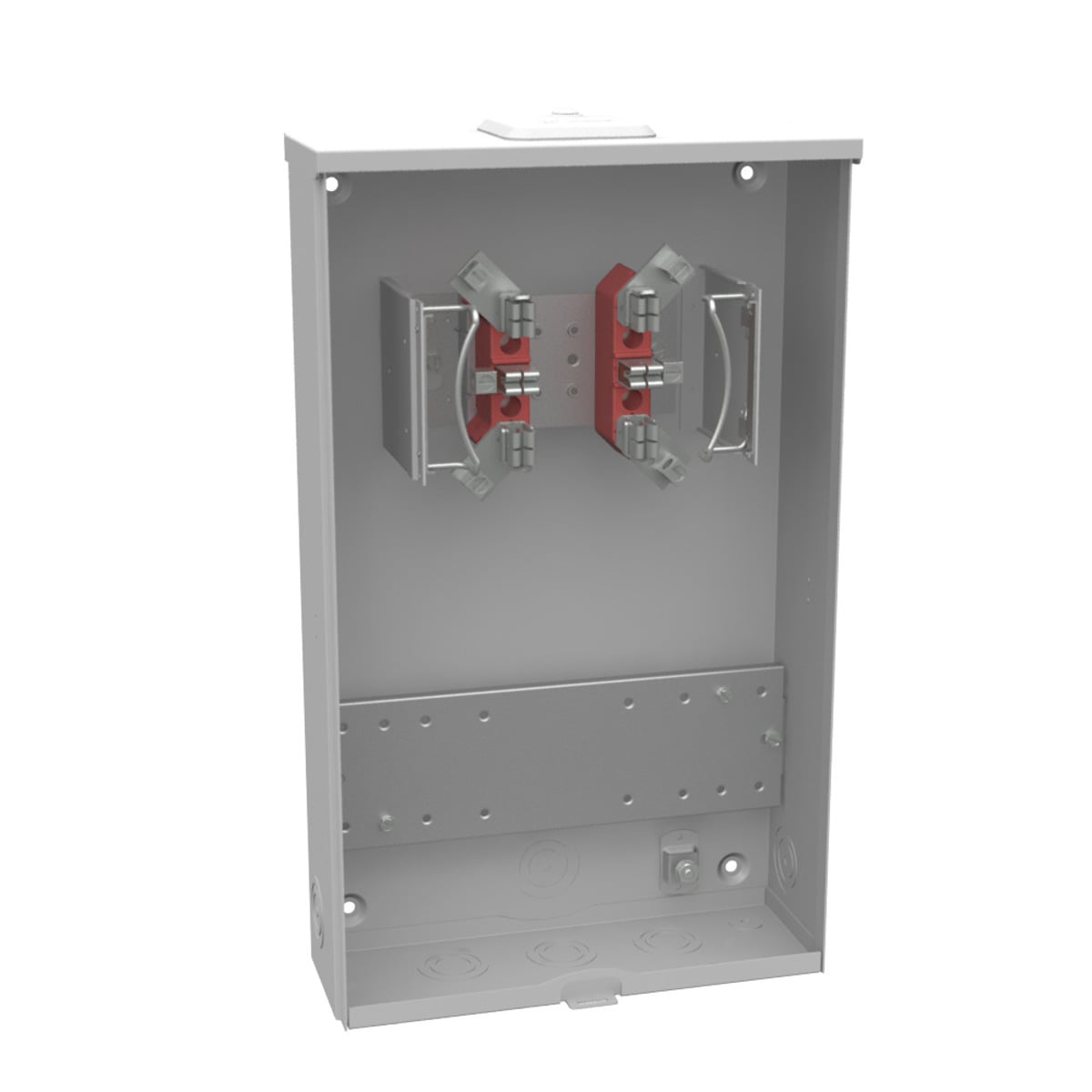

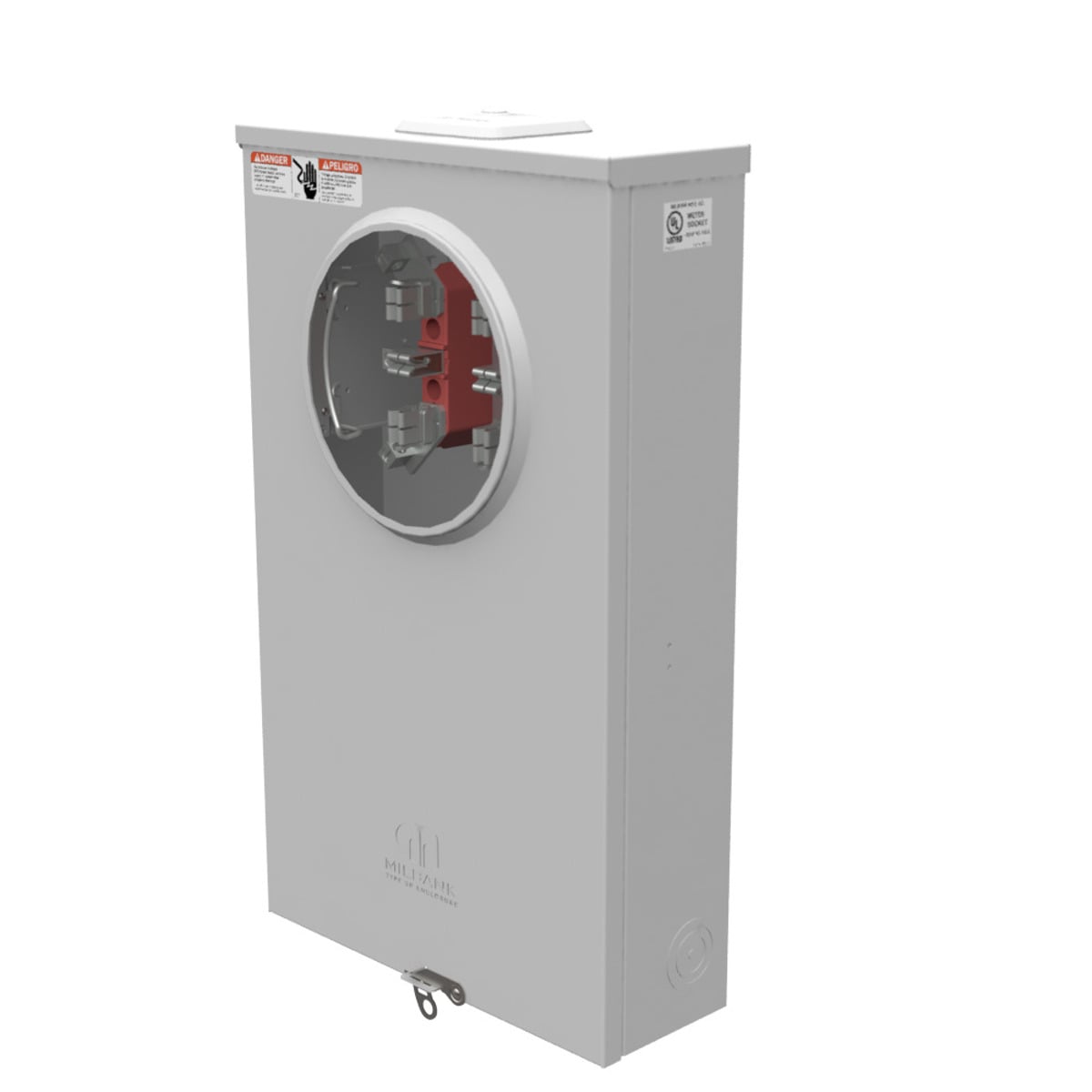

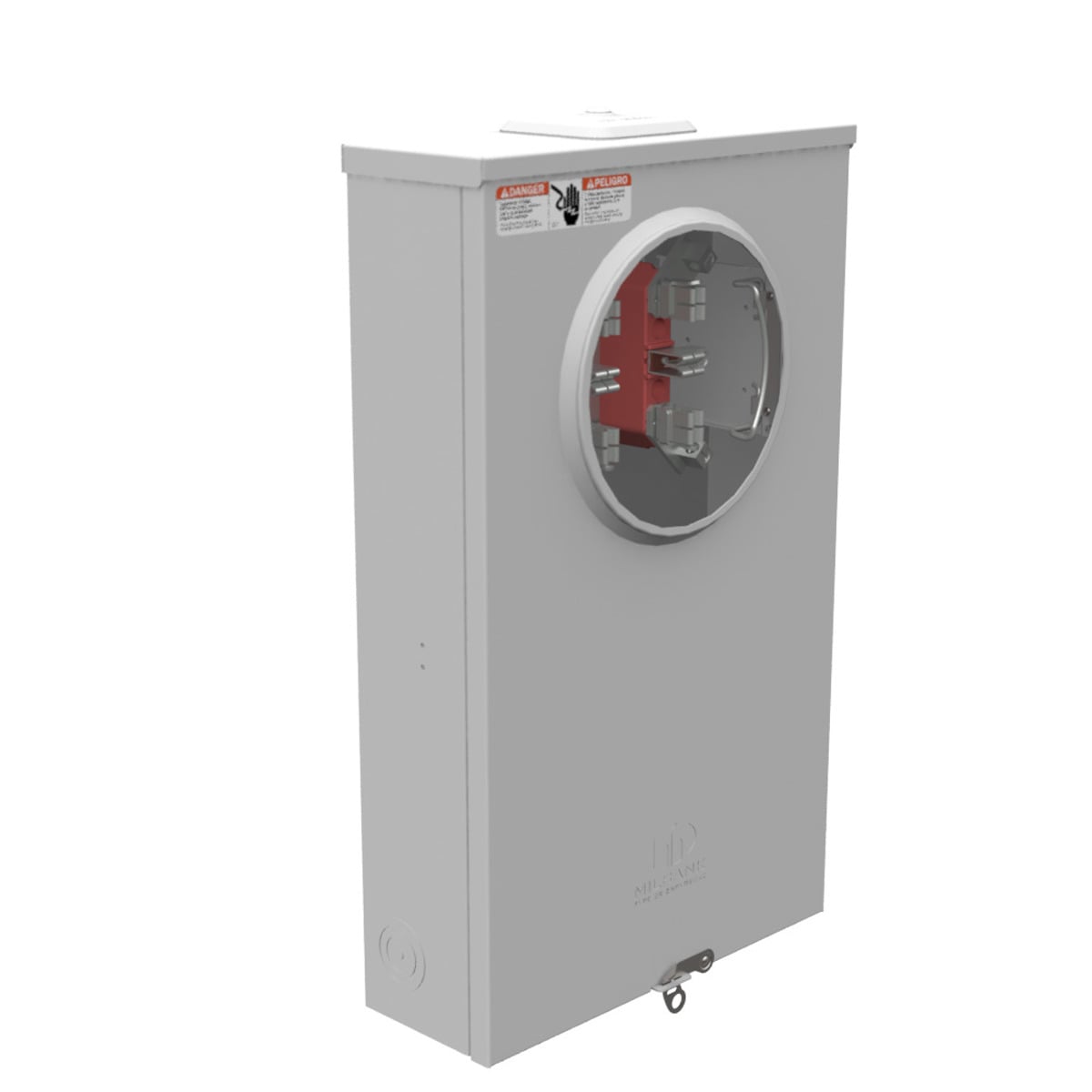

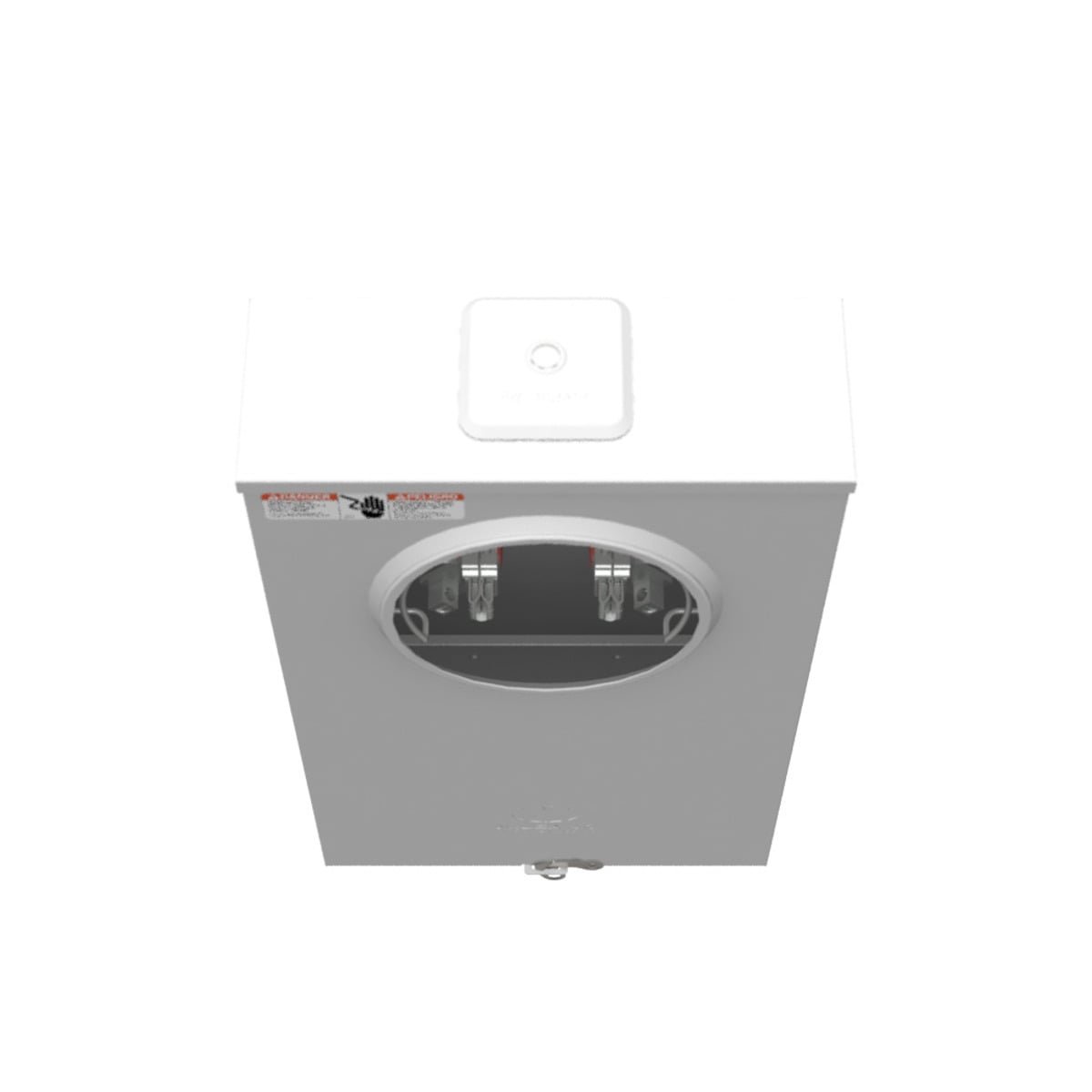

Milbank UC7478-XL single position meter socket 20 amp 1 phase ringless no bypass 6 terminal overhead underground 600V test switch provision 4.125L x 12W x 20H

Brand: MILBANK
SKU: UC7478-XL
Availability: In Stock

Ships same day if ordered by 12 pm
$439.05
$439.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Milbank UC7478-XL is a single position ringless meter socket designed for 20 Amp, 1 Phase, 600 Volt AC applications. It features a 6-terminal configuration with a test switch provision and supports both overhead and underground cable entry. Constructed from G90 galvanized steel with a powder coat finish, this surface-mount unit is UL Listed and Type 3R rated, ensuring durability and compliance for electrical installations.

  • 6-terminal, ringless design with test switch provision.
  • G90 galvanized steel construction with powder coat finish.
  • UL Listed and Type 3R rated for surface mount applications.

Product Highlights

Single position meter socket with 6 terminals, ringless design, and test switch provision.

Product Information

Standard Information

  • Brand: MILBANK
  • Manufacturer Part Number: UC7478-XL
  • Country of Origin: United States
Technical Specifications
Catalog Number
UC7478-XL
Made in USA
Yes
Amperage Rating
20 Continuous Ampere
Application
Meter Mounting Base
Bypass Type
No Bypass
Cable Entry
Overhead or Underground
Material
G90 Galvanized Steel
Finish
Powder Coated
Enclosure Rating
NEMA 3R
Frequency Rating
60 Hertz
Insulation Material
Glass Polyester
Mounting Type
Surface Mount
Number of Jaws
6 Terminal
Phase
1 Phase
Standard
UL Listed; Type 3R
UPC
784572145566
GTIN
00784572145566
Product Type
Ringless Meter Socket
Terminal Type
Single Mechanical (Line Side/Load Side)
Voltage Rating
600 Volts AC
Country of Origin
United States
Brand
Milbank
Main Breaker
No Main Breaker
Equipment Ground
Ground Lug
Hub/Closing Plate
Small Closing Plate
Knockouts
True
Line Side Wire Range
12 - 10 AWG
Load Side Wire Range
12 - 10 AWG
Number of Main Breakers
0
Number of Meter Positions
1 Position
Number of Receptacles
0
Manufacturer
Milbank Mfg Co
Manufacturer Brand
Milbank Mfg. Co.
Devices Included
Test Switch Provision
Sub-Category
Transformer Rated Meter Socket
UNSPSC
39121102
Category Level 1
Distribution Equipment & Accessories
Category Level 2
Metering Equipment
Category Level 3
Meter Sockets - Transformer Rated
