Milbank UC7478-RL 6 Term Ringless Small Hub Opening Test Switch Provision Single Cover 20A 600V 4.125L x 12W x 20H

Product Description

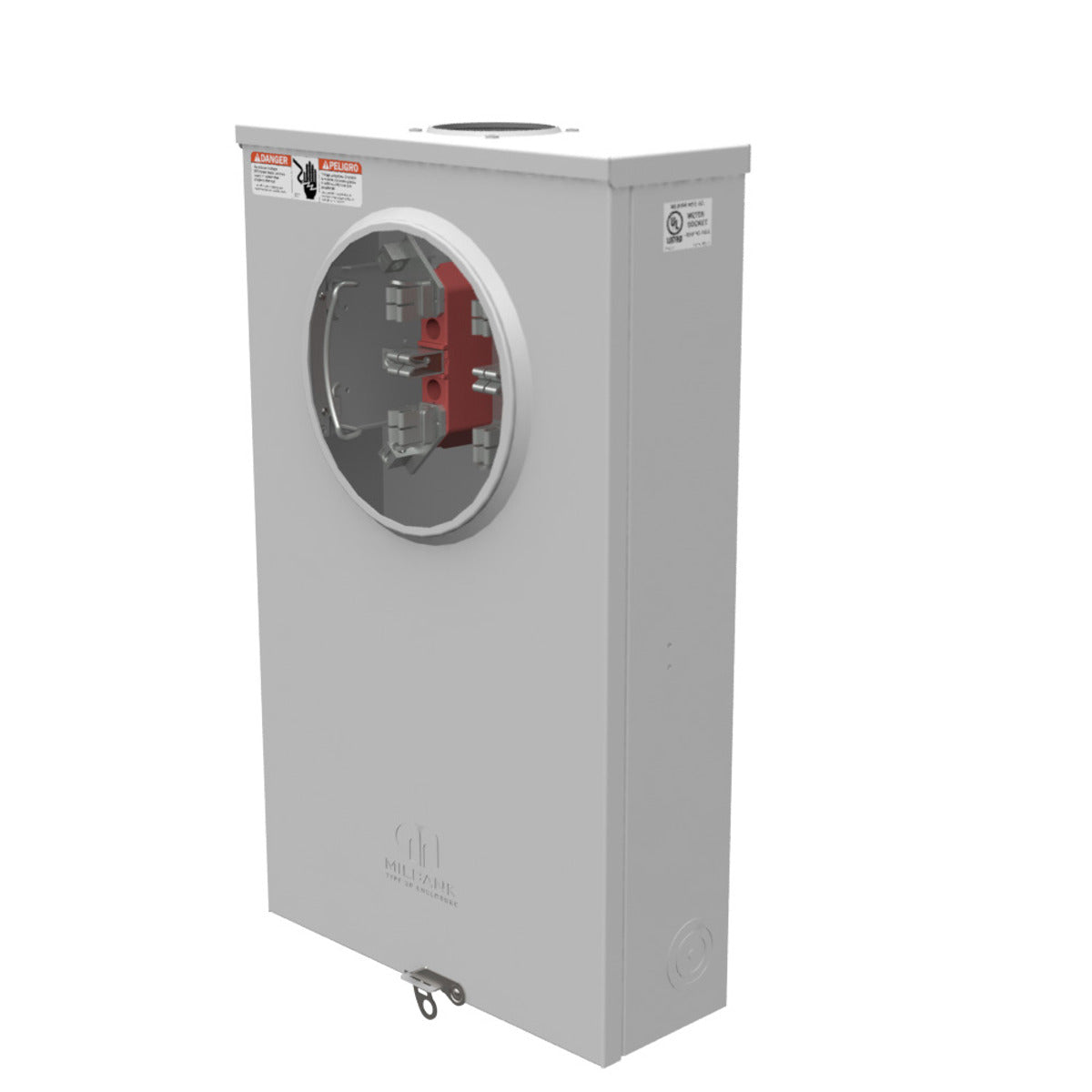

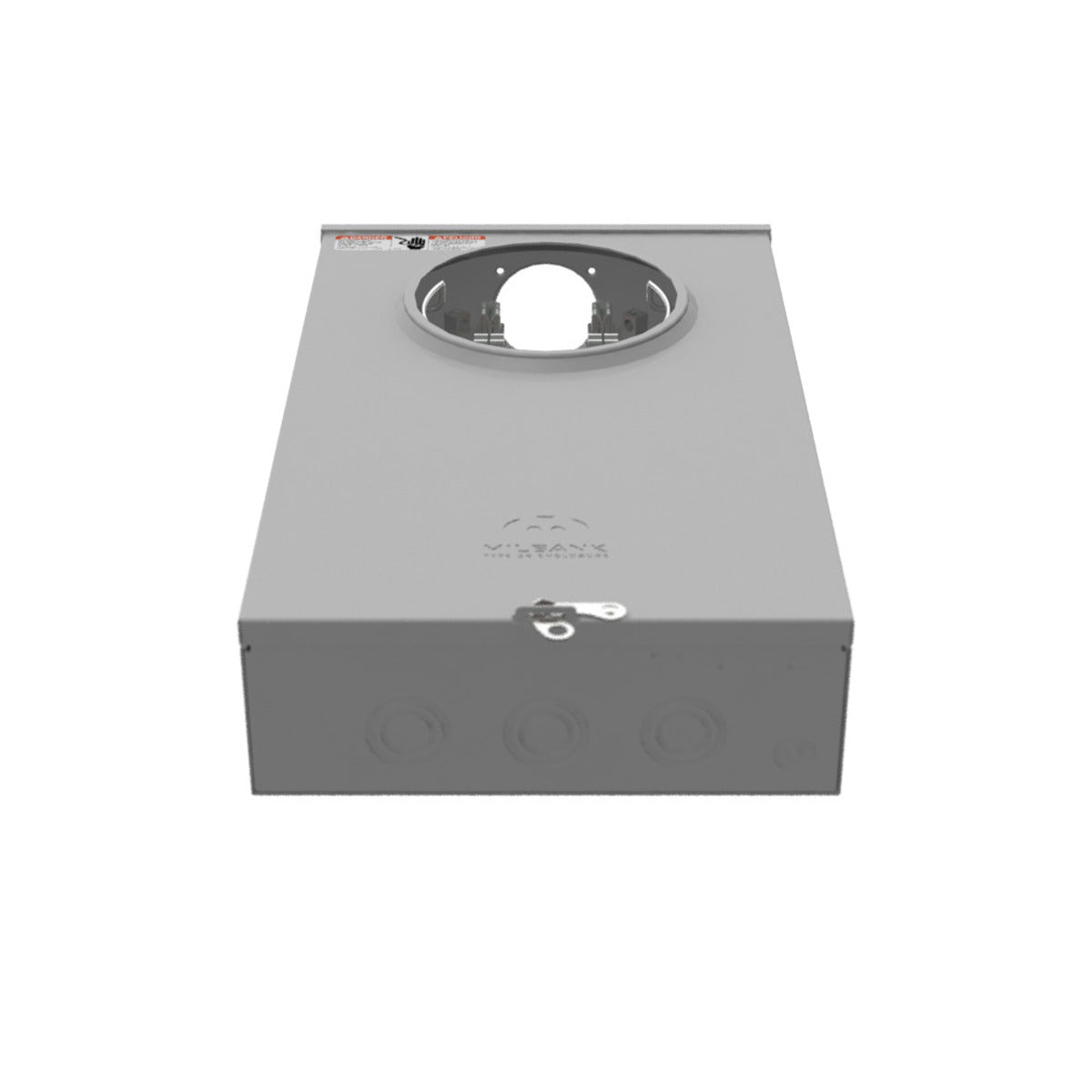

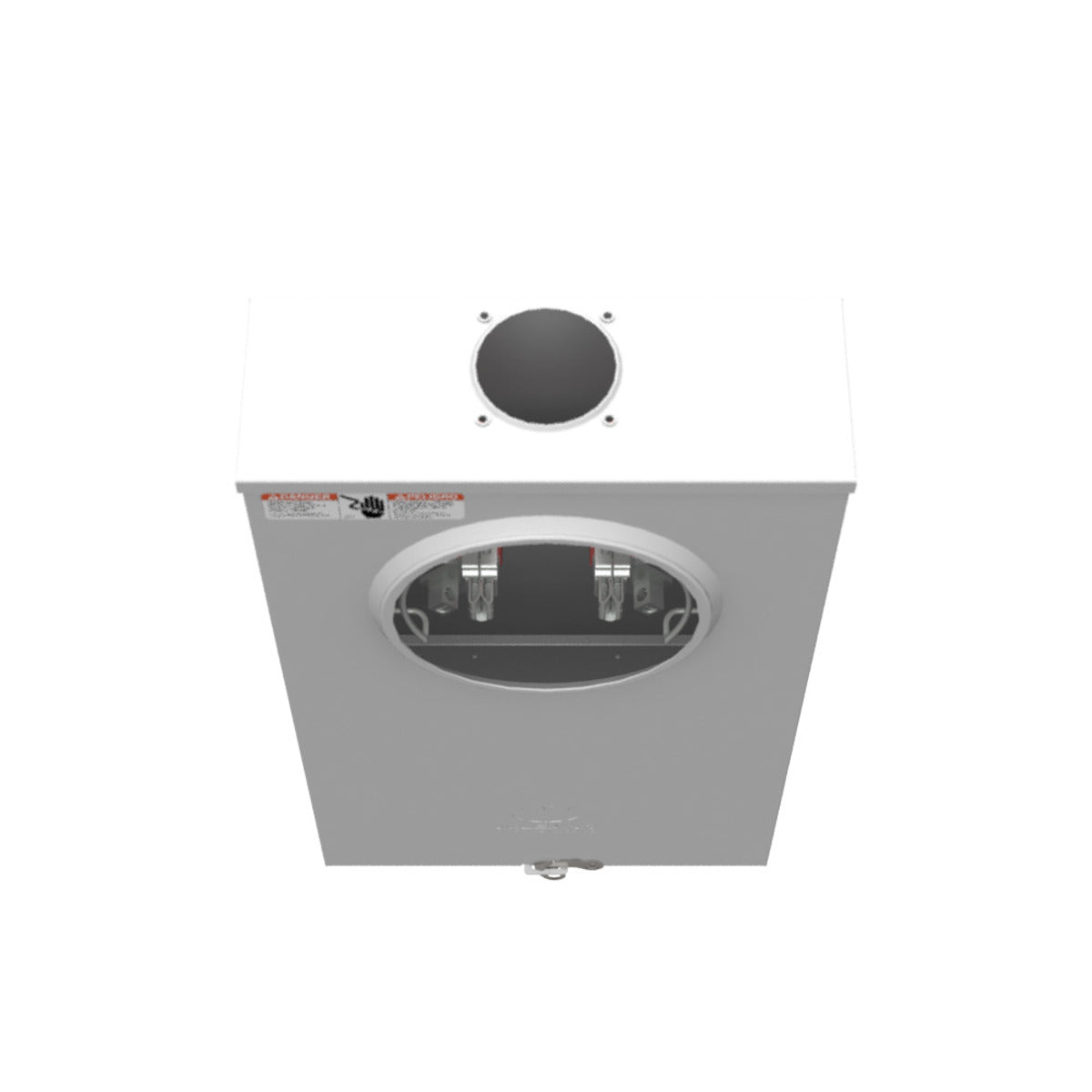

The Milbank UC7478-RL is a 6-terminal ringless meter socket designed for single-phase electrical installations. This surface-mount unit features a small hub opening and a test switch provision, enclosed in G90 galvanized steel with a powder coat finish for durability. It operates at 600 Volts AC with a 20 Ampere rating, suitable for overhead or underground cable entry. UL Listed and Type 3R rated, it provides reliable metering for various applications.

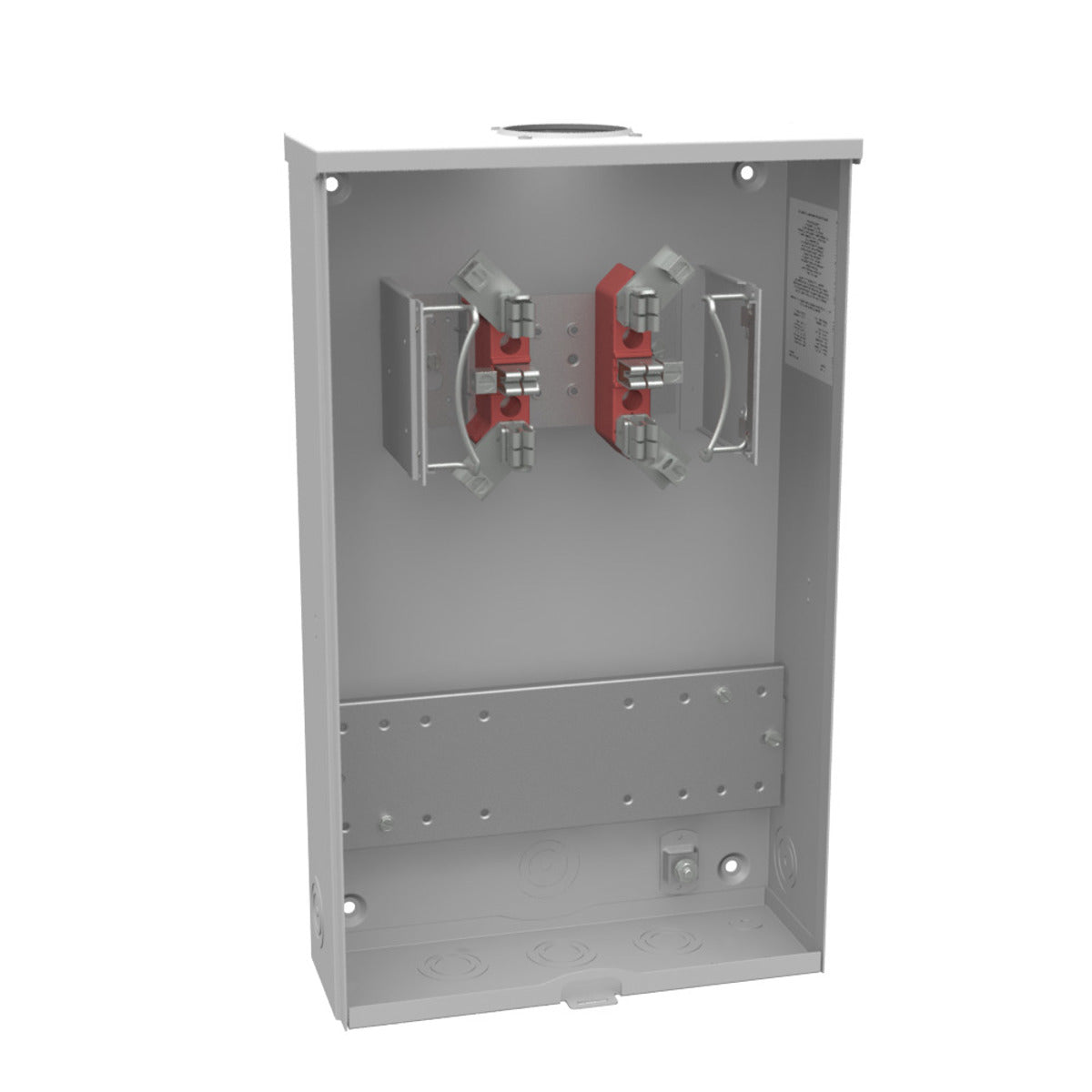

• Features a 6-terminal ringless design with a small hub opening and integrated test switch provision.
• Constructed from powder-coated G90 galvanized steel, offering a NEMA 3R enclosure for outdoor use.
• UL Listed, rated for 600 Volts AC and 20 Amperes, supporting 1-phase overhead or underground service with knockouts for flexible wiring.

Product Highlights

Durable 6-terminal ringless meter socket with test switch provision, NEMA 3R enclosure, and flexible wiring options for 1-phase applications.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: UC7478-RL
• Country of Origin: United States

Technical Specifications

• Catalog Number: UC7478-RL
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 20 A Continuous
• Application: Meter Socket
• Bypass Type: No Bypass
• Service Type: Overhead/Underground
• Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hz
• Insulation Material: Glass Polyester

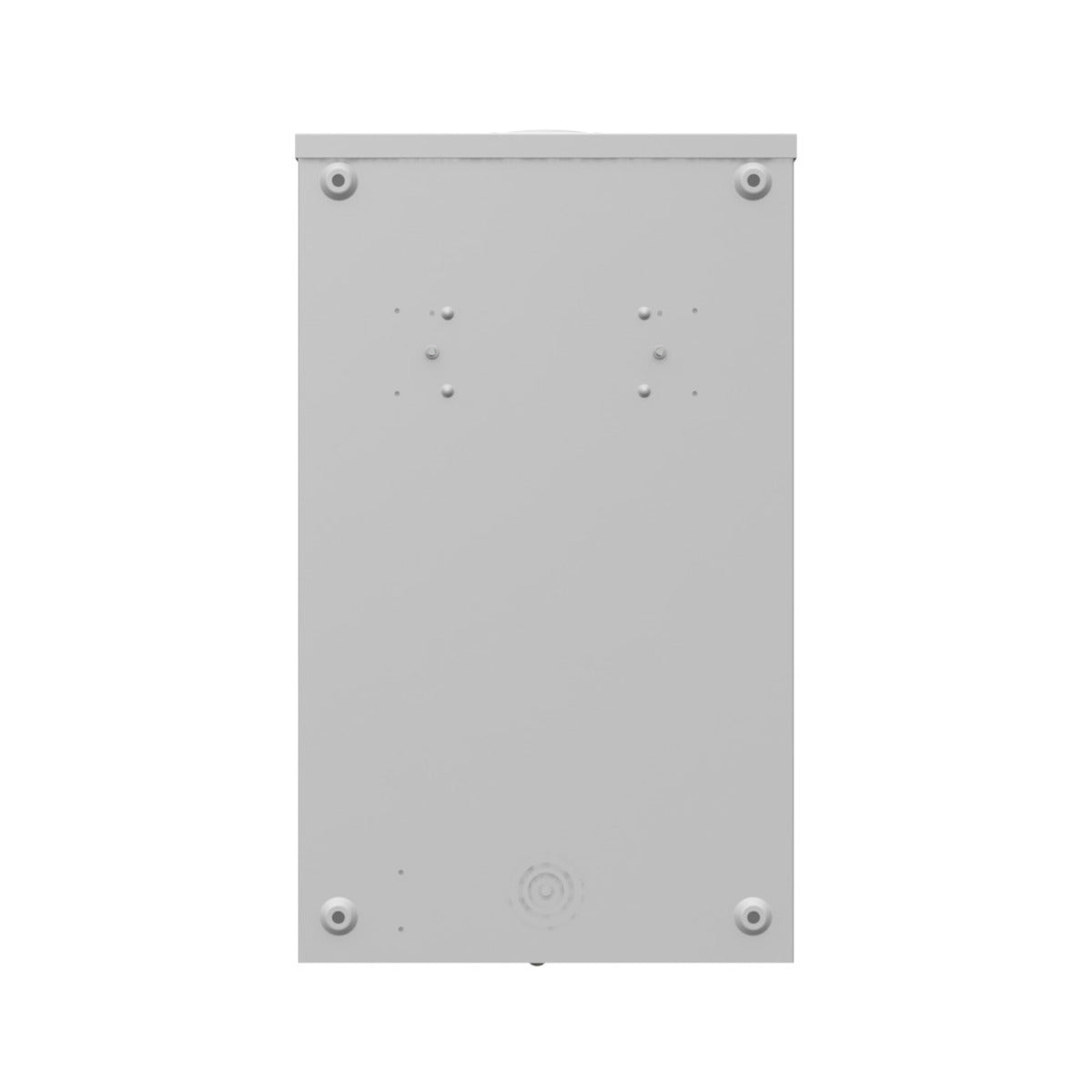

• Mounting Type: Surface Mount
• Number of Jaws: 6 Terminal
• Phase: 1 Phase
• Standards: UL Listed, Type 3R
• UPC: 784572145535
• GTIN: 00784572145535
• Product Type: Ringless Meter Socket
• Terminal Type: Single Mechanical
• Voltage Rating: 600 VAC
• ECCN: EAR99
• UNSPSC: 39121102
• Main Breaker Size: No Main Breaker
• Equipment Ground: Ground Lug
• Hub Type: Small Hub Opening
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Devices Included: Test Switch
• Enclosure Rating: NEMA 3R
• Knockout Details: (1) (1/4 Inch - 1/2 Inch), (3) (1/4 Inch - 1/2 Inch - 3/4 Inch - 1 Inch - 1-1/4 Inch), (3) (1/2 Inch - 3/4 Inch - 1 Inch - 1-1/4 Inch) Concentric Knockout
• Model: UC7478
• Category: Current Transformer Metering
• Manufacturer Brand: Milbank Mfg. Co.
• Sub-Category: Transformer Rated Meter Socket
• Unique Product Key: 5781226
• Comm Code Enhanced: 35800
