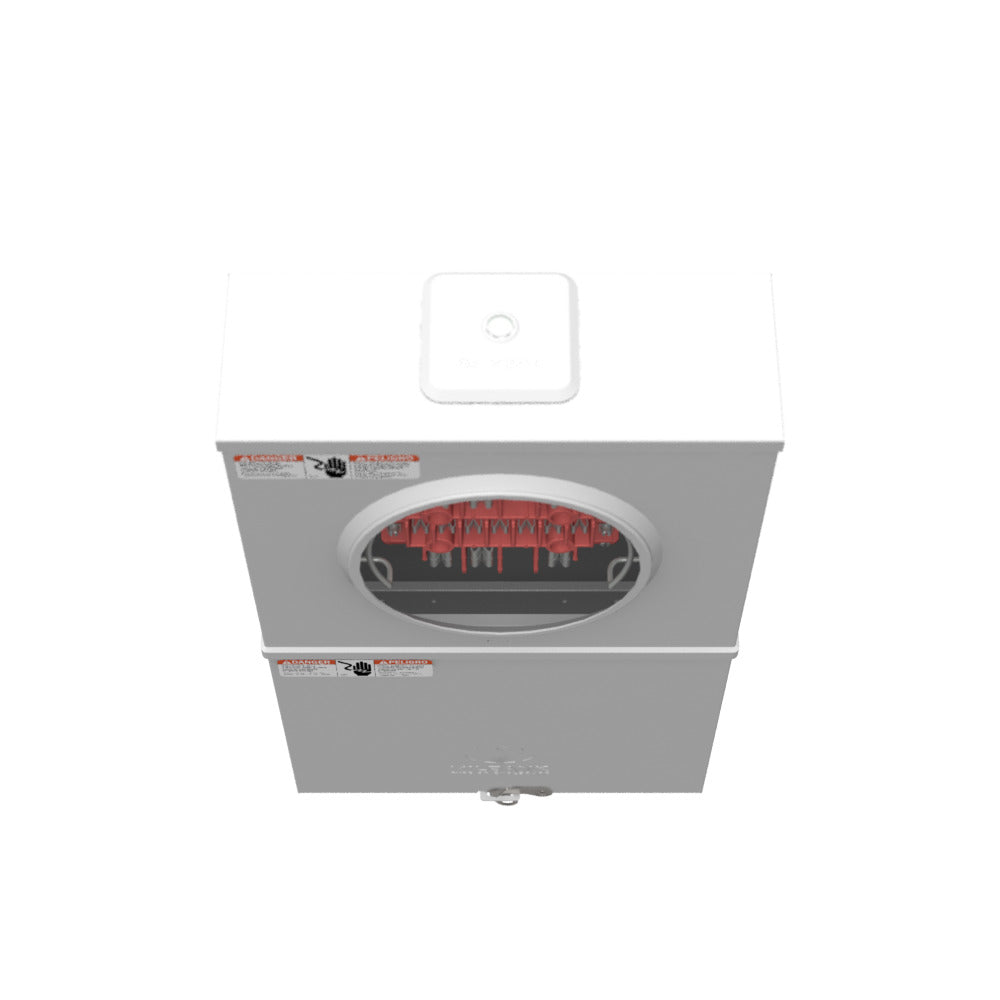

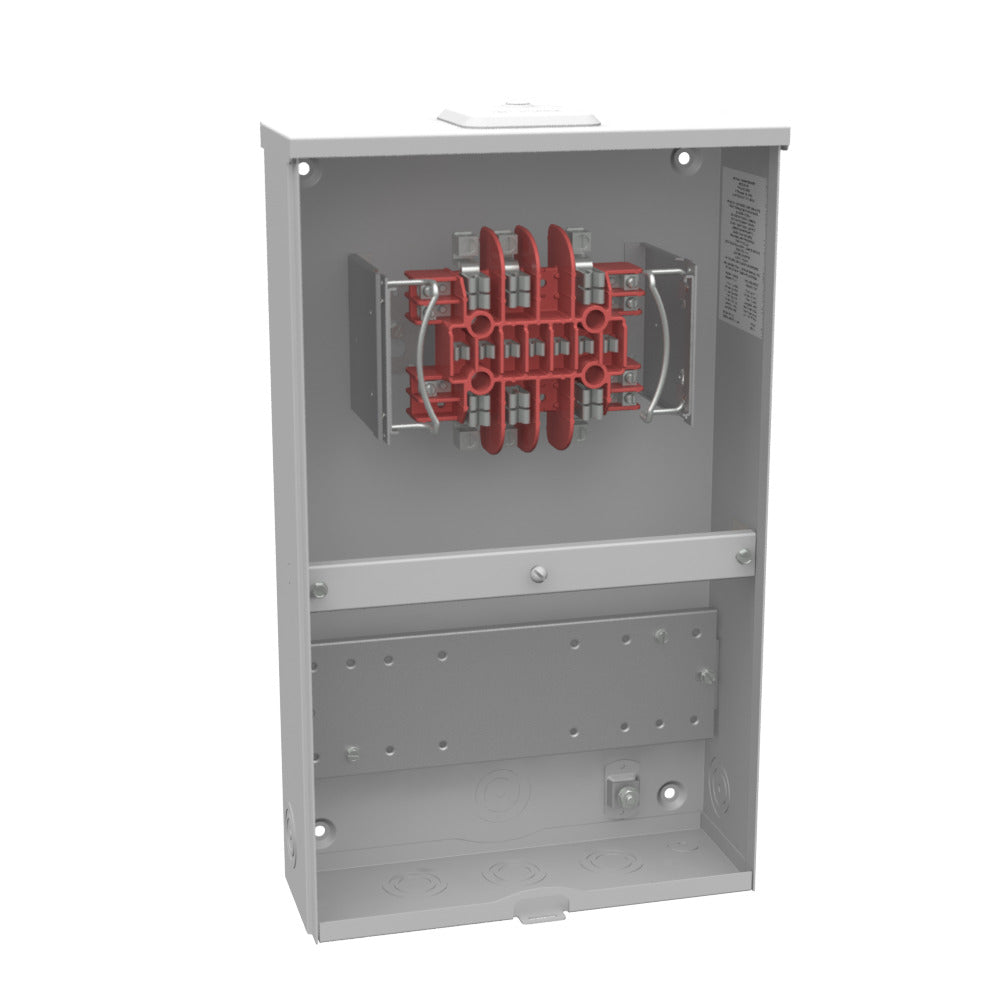

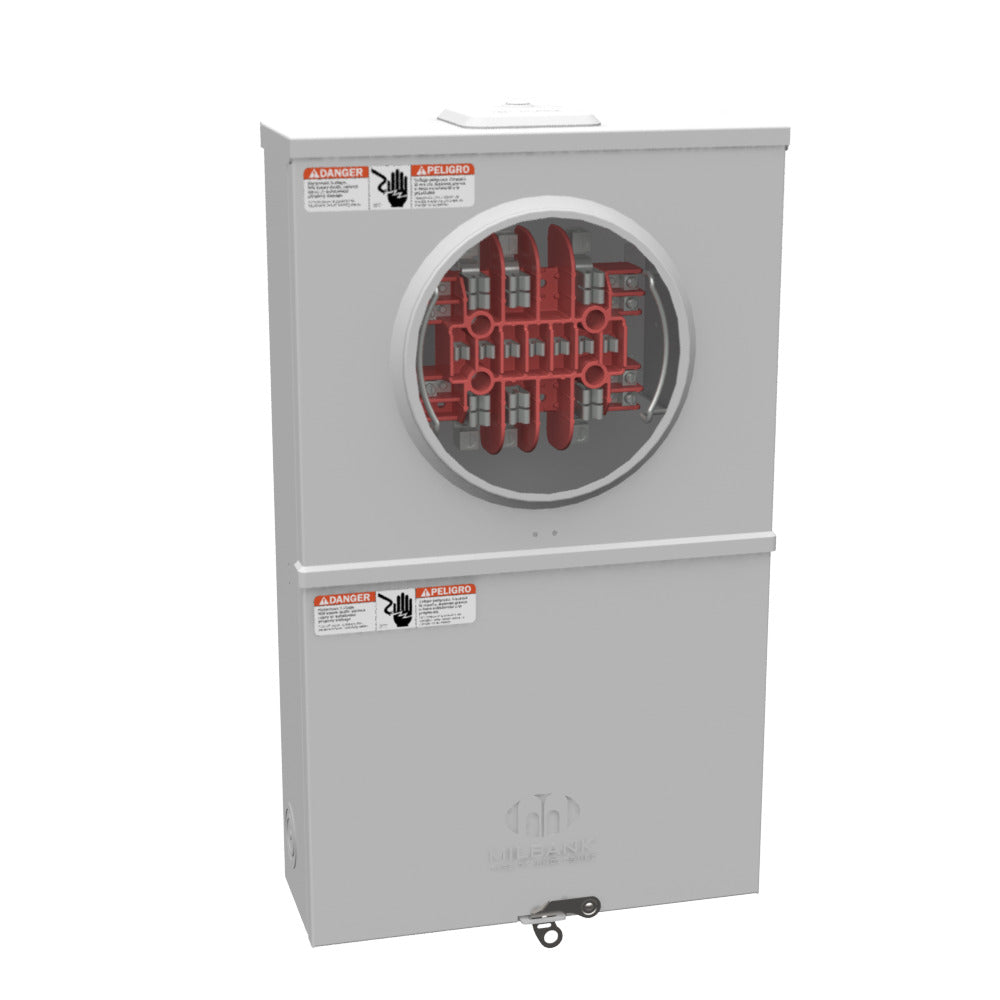

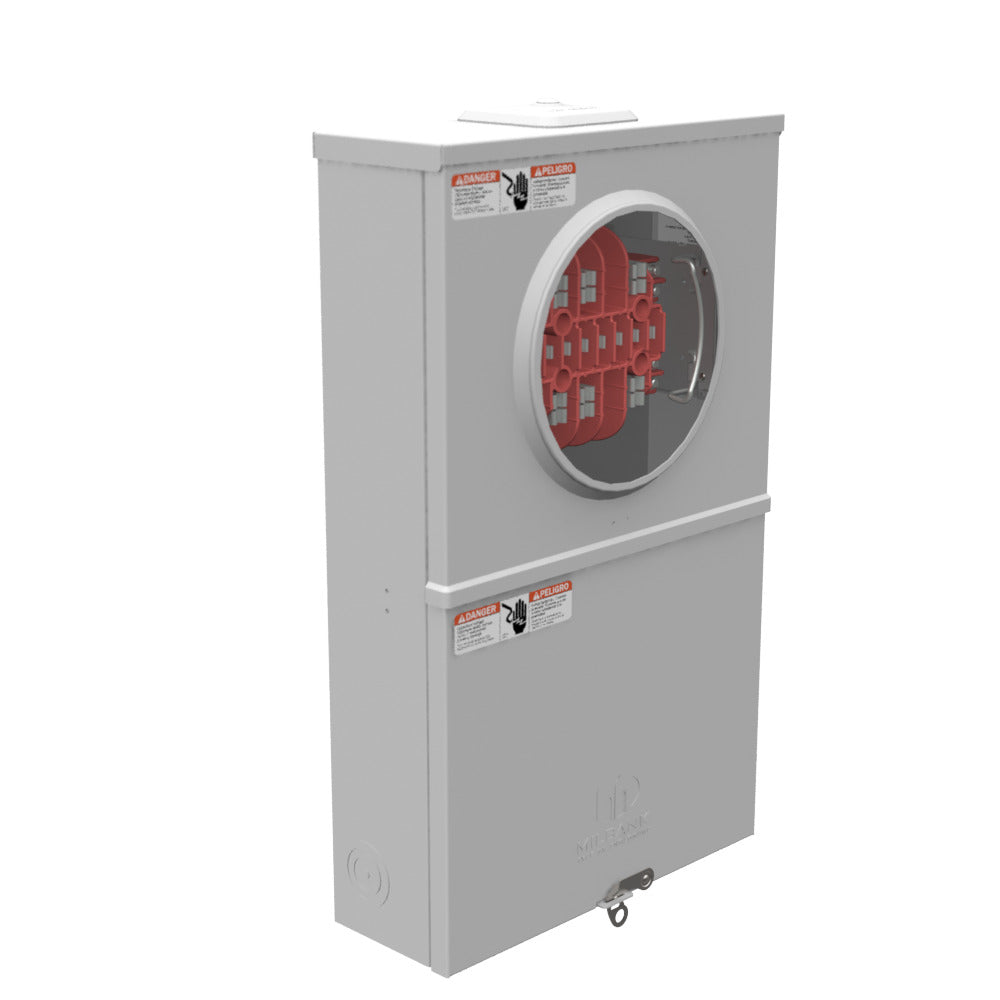

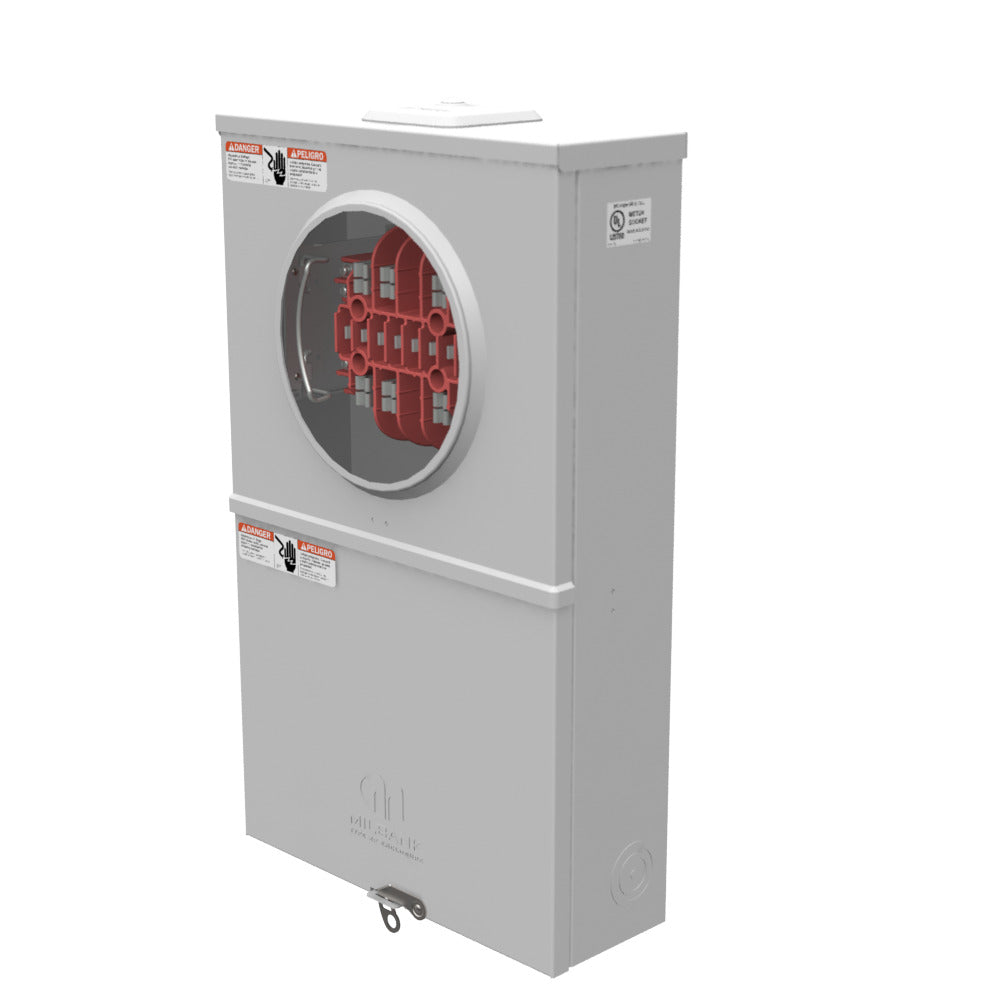

Milbank UC7449-XL Single Position Meter Socket 20 Amp 3 Phase Ringless No Bypass

Product Description

The Milbank UC7449-XL is a single position meter socket rated for twenty amps in a three-phase configuration. This product supports both overhead and underground cable entry. It features a ringless design without bypass, offering a durable solution for your metering needs.

• Rated for 20 amps and 600 volts AC
• Constructed from G90 galvanized steel with a powder-coated finish
• UL listed for safety and reliability

Product Highlights

This meter socket is designed for surface mounting and has provisions for a test switch. It is suited for various applications in electrical distribution.

Product Information

Standard Information

• Category: Power Distribution and Protection > Meters and Metering Equipment > Meter Sockets
• Country of Origin: United States

Technical Specifications

• Catalog Number: UC7449-XL
• Amperage Rating: 20 Amps
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hertz
• Material: G90 Galvanized Steel with Powder Coat Finish
• Enclosure Type: NEMA 3R
• Number of Jaws: 13
• Size: 4.125 inches Length x 12 inches Width x 20 inches Height
