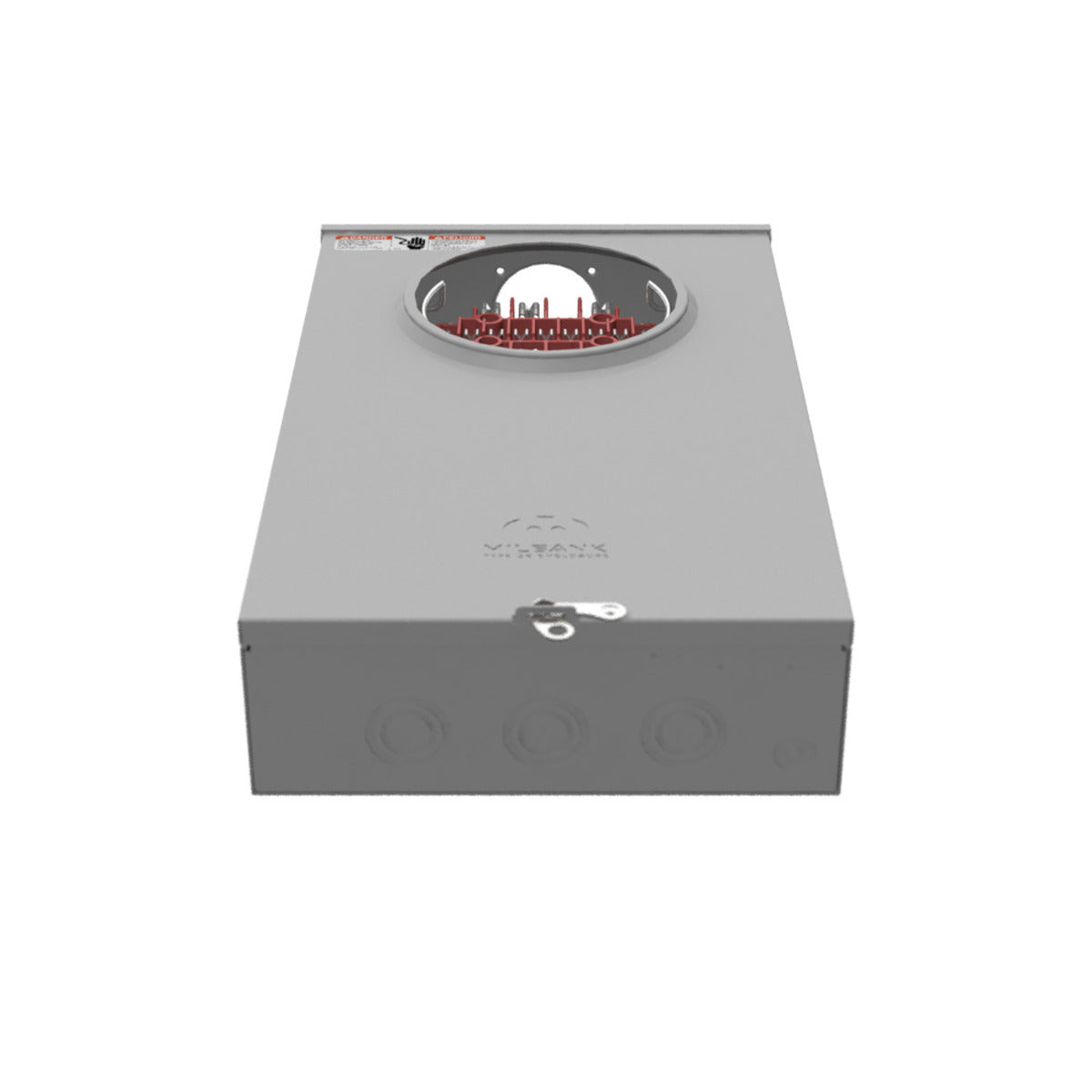

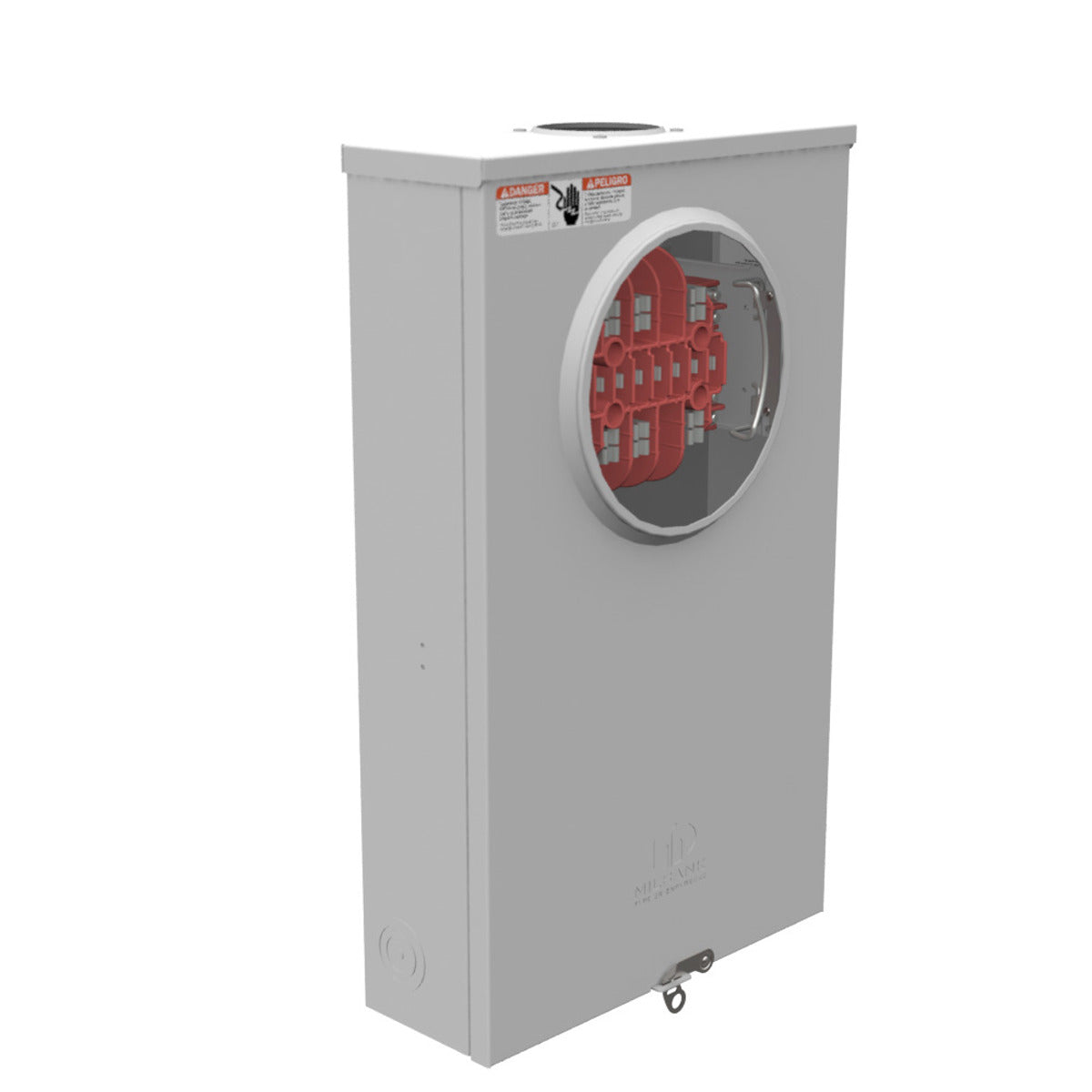

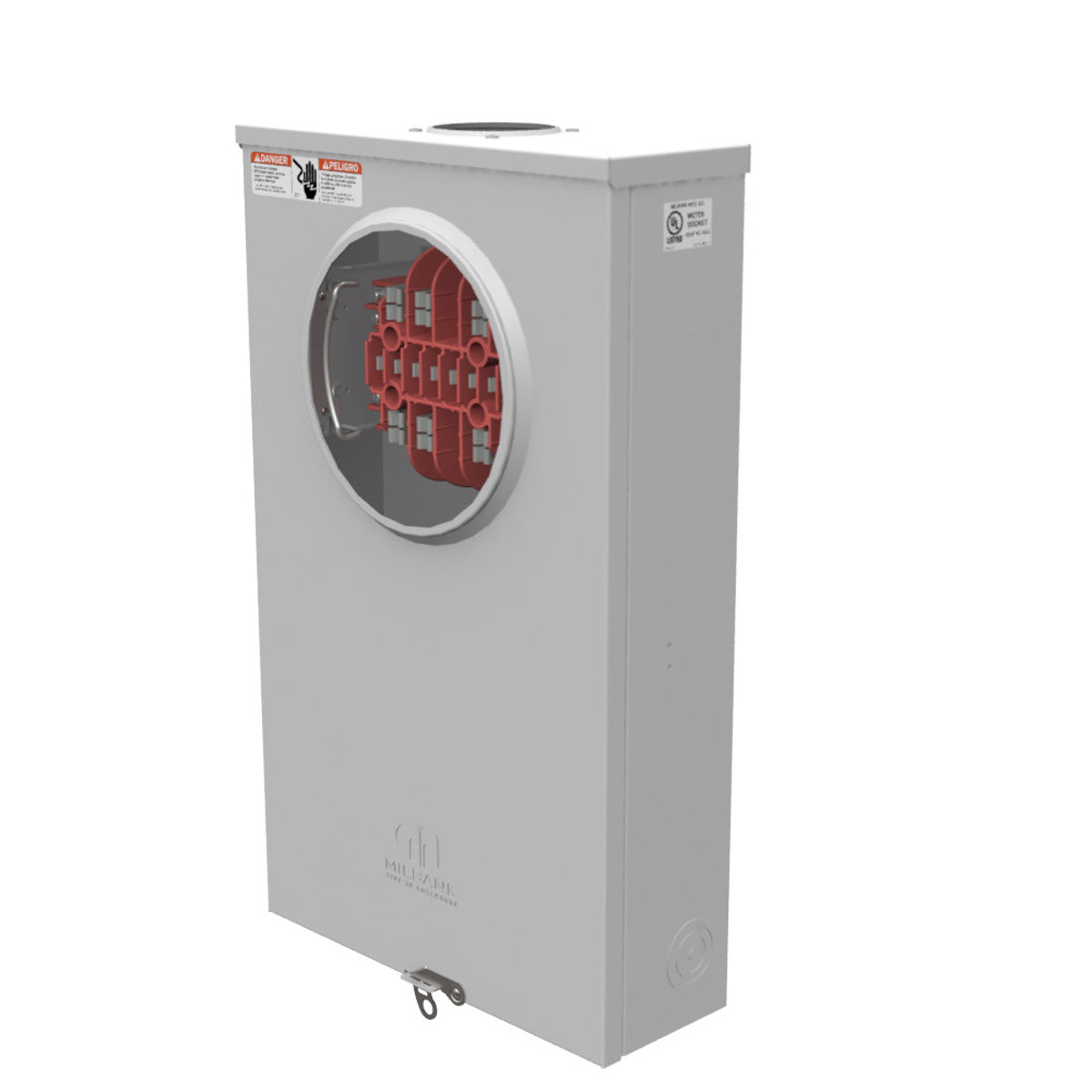

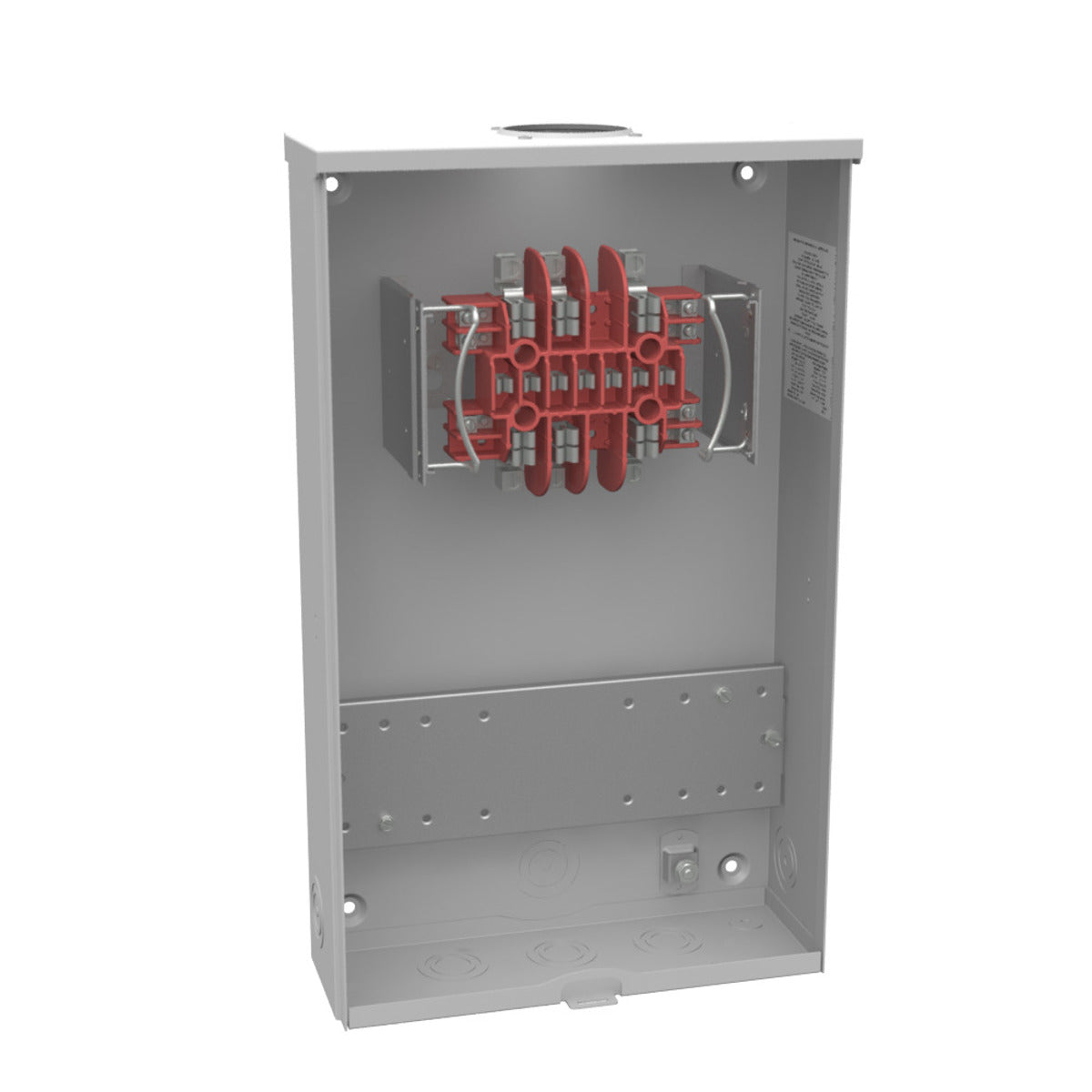

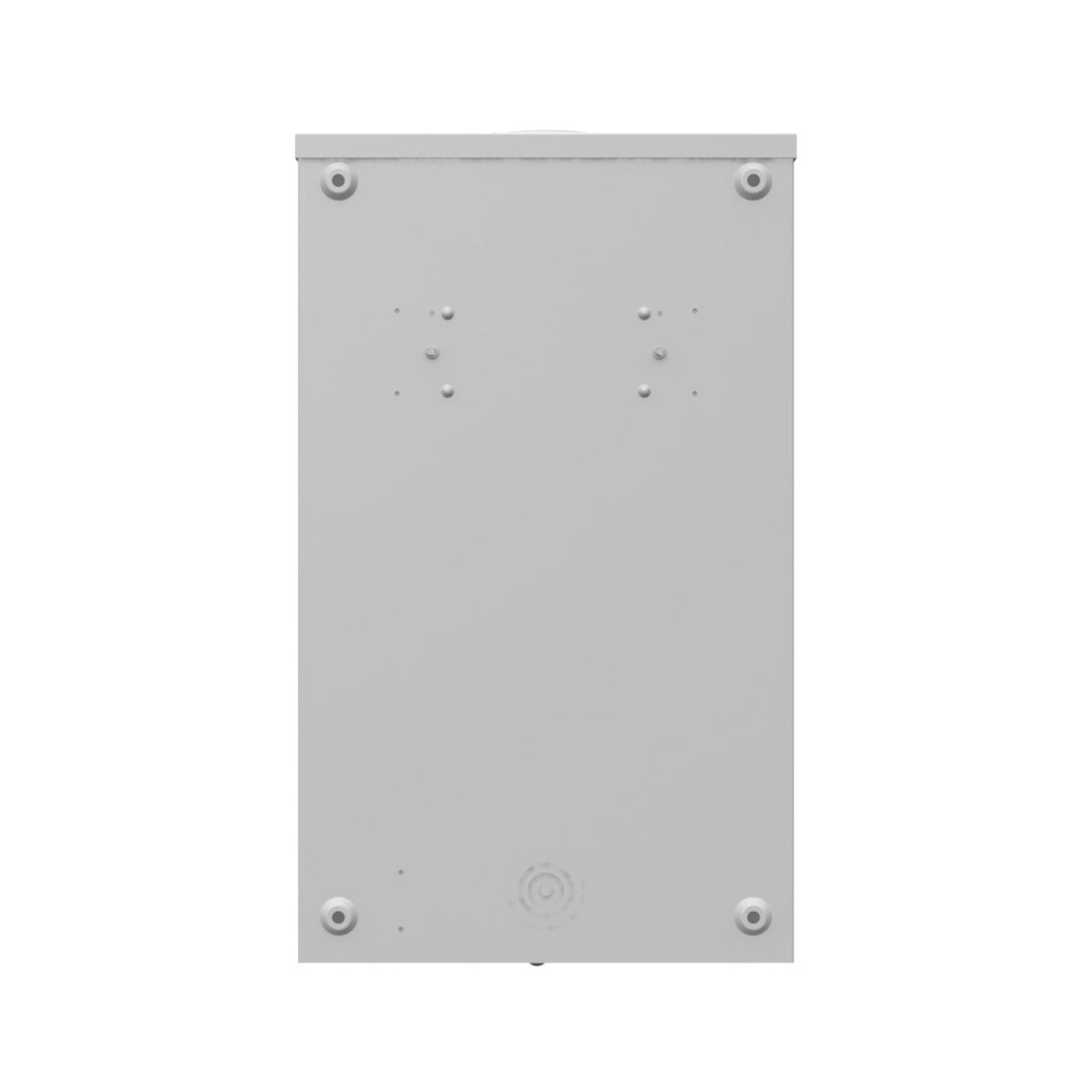

Milbank UC7445-RL single position meter socket 20 amp 600v 3 phase 13 terminal ringless no bypass oh ug test switch provision single cover

Brand: MILBANK
SKU: UC7445-RL
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$667.86
$667.86
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MILBANK UC7445-RL is a single position meter socket designed for electrical metering applications. This 20 Amp, 600 Volt unit supports 3-phase systems and features a ringless design with 13 terminals. It is suitable for both overhead and underground cable entry, incorporating a test switch provision and a single cover. Constructed from G90 galvanized steel with a powder coat finish, it ensures durability and NEMA 3R protection.

  • Ringless design with 13 terminals for secure connections.
  • Rated for 20 Amps and 600 Volts AC, suitable for 3-phase systems.
  • UL Listed Type 3R enclosure, made from G90 galvanized steel with powder coat finish, for outdoor use.

Product Highlights

Features 13 terminals, a ringless design, small hub opening, and open test switch provision with a single cover. Constructed from G90 galvanized steel with a powder coat finish.

Product Information

Standard Information

  • Brand: MILBANK
  • Manufacturer Part Number: UC7445-RL
  • Country of Origin: United States

Technical Specifications

  • Made in USA: Yes
  • Amperage Rating: 20
  • Application: Meter Socket
  • Bypass Type: No Bypass
  • Cable Entry: Overhead or Underground
  • Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Mounting Type: Surface Mount
  • Number of Jaws: 13 Terminal
  • Phase: 3
  • Standard: UL Listed;Type 3R
  • Meter Socket Type: Ringless Meter Socket
  • Voltage Rating: 600 Volts Alternating Current
  • Main Breaker Size: No Main Breaker
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Small Hub Opening
  • Knockouts: True
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 AWG - 10 AWG
  • Number of Main Breakers: 0
  • Number of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Terminal Type: Single Mechanical
  • Cover Type: 1 Piece
  • Test Switch Provision Detail: Small Hub Open
  • Test Switch Space: 10 Pole
  • Meter Form: 6, 8, 9S and (ALT) 10S
