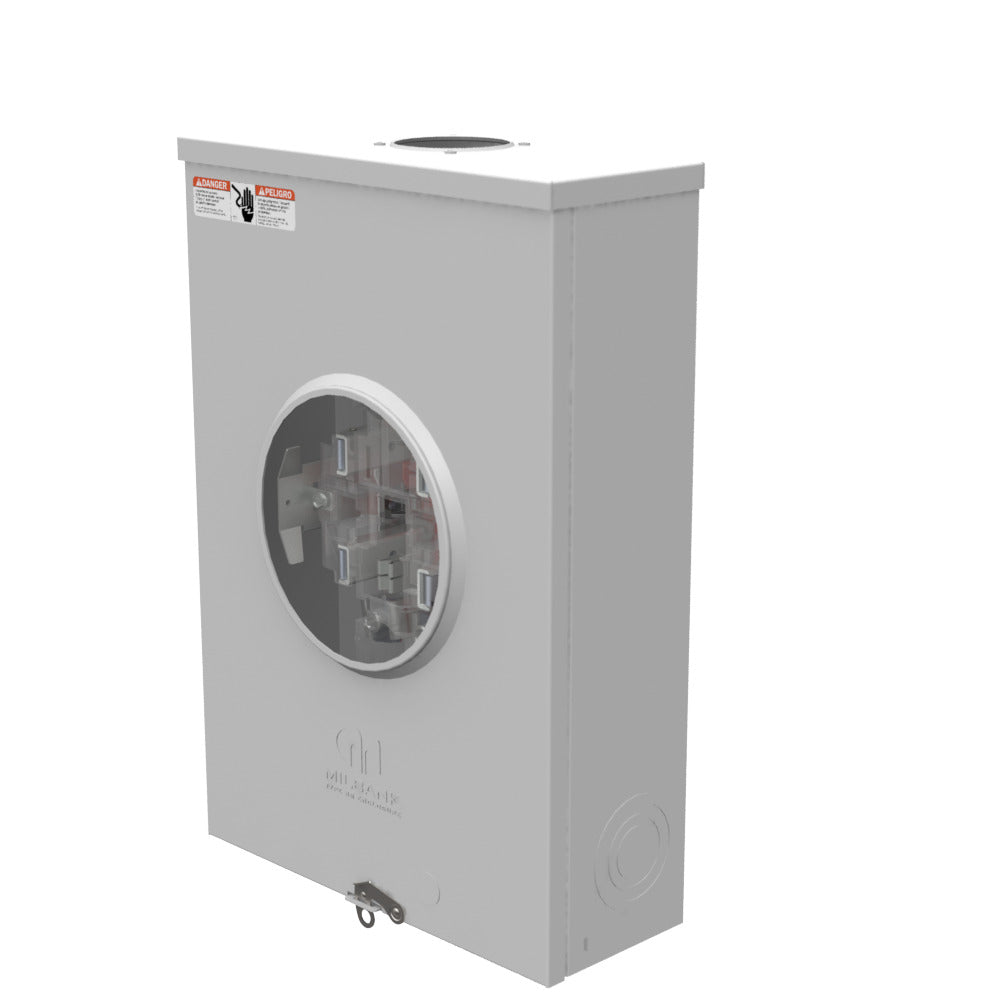

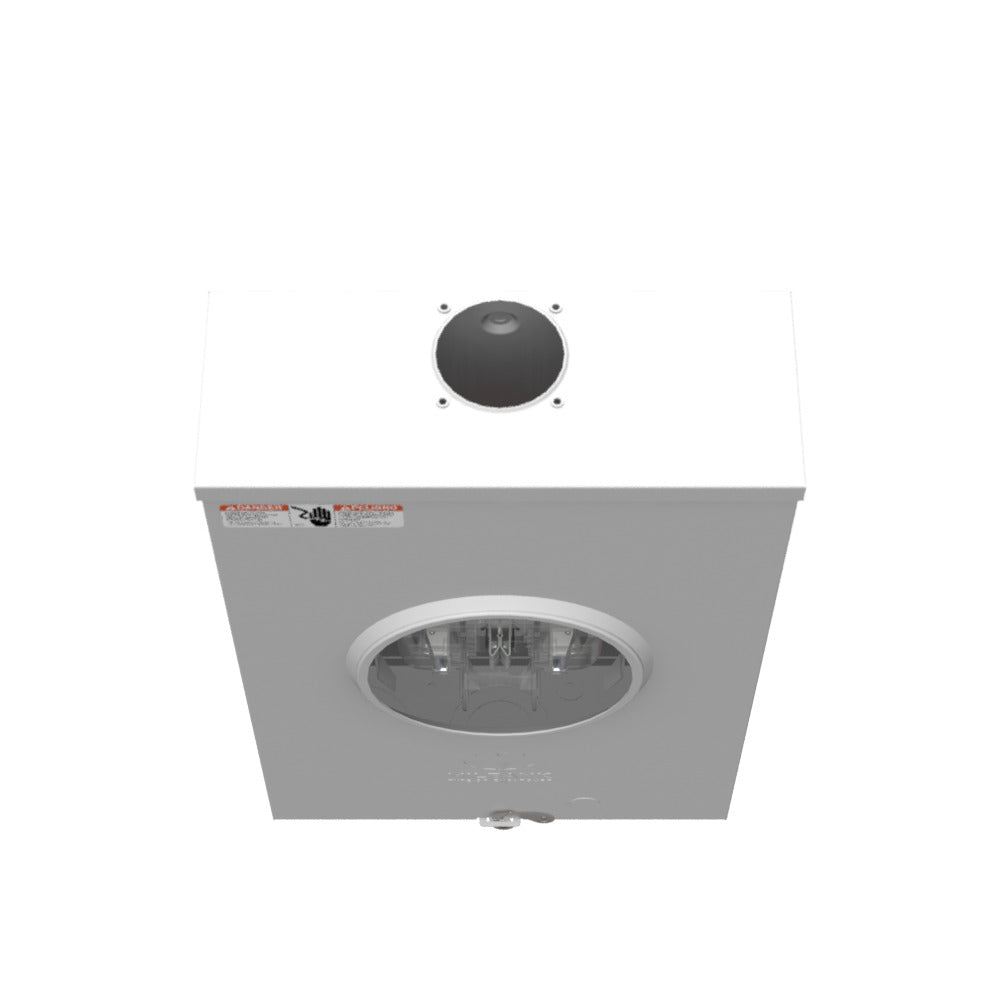

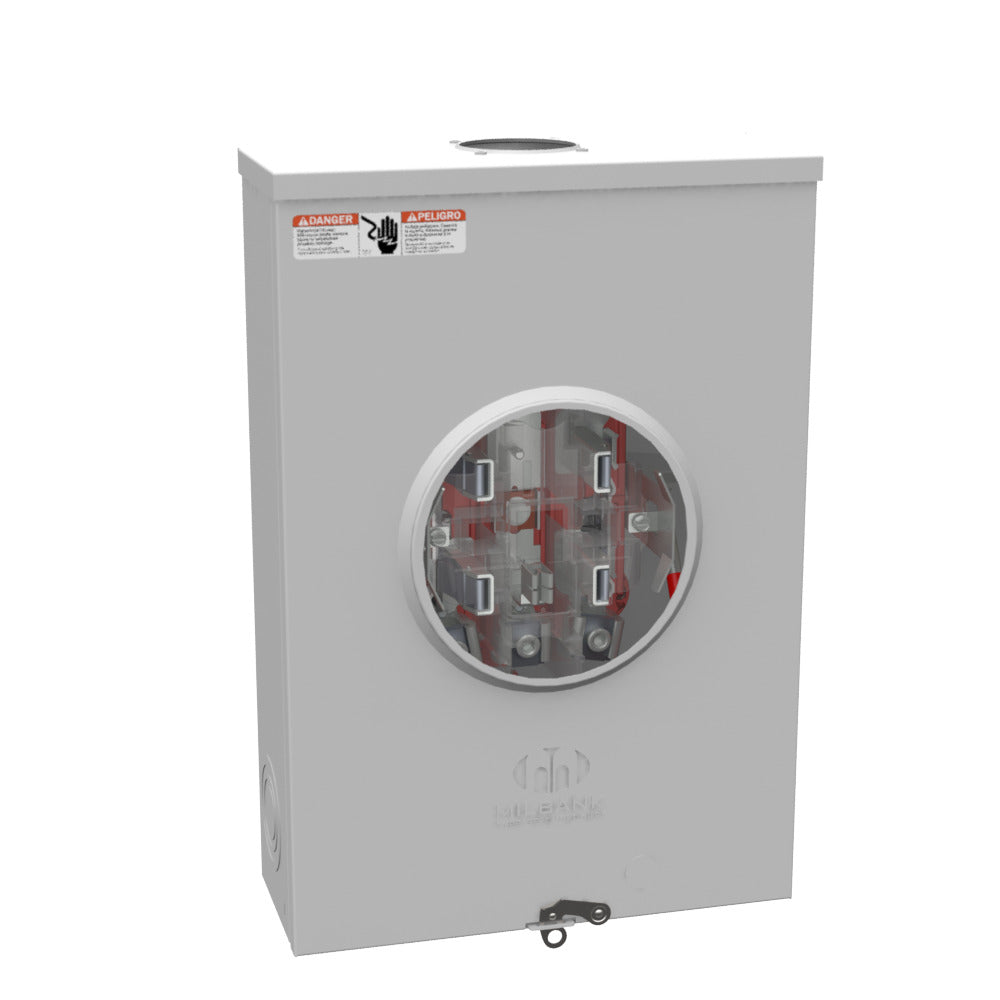

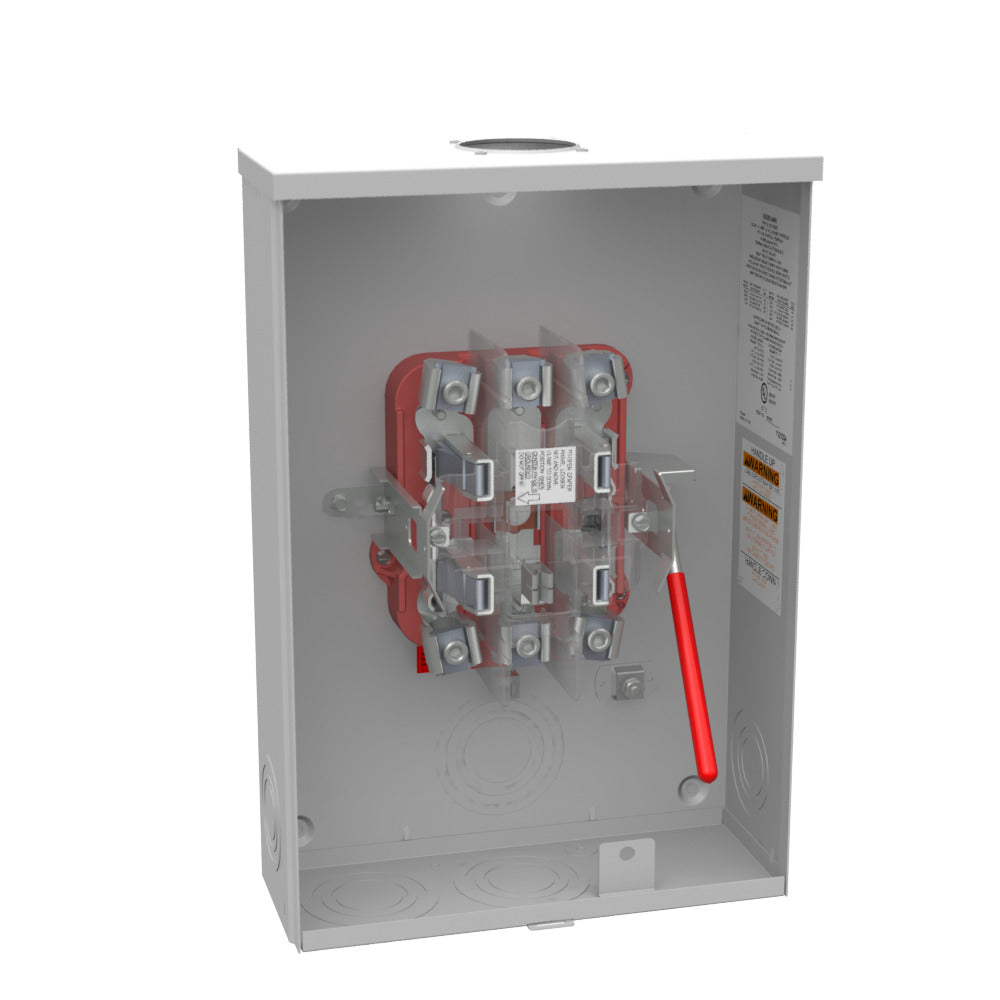

Milbank UAP9581-RL-BLG-AEP 5 Term Ringed L Small Hub Opening Lever Bypass 7-8 inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank UAP9581-RL-BLG-AEP is a meter socket designed for efficient power distribution. This product features a five-terminal configuration and supports both overhead and underground cable entry. The socket is made from aluminum with a powder coat finish for durability and provides a lever bypass with a seven-eighths inch barrel lock ground.

• Rated for up to 200 amperes
• UL Listed and Type 3R compliant
• Dimensions are four point eight four four inches in length, thirteen inches in width, and nineteen inches in height

Product Highlights

This meter socket is suitable for various applications, including residential and commercial electrical installations. It has a voltage rating of six hundred volts alternating current and an insulation made of glass polyester.

Product Information

Standard Information

• Catalog Number: UAP9581-RL-BLG-AEP
• Brand: Milbank

Technical Specifications

• Amperage Rating: 200
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: Aluminum with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: Aluminum
• Mounting: Surface Mount
• Number of Jaws: 5 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• UPC: 784572708495
• Voltage Rating: 600 Volts Alternating Current
