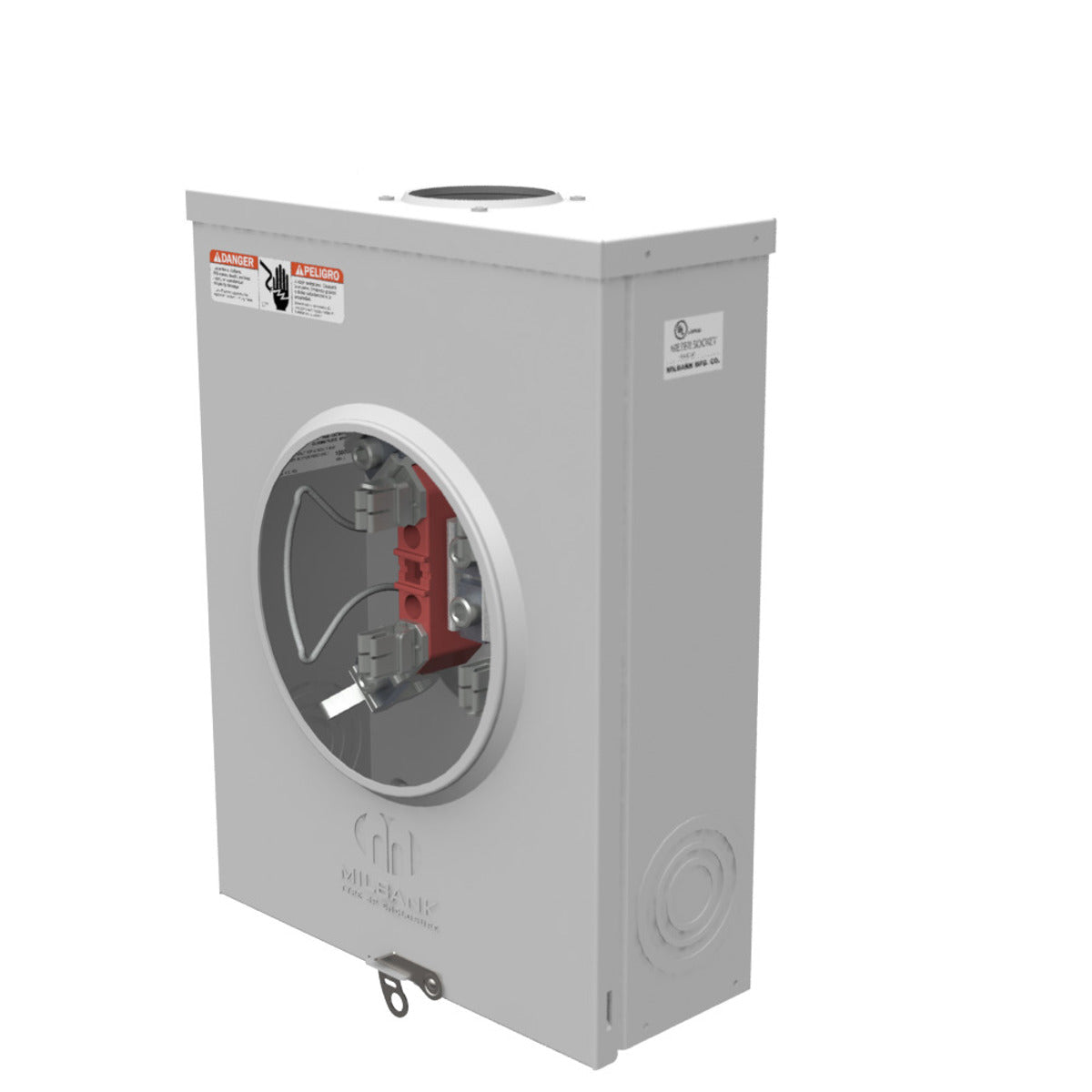

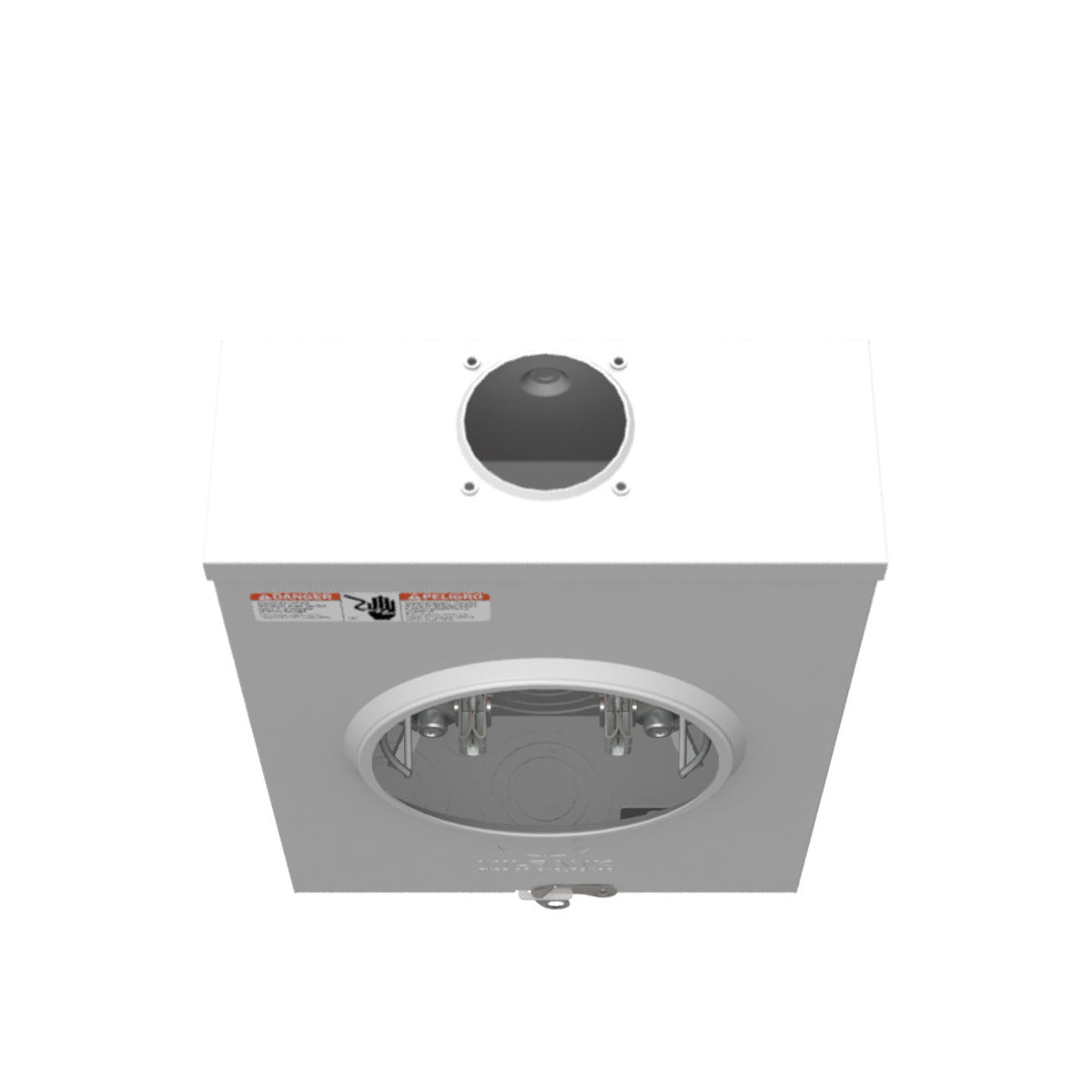

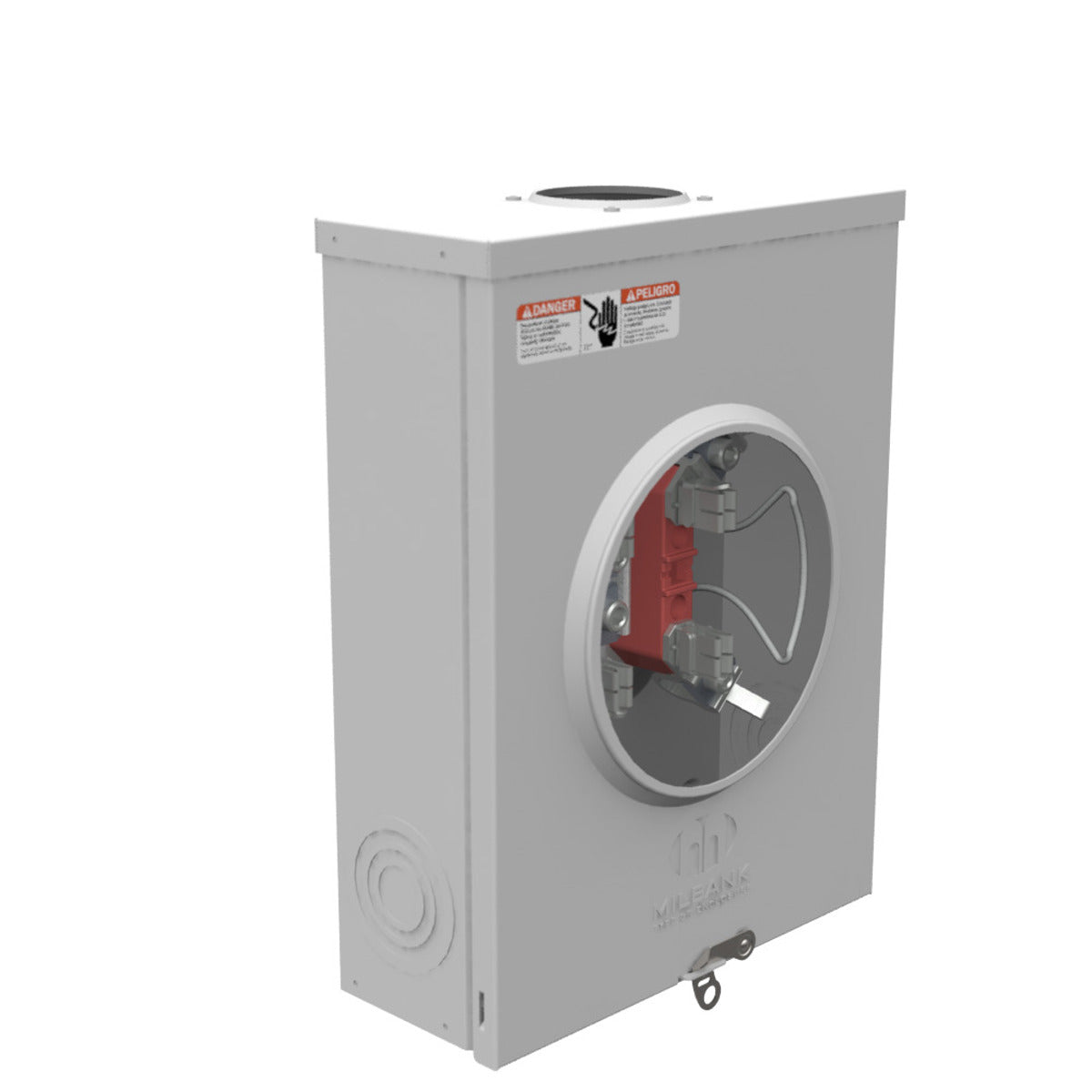

Milbank UAP7040-RL-TG-KK-BLG-AEP 4 Term Ringless Small Hub Opening Triplex Ground Horn Bypass 7-8 inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank UAP7040-RL-TG-KK-BLG-AEP is a ringless meter socket. It is designed for efficient power distribution and protection. This socket has a small hub opening and accommodates four terminals. It has a barrel lock ground with bracket provision. The design is suitable for both overhead and underground cable entry.

• Meets NEMA Type 3R standards
• Rated for 200 amperes and 600 volts
• Constructed from aluminum with powder coat finish

Product Highlights

This meter socket is ideal for residential or commercial electrical applications, ensuring safe and reliable connections while maintaining ease of installation and use.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: UAP7040-RL-TG-KK-BLG-AEP
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Application: Meter Socket
• Cable Entry: Overhead or Underground
• Enclosure: Aluminum with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Material: Aluminum
• Mounting: Surface Mount
• Number of Jaws: 4 Terminal
• Phase: 1
• Standard: UL Listed; Type 3R
• Size: 4.125L x 11W x 14.563H
• UPC: 784572706484
• GTIN: 00784572706484
