Milbank UAP6094-O-NES Alum Painted Shell 16 Pos Per Phase Bar 500 KCMIL Penta Bolt

Product Description

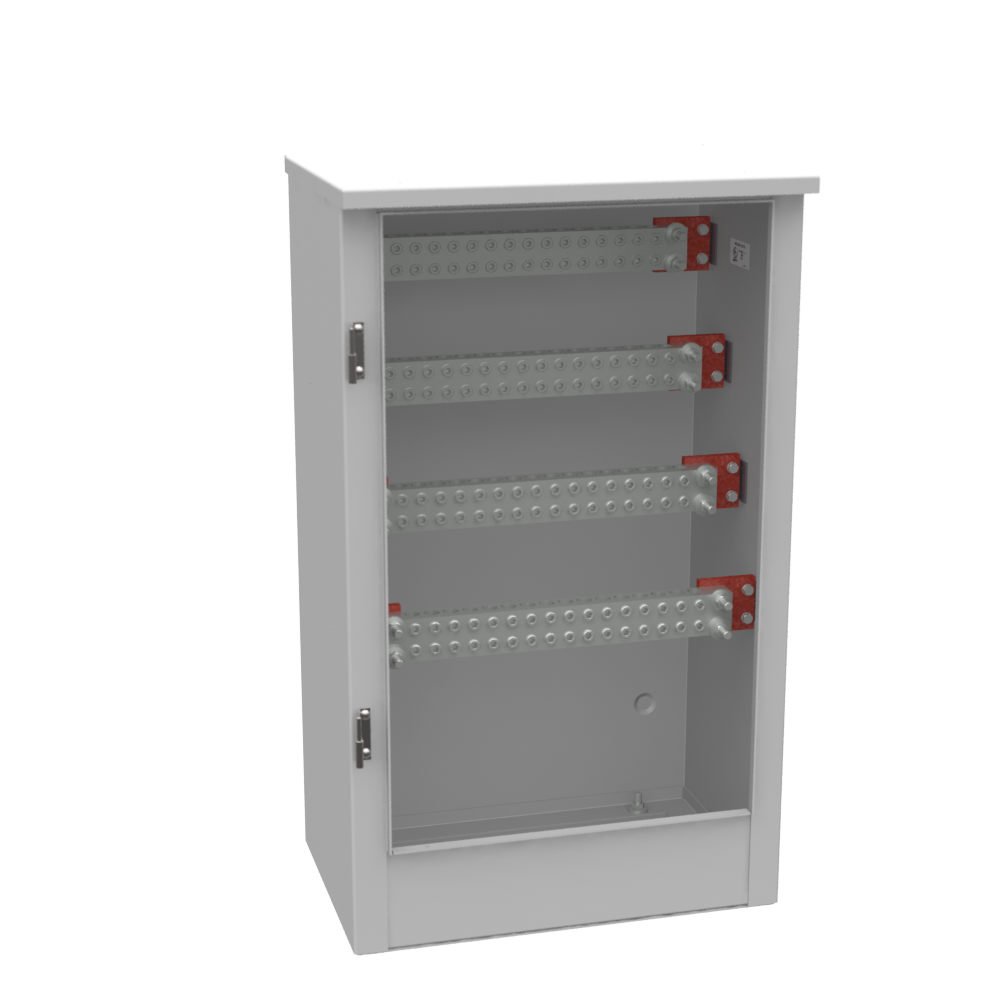

The Milbank UAP6094-O-NES is a terminal box designed for electrical applications. It features a lightweight aluminum construction and is ideal for terminating conductors. The box can accommodate a variety of electrical needs with its welded design and hinged cover for easy access.

• Application for terminating conductors
• Made in the USA with UL listing
• Mountable on pad or wall

Product Highlights

This terminal box is engineered with a NEMA Type 3R rating, capable of withstanding harsh environments. It includes a total of sixteen positions per phase and accommodates cables up to 500 KCMIL. Ideal for three-phase four-wire applications, it offers a 10,000 short circuit current rating and a 3000 ampere capacity.

Product Information

Standard Information

• Manufacturer: Milbank
• UPC: 784572703902

Technical Specifications

• Catalog Number: UAP6094-O-NES
• Material: Aluminum
• Country of Origin: United States
• Dimensions: 16L x 25.625W x 43H inches
• Door Type: Hinged Cover
• Construction: Welded
• NEMA Rating: Type 3R
• Mounting: Pad or Wall Mount
• Special Features: 3000 Ampere; Three Phase Four Wire; Penta Bolt
