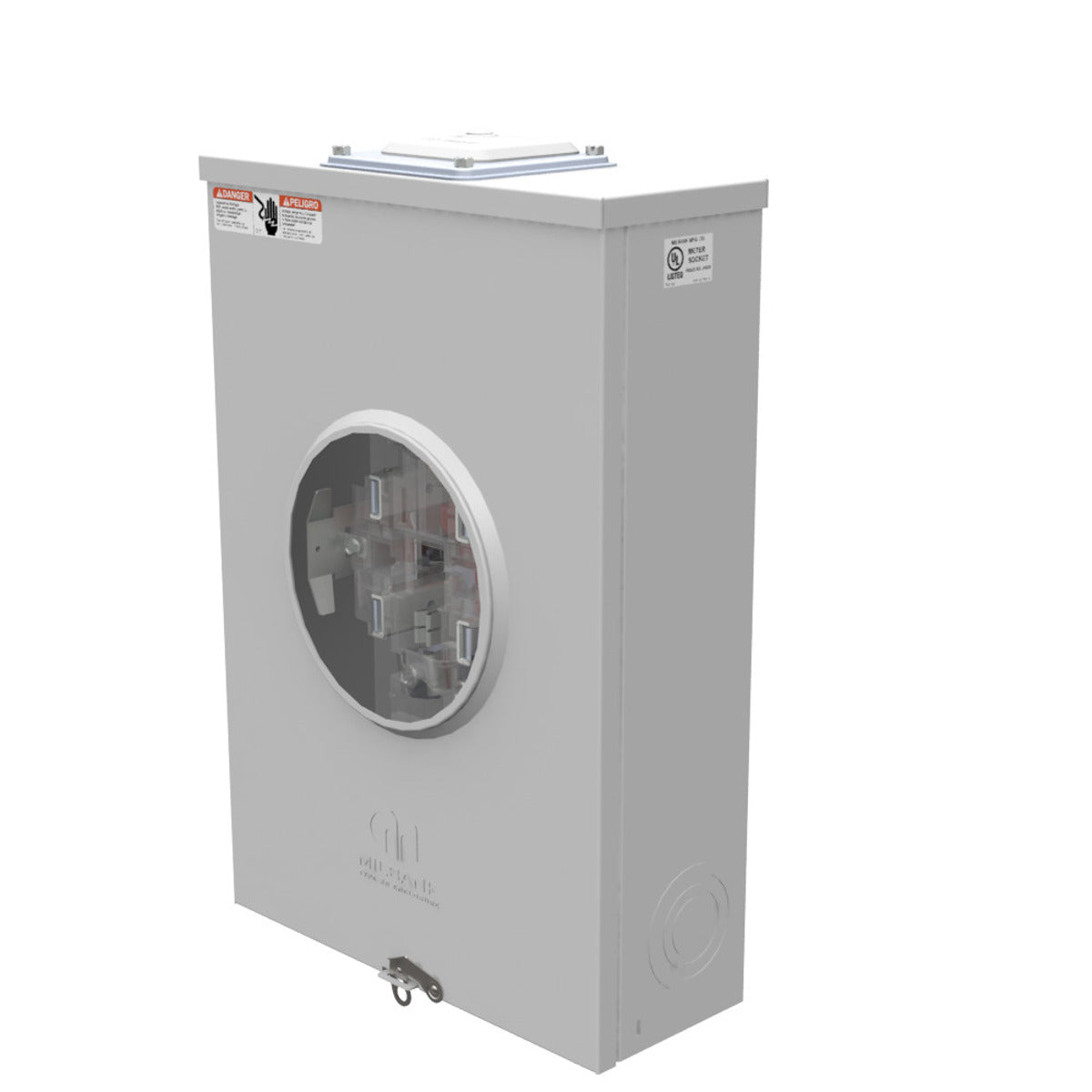

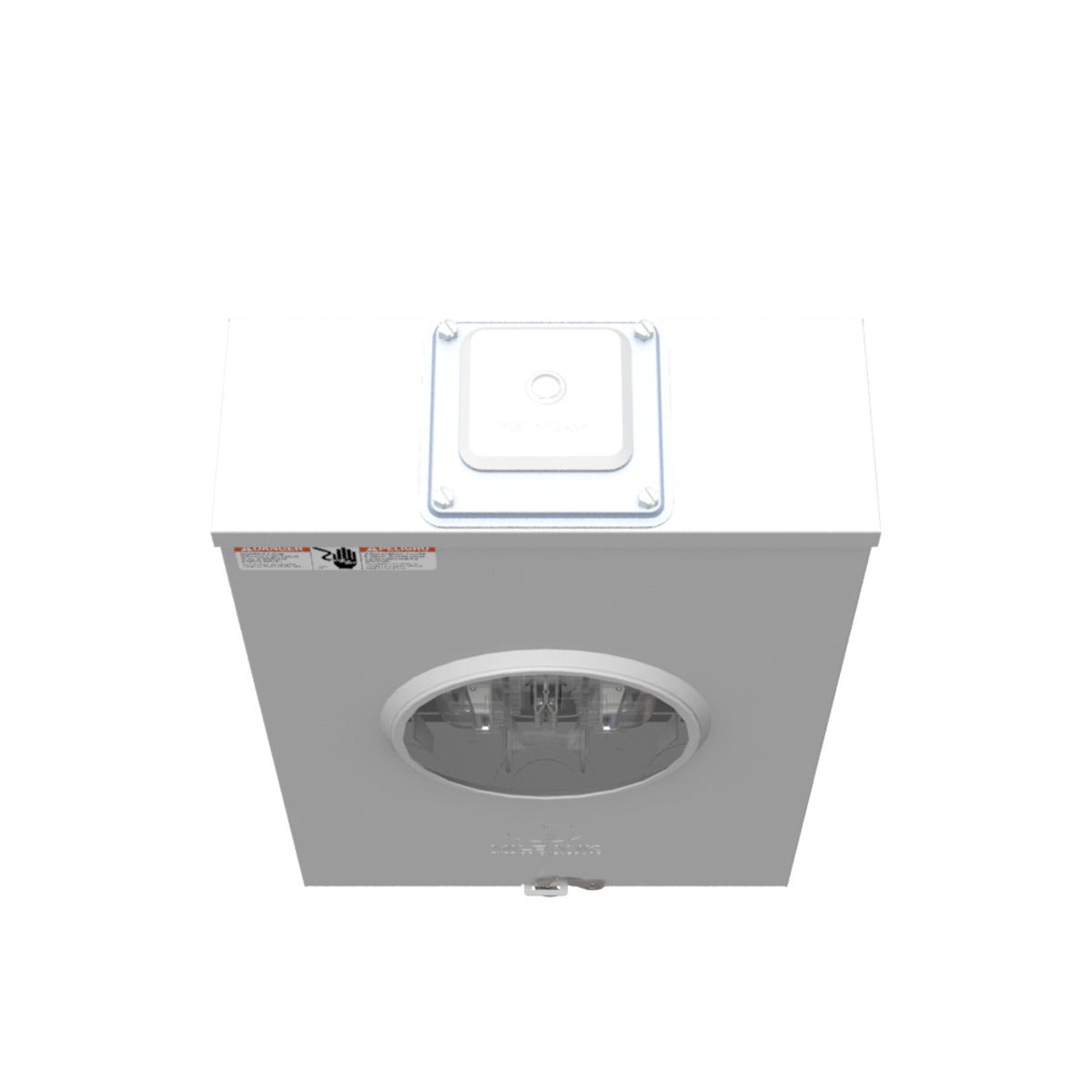

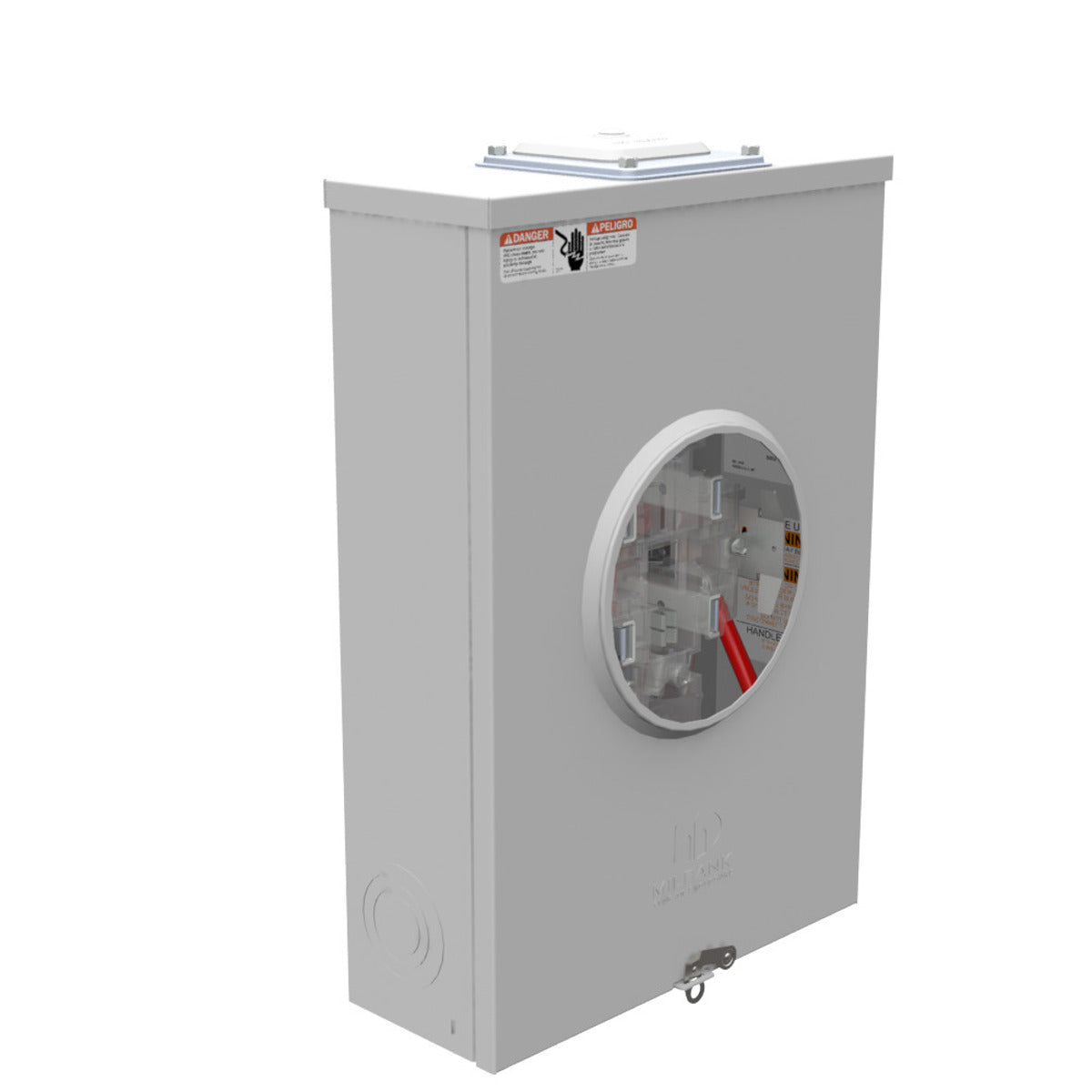

Milbank U9801-RXL-QG 4 Term Ringless Large Hub Opening Adapt to Small Closing Plate Quadplex Ground Lever Bypass

Product Description

The Milbank U9801-RXL-QG is a four-terminal ringless meter socket designed for overhead or underground service. This meter socket features a lever bypass and is made from G90 galvanized steel with a powder-coated finish. It is suitable for residential and commercial applications where reliable power distribution is necessary.

• Rated for up to 200 amps
• UL listed and meets NEMA 3R standards
• Compatible with 6 AWG to 350 KCMIL copper or aluminum wire

Product Highlights

This meter socket accommodates various installation needs with a surface mount design and multiple knockout options. It is a robust solution for utility services.

Product Information

Standard Information

• Manufacturer: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U9801-RXL-QG
• Amperage Rating: 200
• Voltage Rating: 600 Volts AC
• Frequency Rating: 60 Hz
• Dimensions: 4.844L x 10W x 18.5H inches
• Material: G90 Galvanized Steel with Powder Coat Finish
• Bypass Type: Lever
• Number of Jaws: 4 Terminal
• Enclosure Type: NEMA 3R
• Insulation: Glass Polyester
