Milbank U9701-X-QG-HSP single position meter socket 200 amp 600V 3 phase ringless lever 7 term OH UG quadplex stainless steel hasp

Product Description

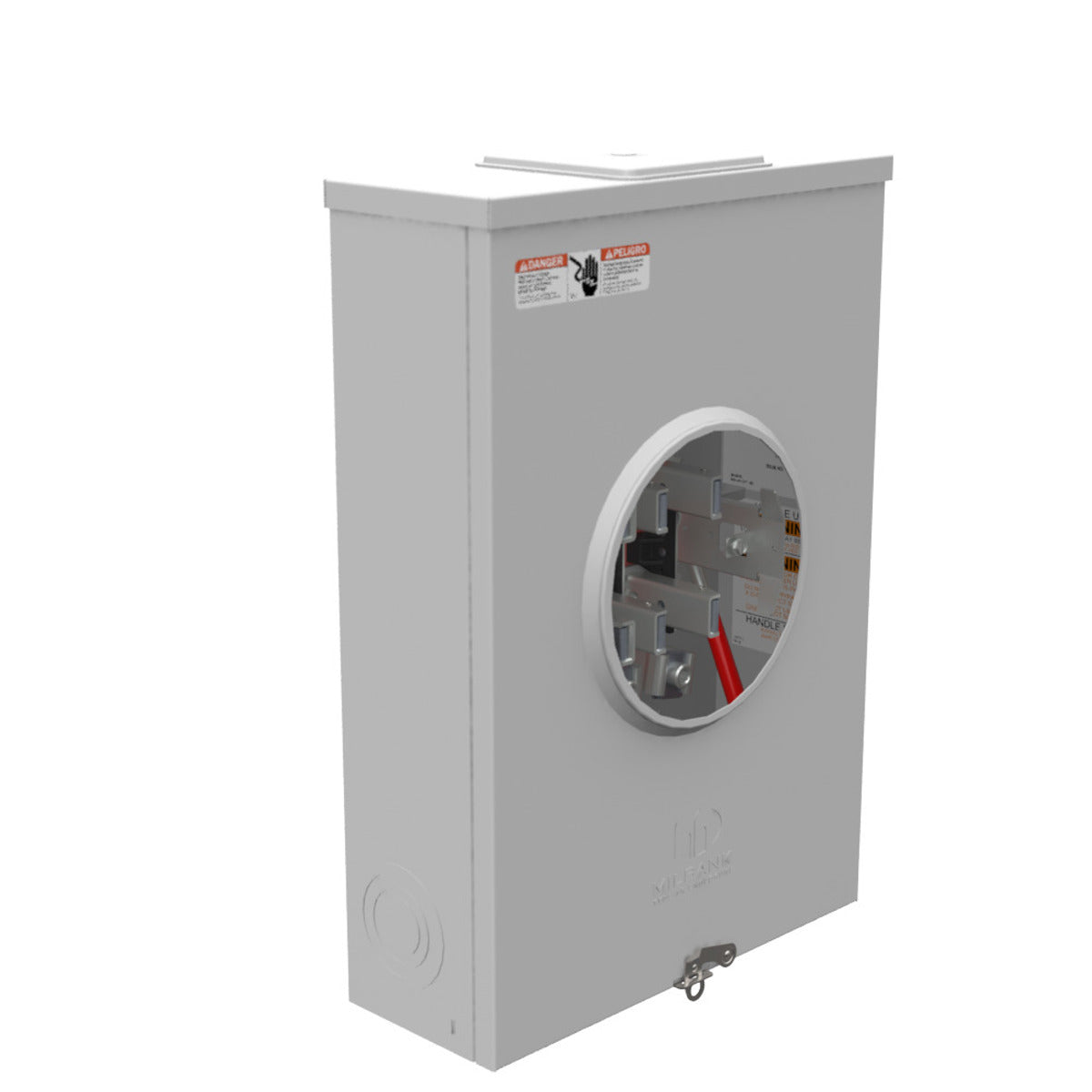

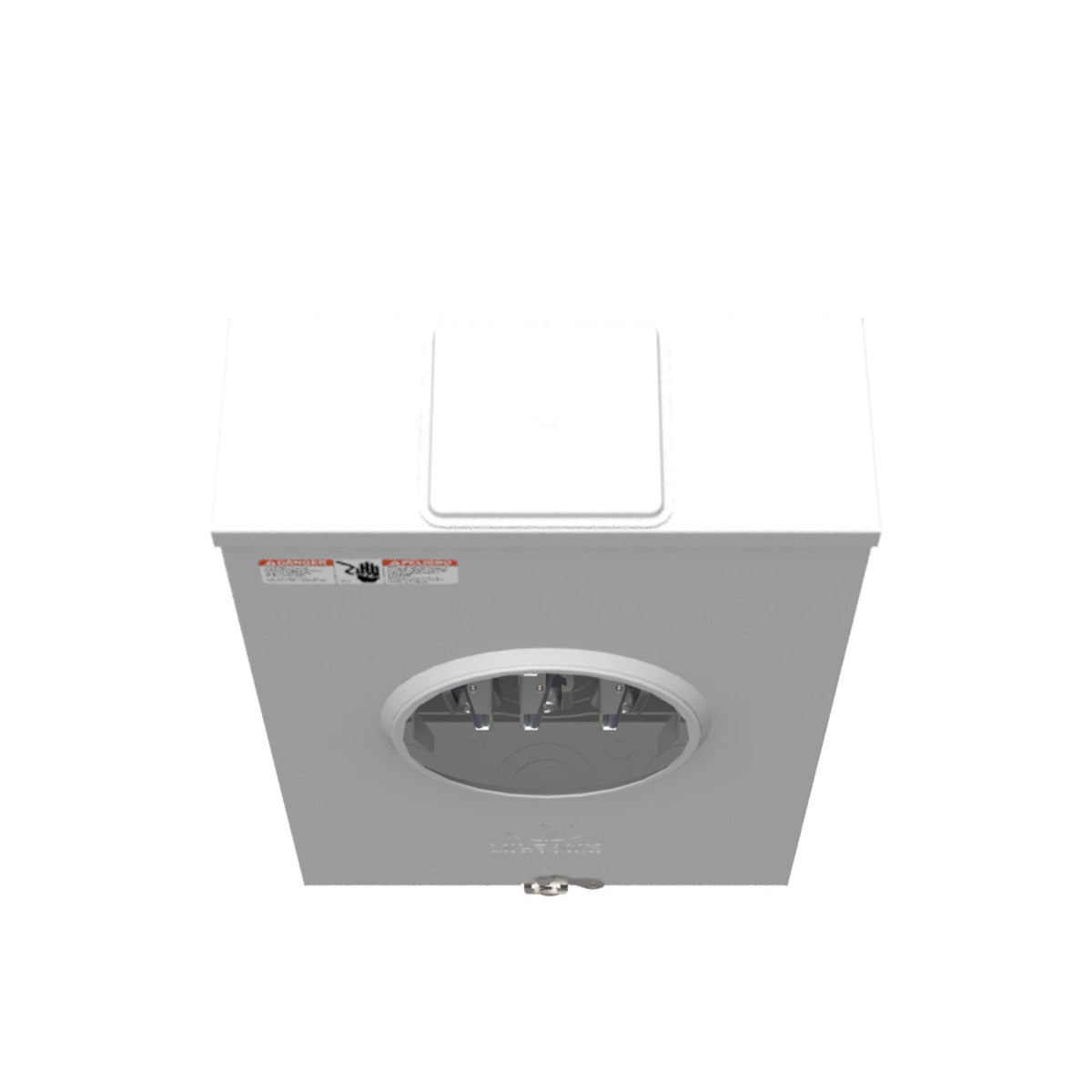

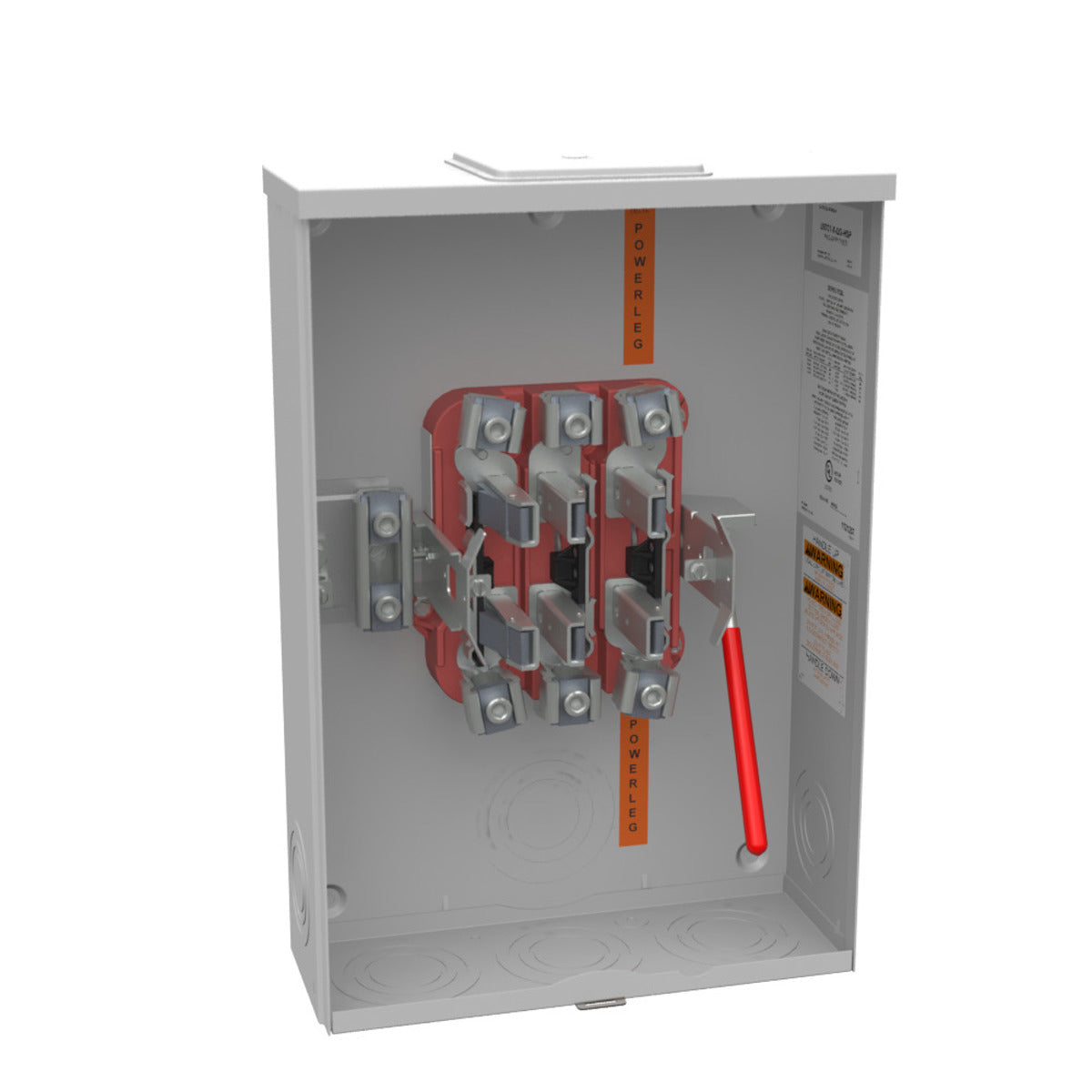

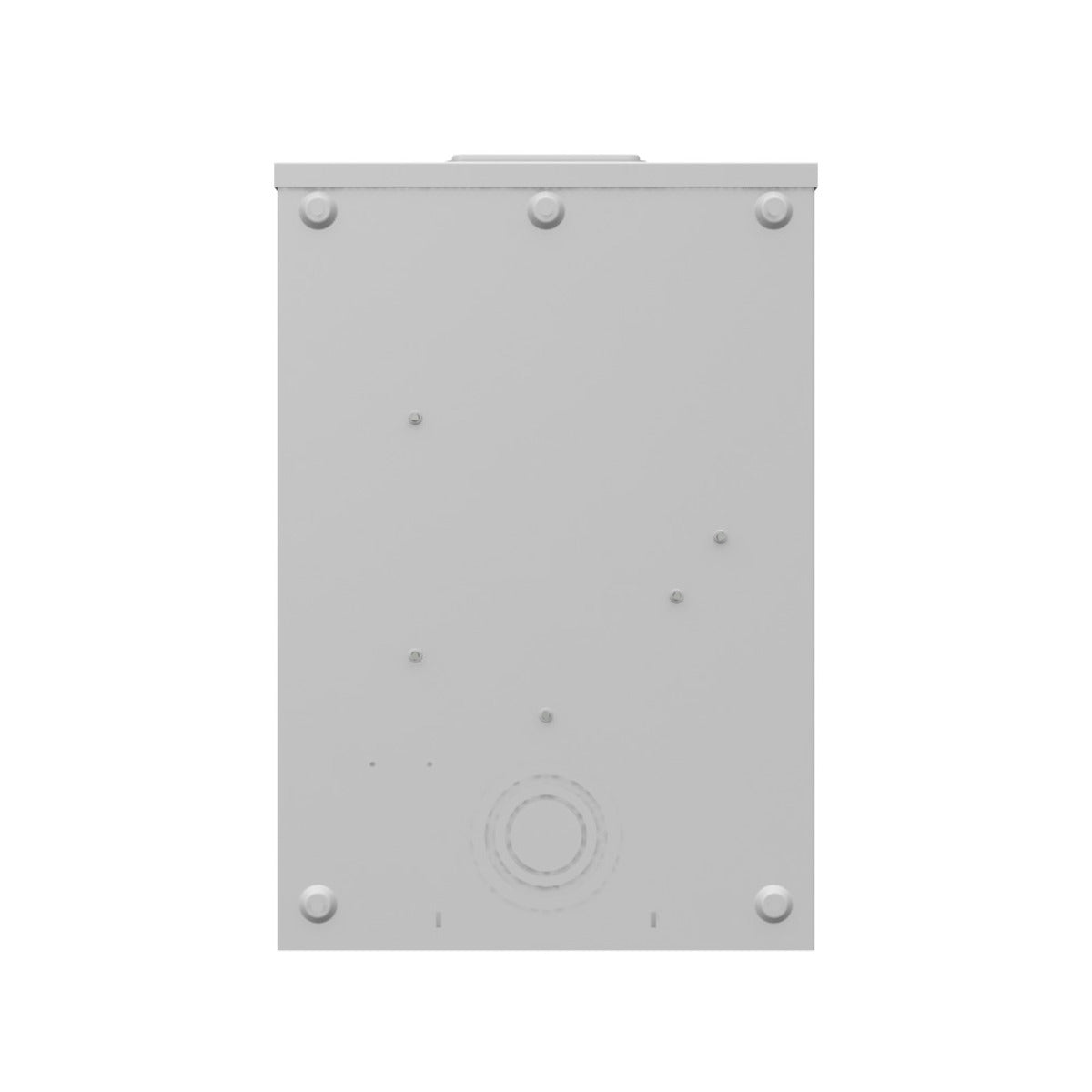

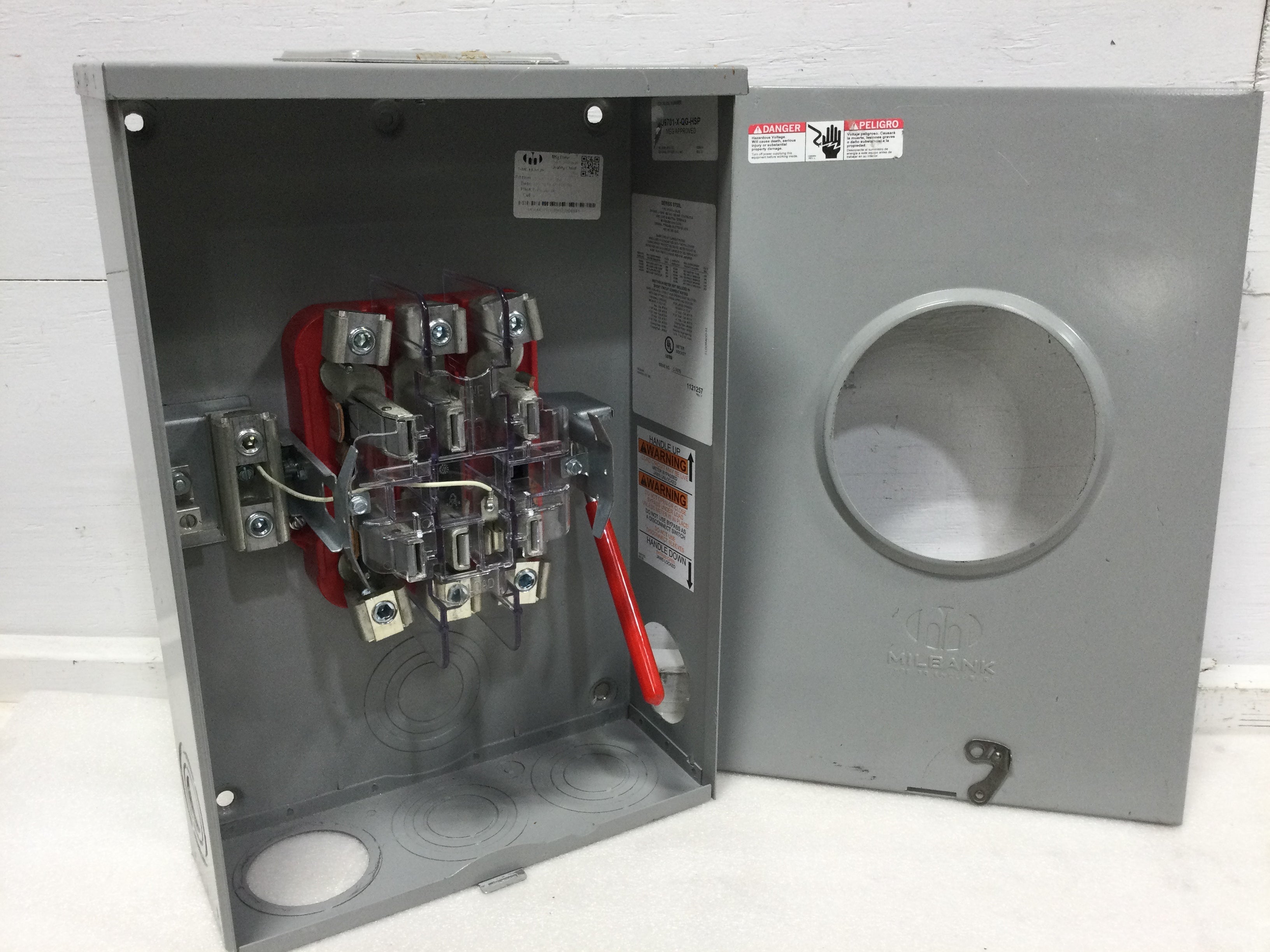

The Milbank U9701-X-QG-HSP is a 200 Amp, 600 Volt, 3 Phase, single position ringless meter socket designed for electrical metering applications. It features a 7-terminal configuration with a lever bypass and supports both overhead and underground cable entry. Constructed from G90 galvanized steel with a powder coat finish, this surface-mount unit includes a quadplex ground and a stainless steel hasp, ensuring durability and secure operation. It is UL Listed and rated Type 3R.

• 7-terminal ringless design with lever bypass for efficient power management.
• G90 galvanized steel enclosure with powder coat finish and Type 3R rating for outdoor durability.
• Supports overhead or underground cable entry, offering flexible installation options.

Product Highlights

This Milbank meter socket provides secure, 3-phase power metering with a durable, weather-resistant design and flexible cable entry.

Product Information

Standard Information

• Brand: MILBANK
• Manufacturer Part Number: U9701-X-QG-HSP
• Country of Origin: United States

Technical Specifications

• Catalog Number: U9701-X-QG-HSP
• Manufacturer: Milbank
• Brand: Milbank
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 200 Amp
• Application: Meter Socket
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation Material: Glass Polyester
• Mounting Type: Surface Mount
• Number of Jaws: 7 Terminal
• Phase: 3 Phase
• Standard: UL Listed; Type 3R
• UPC: 784572292772
• GTIN: 00784572292772
• Product Type: Ringless Meter Socket
• Terminal Type: Lay In
• Voltage Rating: 600 Volts AC
• ECCN: EAR99
• UNSPSC: 39121102
• Main Breaker: No Main Breaker
• Equipment Ground: Quadplex Ground
• Hub Style: Large Closing Plate
• Knockouts: True
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Main Breakers: 0
• Number of Meter Positions: 1 Position
• Number of Receptacles: 0
• Number of Sockets: 1
• Compliance: California Proposition 65
