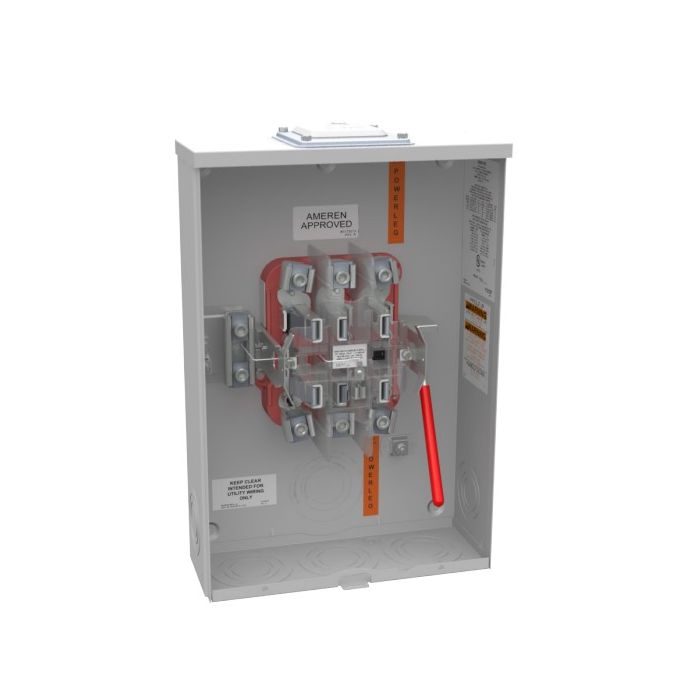

Milbank U9701-RXL-QG-AMS Ringless Meter Socket, 600 VAC, 200 A, 3 Phase, NEMA 3R

Product Description

Milbank U9701-RXL-QG-AMS is a ringless meter socket designed for overhead or underground service. It supports a voltage of 600 VAC and a maximum current of 200 amperes. This meter socket features a NEMA 3R enclosure, ensuring protection against weather conditions.

• Ringless design with lever bypass
• Large hub opening adapted to a small closing plate
• Seven terminal jaws for easy connections

Product Highlights

This meter socket is UL listed and Ameren approved, making it a reliable option for electricians and contractors.

Product Information

Standard Information

• Manufacturer: Milbank Manufacturing
• Catalog Number: U9701-RXL-QG-AMS

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 600 VAC
• Dimensions: 4.84 inches (L) x 13 inches (W) x 19 inches (H)
• Insulation: Glass Polyester
• Material: G90 Galvanized Steel with powder coat finish
• Bypass Type: Lever
• Number of Jaws: 7
• Cable Entry: Overhead or Underground
