Milbank U9701-RXL-QG 7 Term Ringless Large Hub Opening Adapt to Small Closing Plate Quadplex Ground Lever Bypass

Product Description

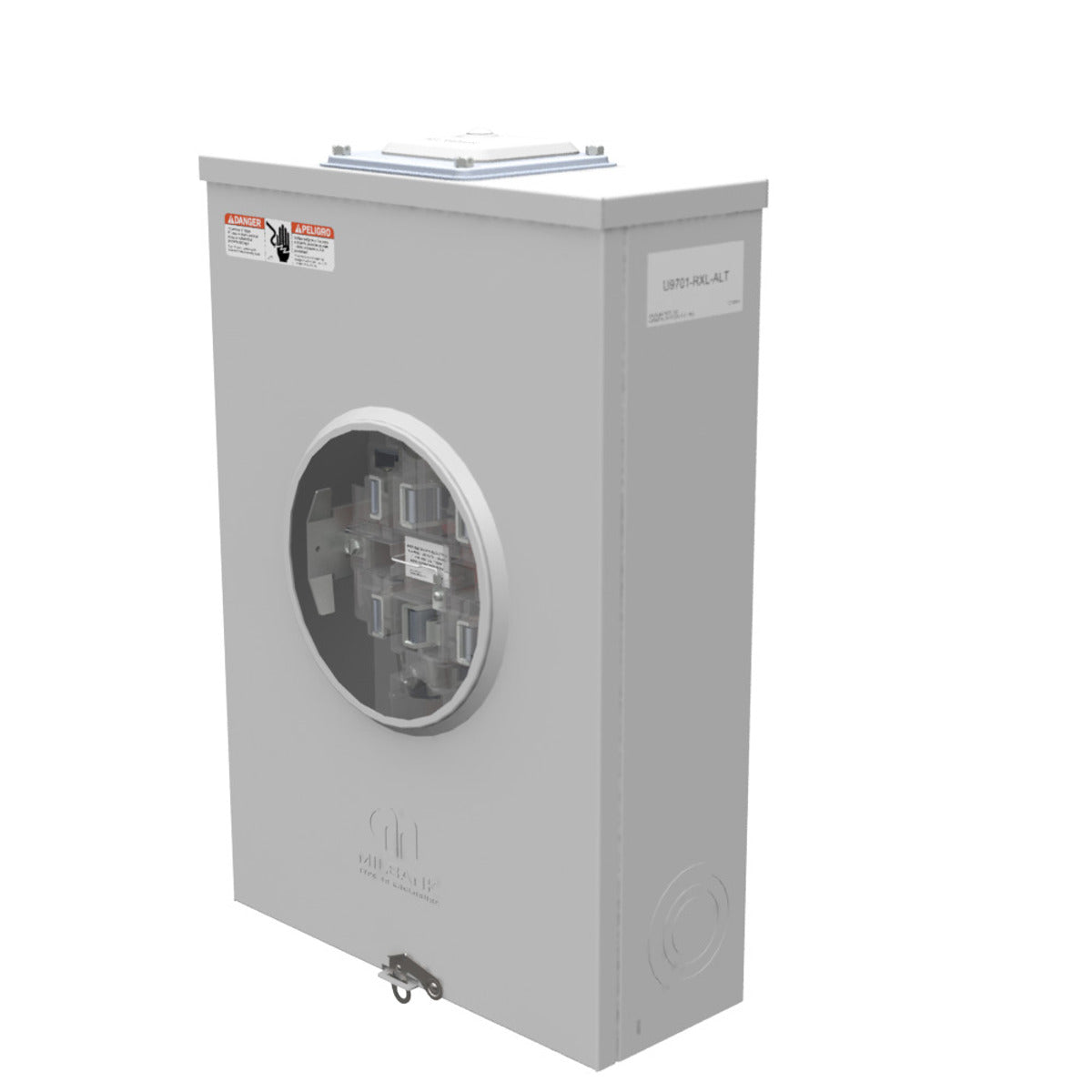

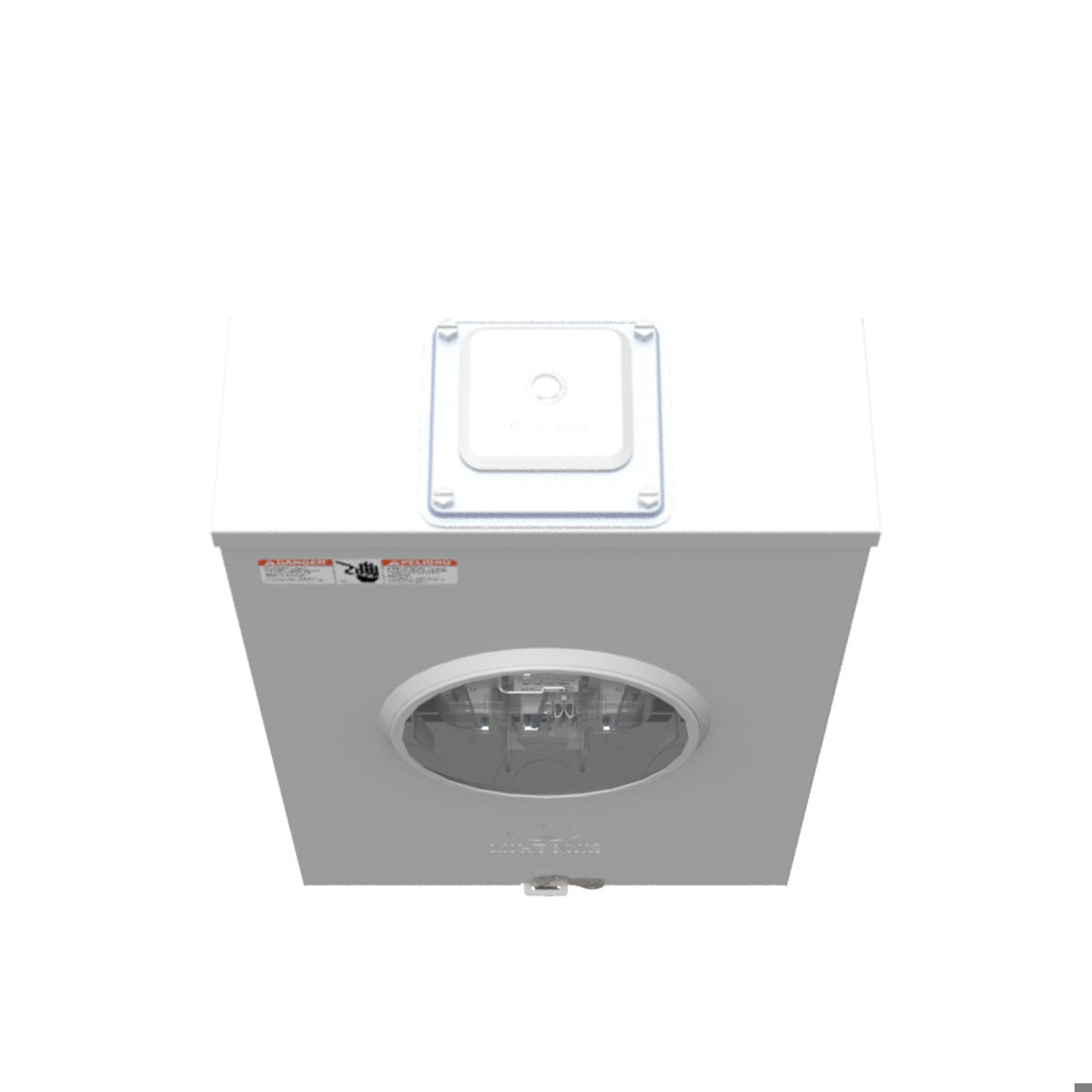

The Milbank U9701-RXL-QG is a seven-terminal ringless meter socket designed for both overhead and underground service. It features a large hub opening and is compatible with a small closing plate. This meter socket is suitable for 200 amps and is designed for three-phase systems. It is made from G90 galvanized steel that ensures durability and is UL listed for safety.

• Seven terminal jaws for versatile connections.
• Surface mountable with cable entry options for overhead or underground.
• Compatible with wires ranging from six AWG to 350 KCMIL copper or aluminum.

Product Highlights

The U9701-RXL-QG provides secure and reliable metering with a robust design, making it an ideal choice for residential and commercial applications.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U9701-RXL-QG
• Amperage Rating: 200
• Voltage Rating: 600 Volts AC
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Dimensions: 4.844 inches Length x 13 inches Width x 19 inches Height
• Number of Jaws: 7 Terminal
• Phase: 3
• Insulation: Glass Polyester
