Milbank U9701-RRL U9701-RRL 7 Term, Ringless, Large Hub Opening Adapt to Small, Lever Bypass

Product Description

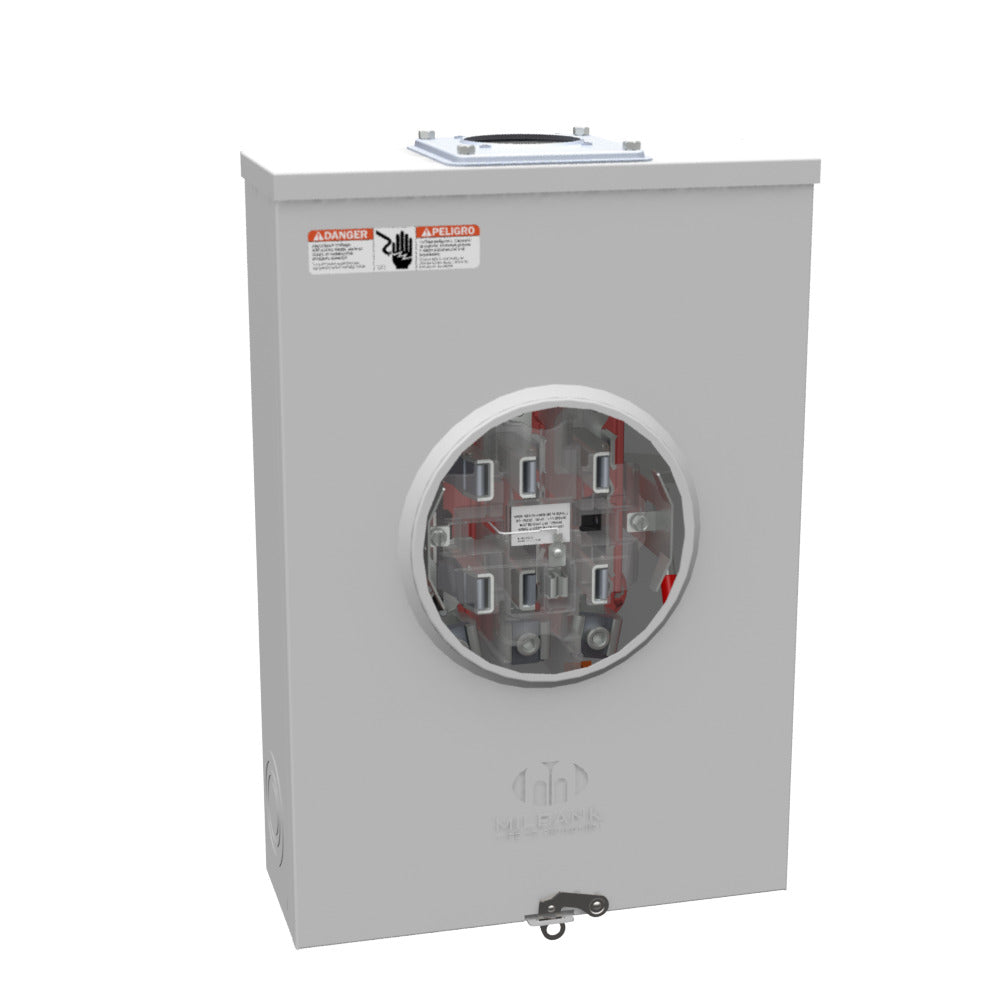

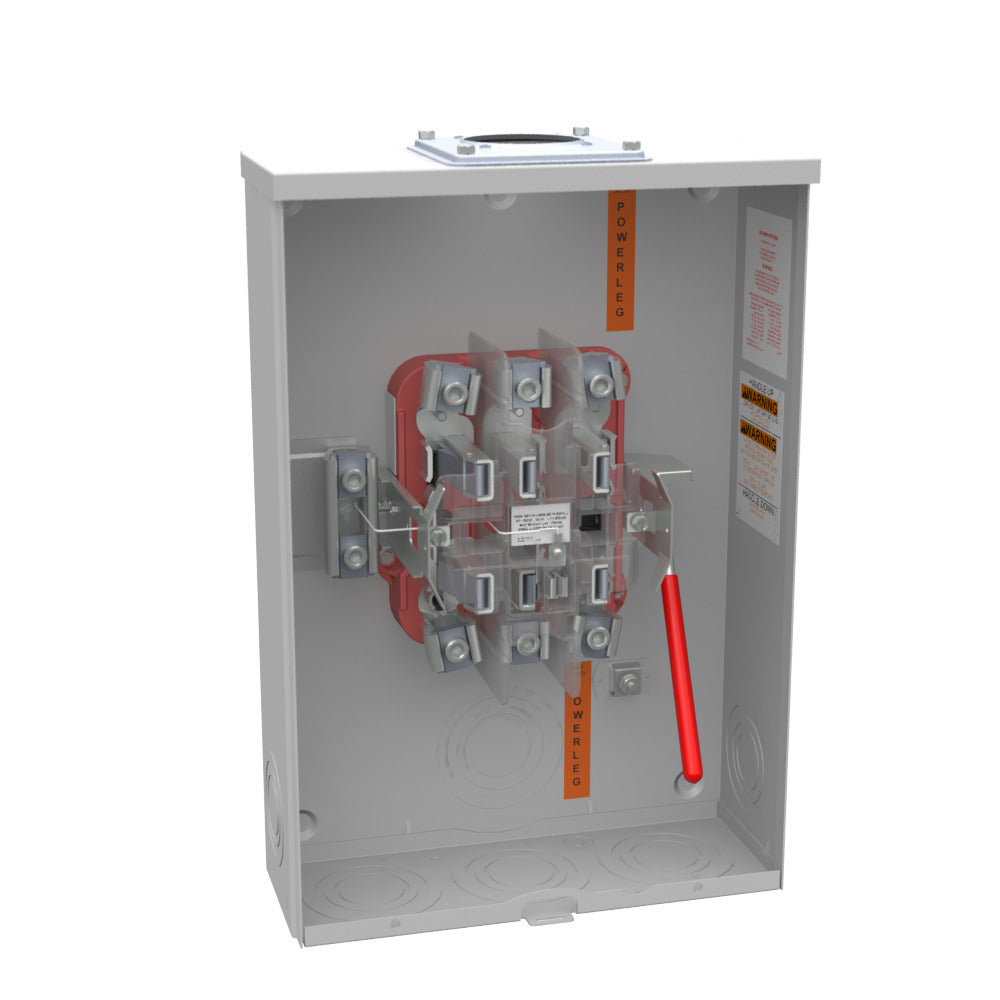

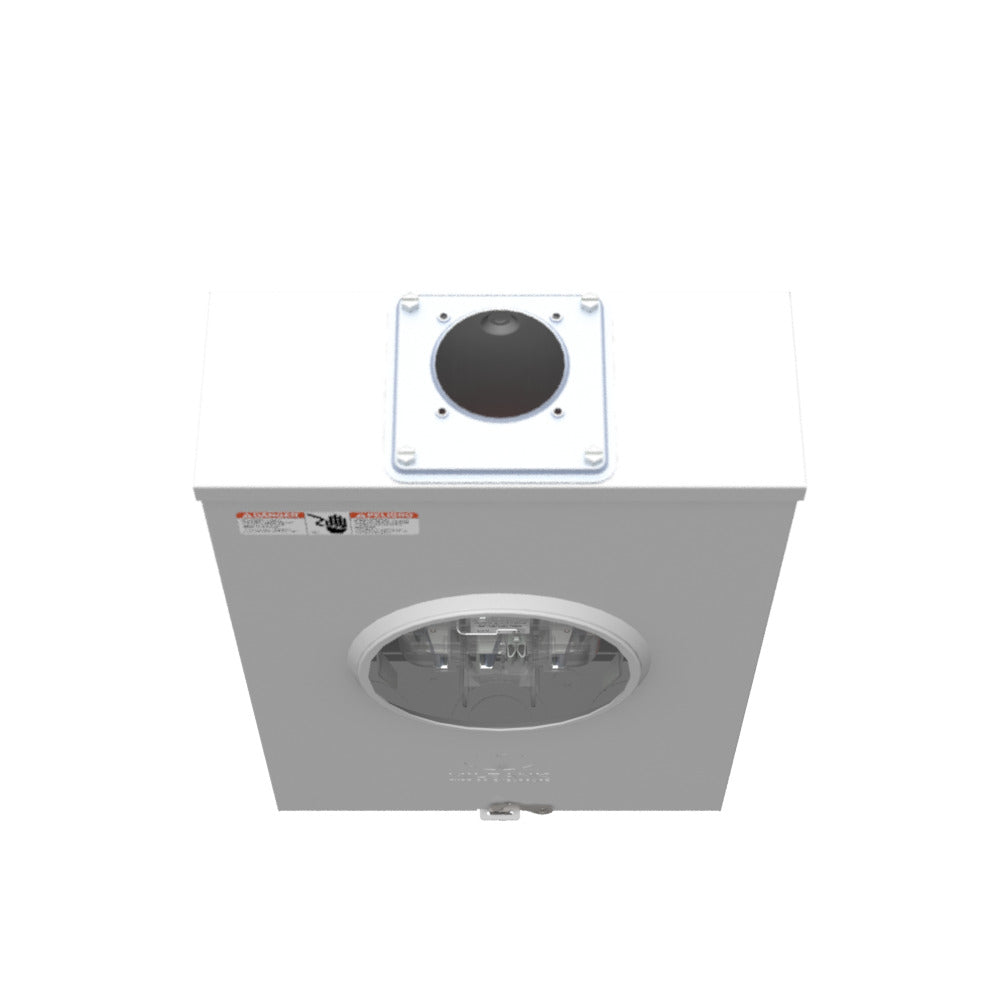

The Milbank U9701-RRL is a seven terminal ringless meter socket designed for overhead or underground cable entry. This product features a large hub opening that can adapt to a small hub opening with a lever bypass. It is suitable for a continuous amperage rating of two hundred amps and a voltage rating of six hundred volts alternating current. This socket is UL listed under Type 3R standards.

• Seven terminal design for efficient wiring.
• Constructed from G90 galvanized steel with a powder coat finish.
• Meets standards for outdoor use, providing protection against the elements.

Product Highlights

This meter socket is ideal for outdoor installations, providing reliability and safety in power distribution.

Product Information

Standard Information

• Brand: Milbank
• Manufacturer: Milbank

Technical Specifications

• Catalog Number: U9701-RRL
• Application: Meter Socket
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Bypass Type: Lever
• Cable Entry: Overhead or Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Number of Jaws: 7 Terminal
• Phase: 3
• Length: 4.844 inches
• Width: 13 inches
• Height: 19 inches
