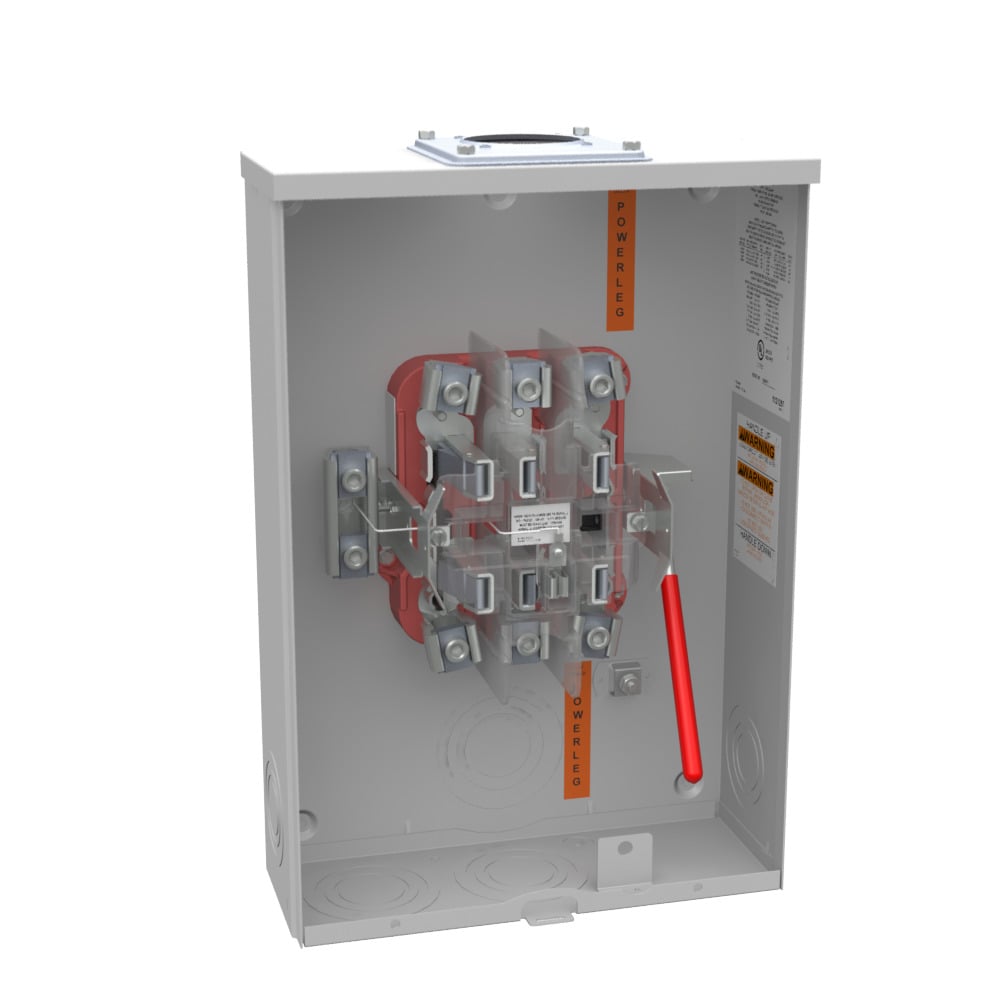

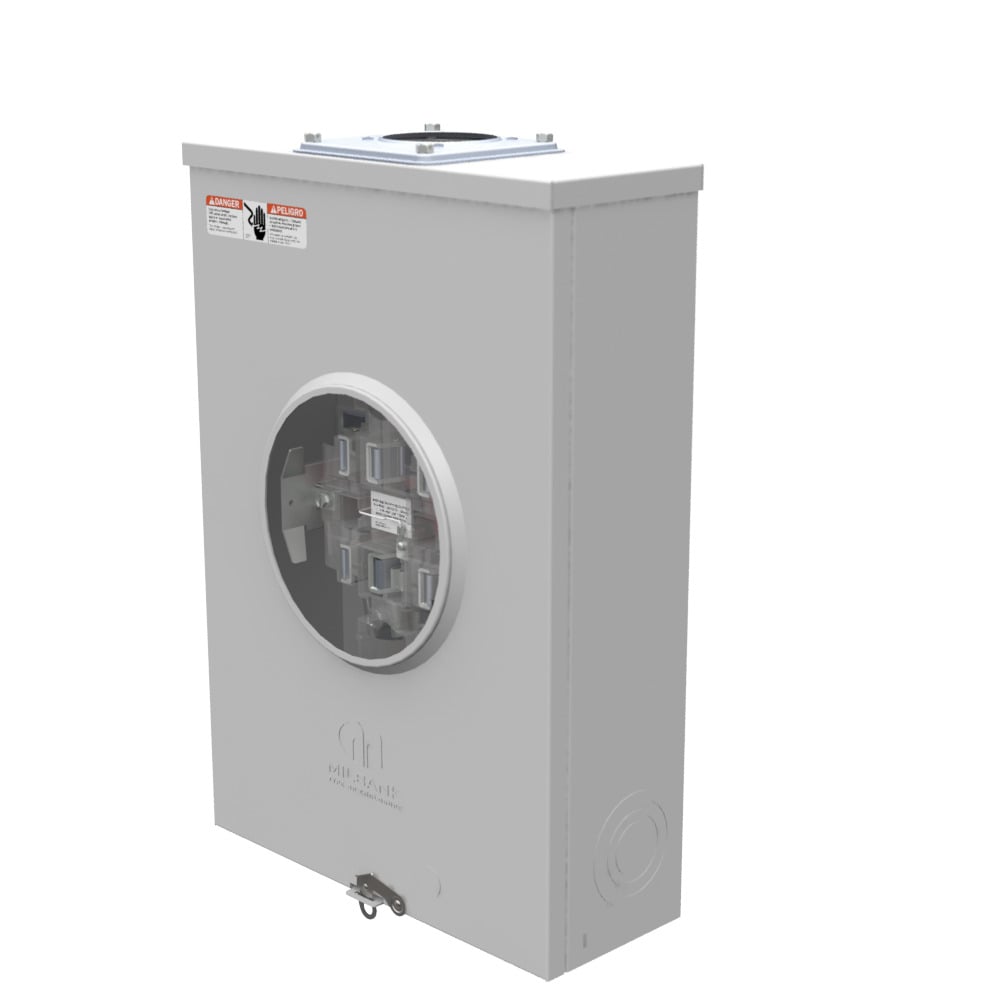

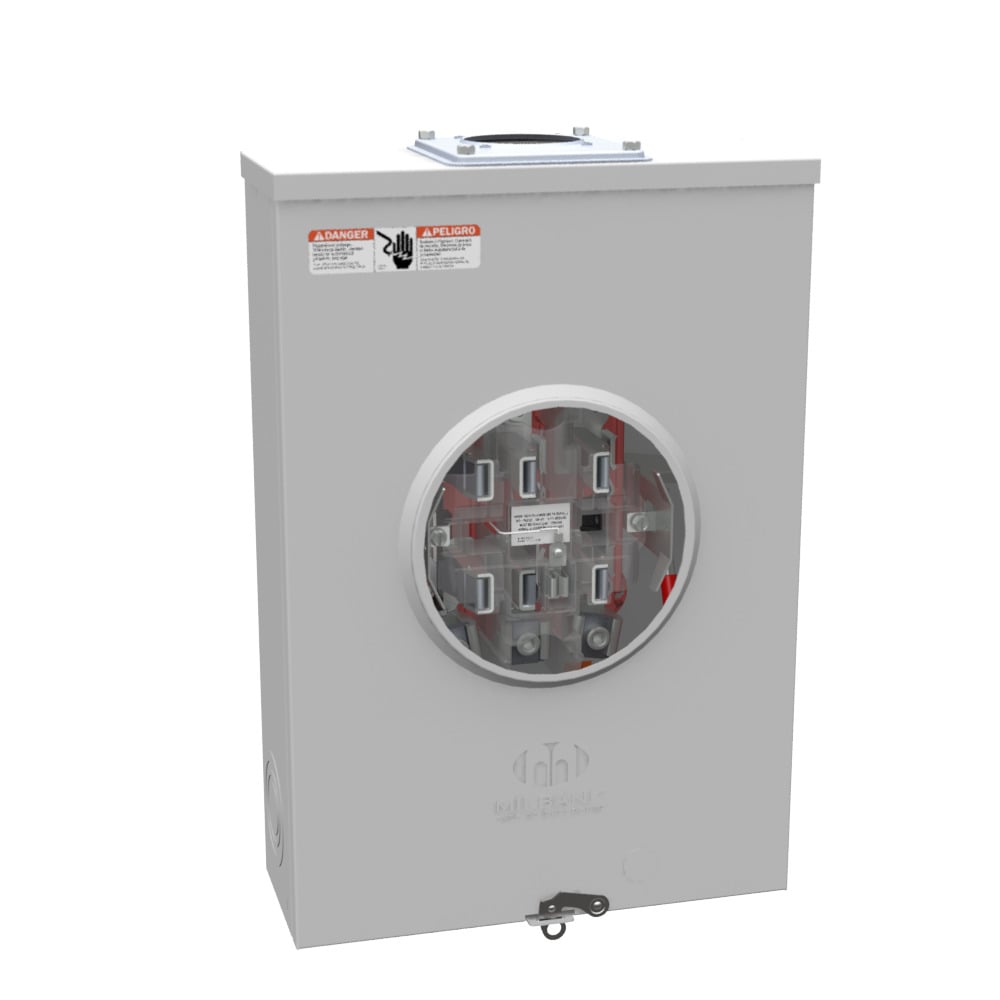

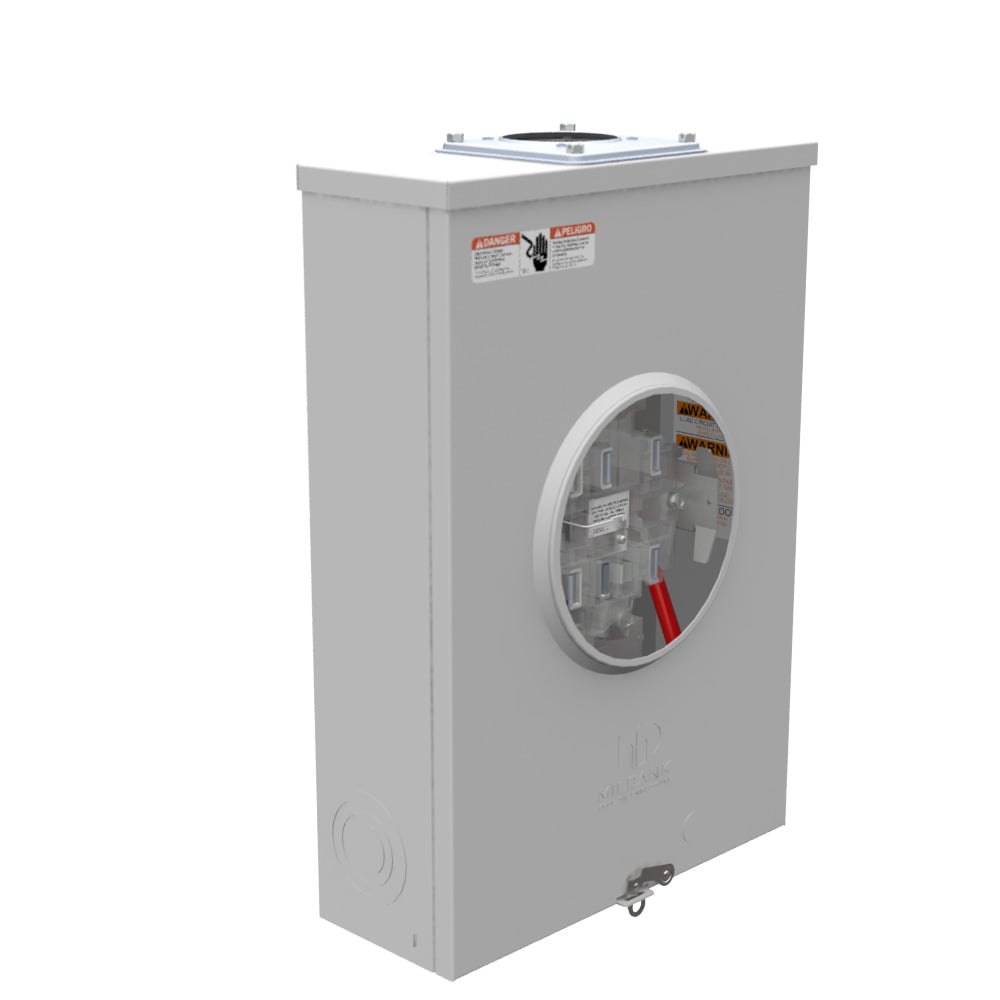

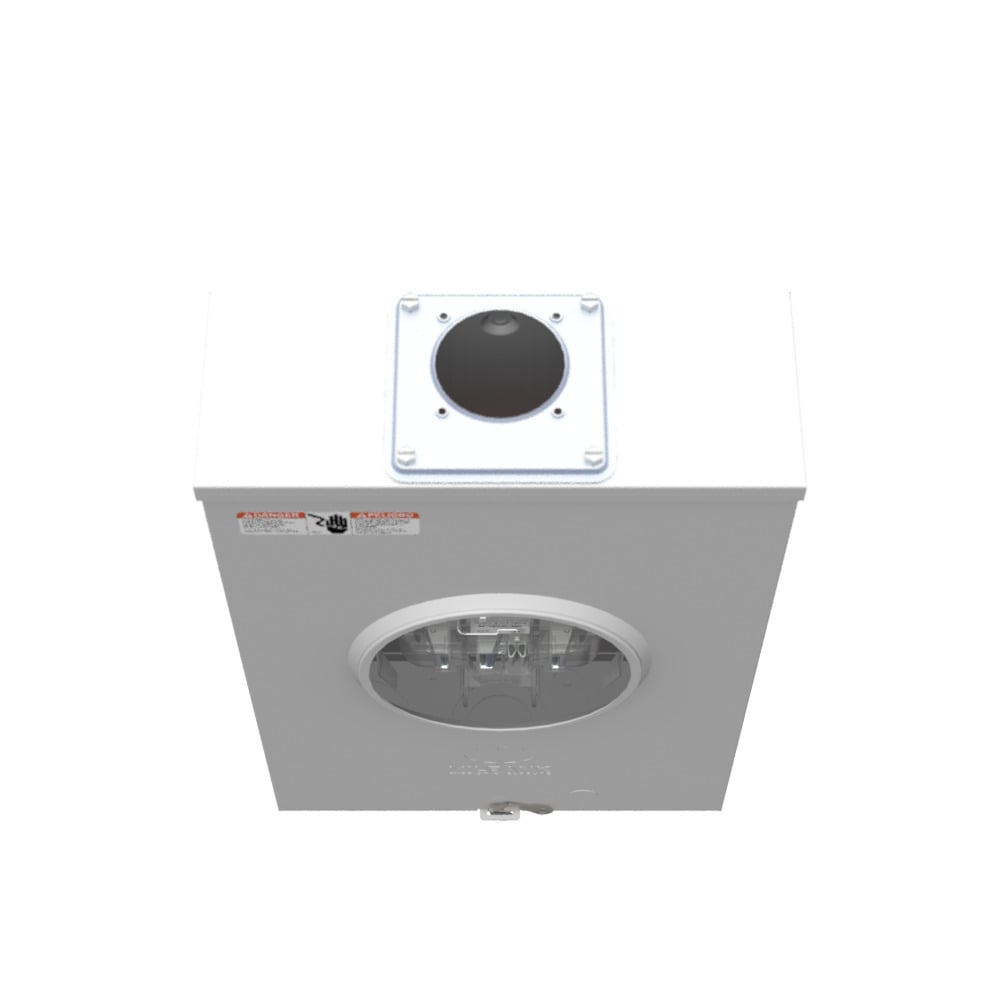

Milbank U9701-RRL-BLG 7 Term, Ringless, Large Hub Opening Adapt to Small, 7-8 inch Barrel Lock Ground with Bracket Provision, Lever Bypass

Product Description

The Milbank U9701-RRL-BLG is a meter socket designed for overhead or underground cable entry. This product features a large hub opening that adapts to a small, seven eighths inch barrel lock ground with a bracket provision. It is suitable for various electrical applications where meter sockets are required.

• 200 Amperage rating
• UL Listed; Type 3R enclosure
• Constructed with G90 galvanized steel

Product Highlights

Ideal for residential and commercial use. This product provides durable solutions for electrical metering. The lever bypass feature allows for efficient disconnecting without removing the meter.

Product Information

Standard Information

• Brand: Milbank
• Application: Meter Socket

Technical Specifications

• Catalog Number: U9701-RRL-BLG
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Amperage Rating: 200
• Number of Jaws: 7 Terminal
• Mounting: Surface Mount
• Height: 19 inches
• Width: 13 inches
• Length: 4.844 inches
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Country of Origin: United States
