Milbank U9551-RXL-5T9-IL Ringless Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Product Description

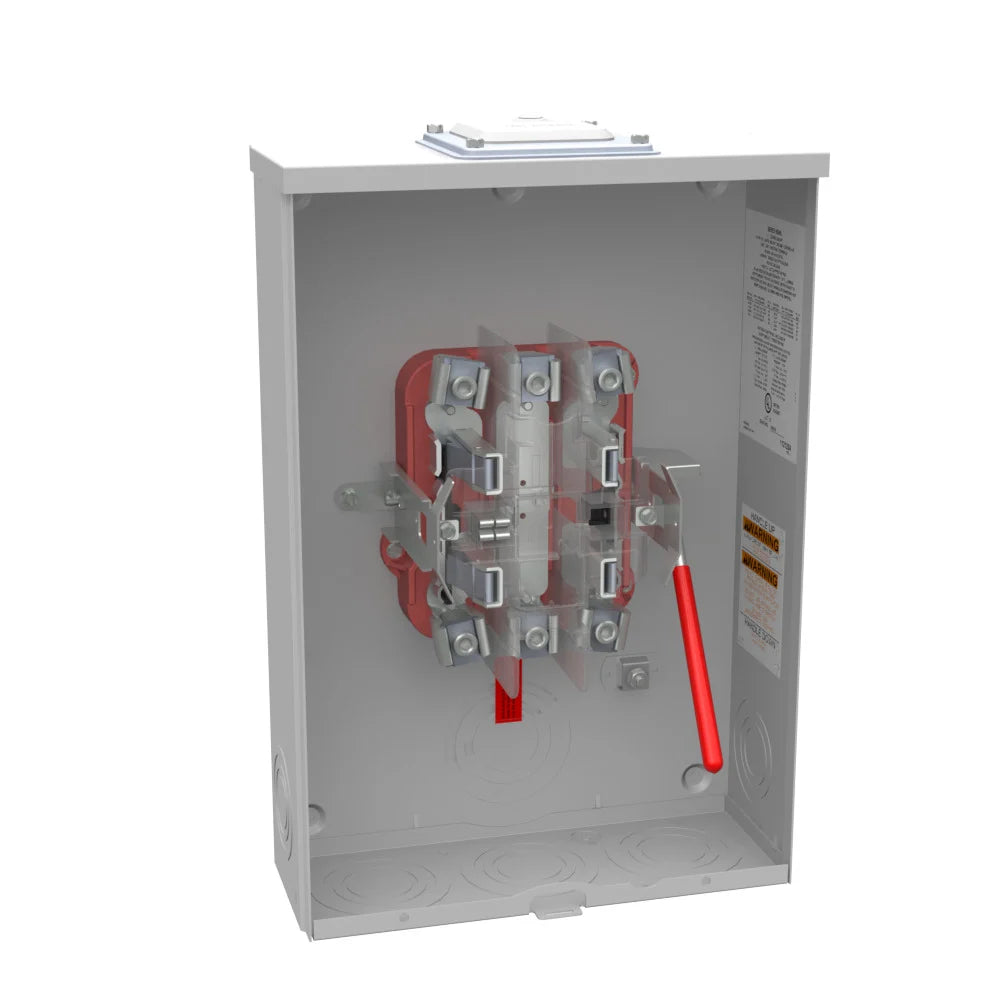

The Milbank U9551-RXL-5T9-IL is a ringless meter socket designed for efficient power distribution. It supports 600 VAC and features a 200 Ampere rating, accommodating overhead or underground cable entries. This meter socket boasts a large hub opening, optimized for use with a small closing plate, and includes a lever bypass for added convenience.

• Compatible with line and load side wire ranges from six AWG to three hundred fifty kcmil.
• Constructed from G90 galvanized steel with a powder coat finish suitable for outdoor applications.
• UL Listed and designed to meet NEMA 3R standards.

Product Highlights

This meter socket allows for easy installation and maintenance for electricians and utilities. Its robust design ensures reliable operation in various weather conditions.

Product Information

Standard Information

• Brand: Milbank
• MPN: U9551-RXL-5T9-IL

Technical Specifications

• Rated Voltage: 600 VAC
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Dimensions: 4.84 inches Length x 13 inches Width x 19 inches Height
• Insulation Type: Glass Polyester
• Number of Jaws: 5
• Application: Meter Socket
• Enclosure Type: NEMA 3R
