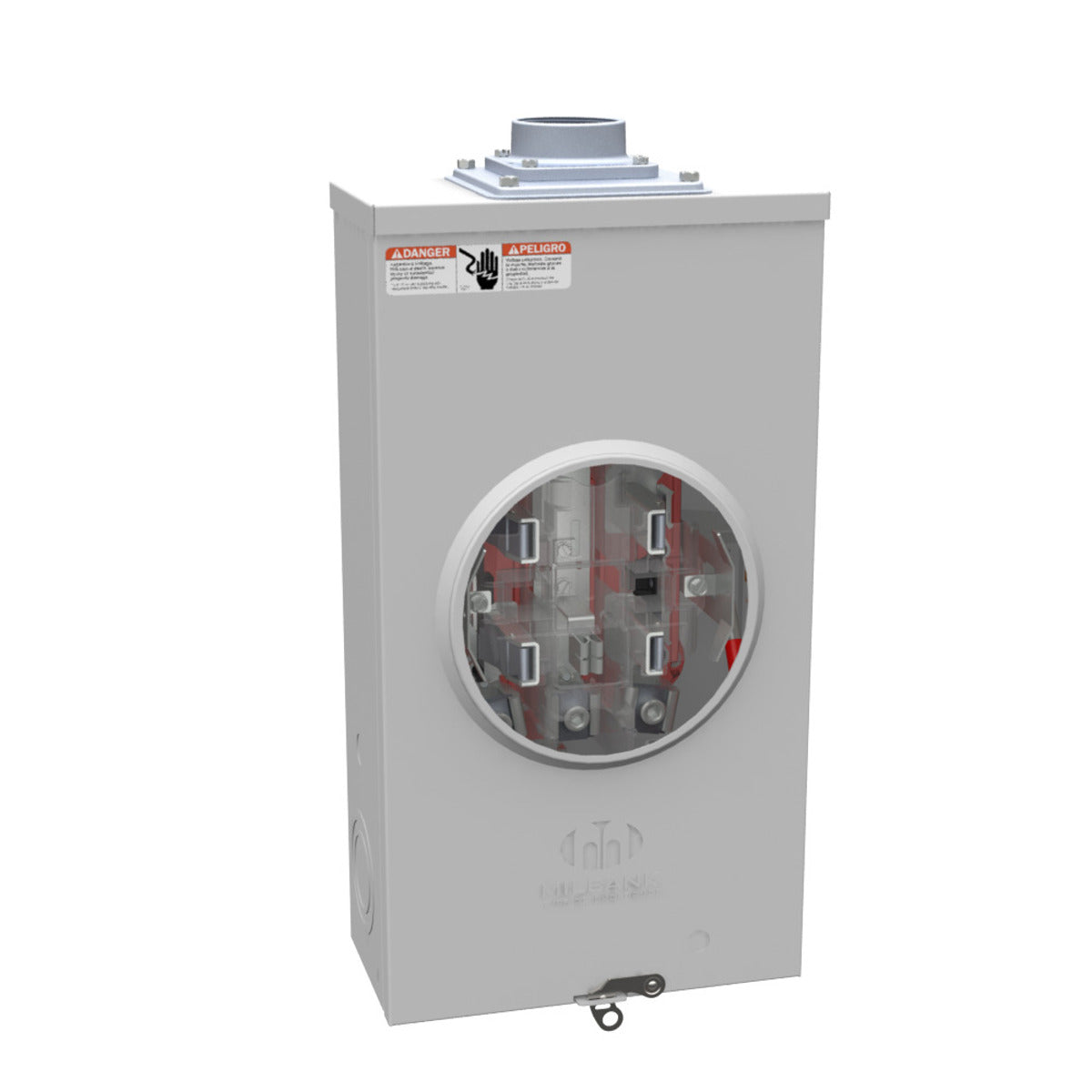

Milbank U9550-RDL-QG-AMS Ringless Meter Socket 600 VAC 200 A NEMA 3R

Product Description

The Milbank U9550-RDL-QG-AMS is a ringless meter socket designed for overhead cable entry. This product operates at a voltage rating of six hundred volts and supports a continuous amperage of two hundred amps. The NEMA three R enclosure provides protection from harsh weather conditions.

• Five terminal jaws for easy connection
• Lever bypass feature for improved functionality
• Large hub opening suitable for two-inch hubs

Product Highlights

The Milbank U9550-RDL-QG-AMS is UL Listed and designed to meet industry standards. It offers reliable performance in various applications.

Product Information

Standard Information

• Brand: Milbank
• MPN: U9550-RDL-QG-AMS

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Frequency Rating: 60 Hz
• Dimensions: 4.84 inches length x 10 inches width x 18.5 inches height
• Hub Size: Large Hub Opening Adapted to 2 Inch Hub
• Enclosure Type: NEMA 3R
• Wire Size Range: 6 AWG - 350 kcmil
• Material: G90 Galvanized Steel with Powder Coat Finish
• Insulation: Glass Polyester
• Mounting Type: Surface Mount
