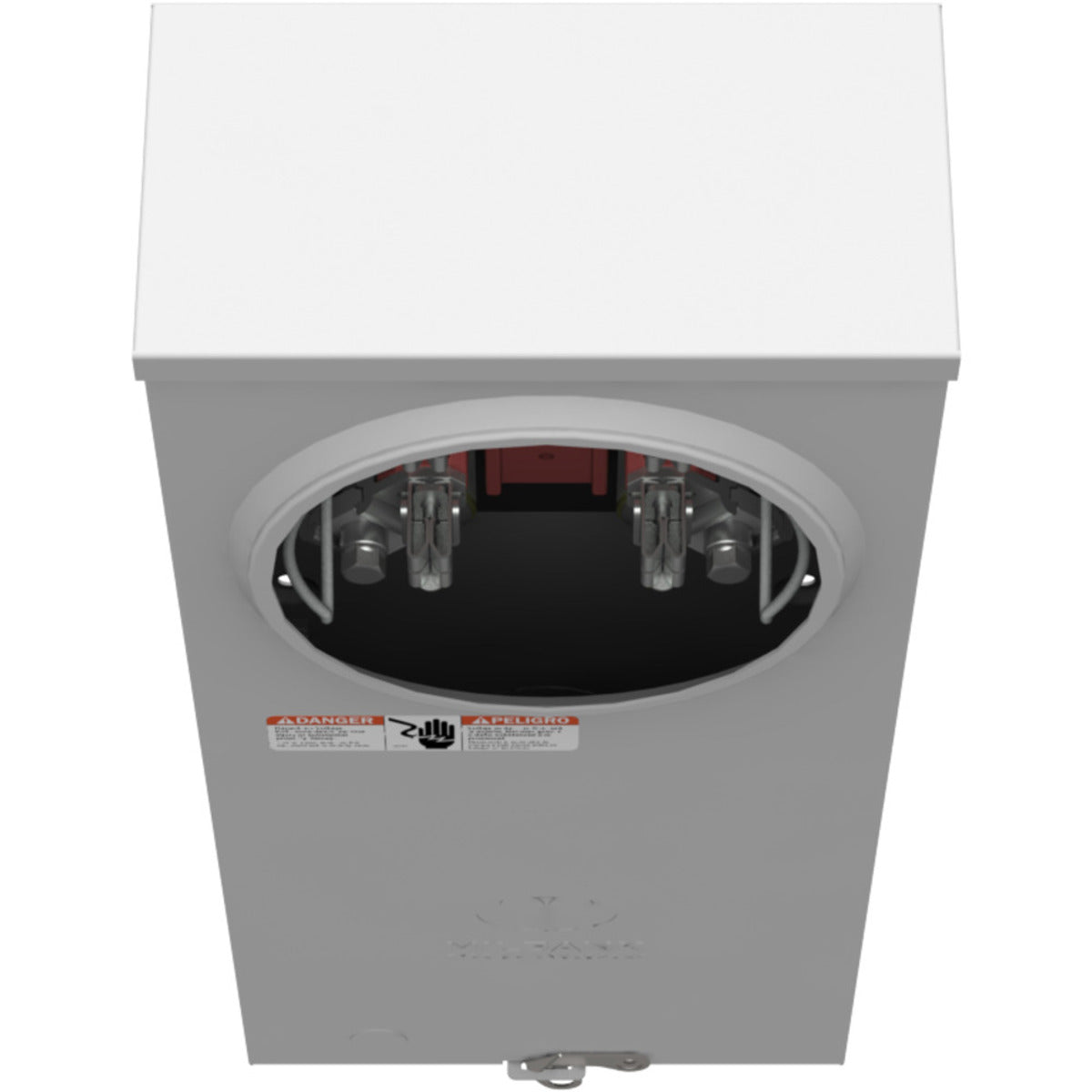

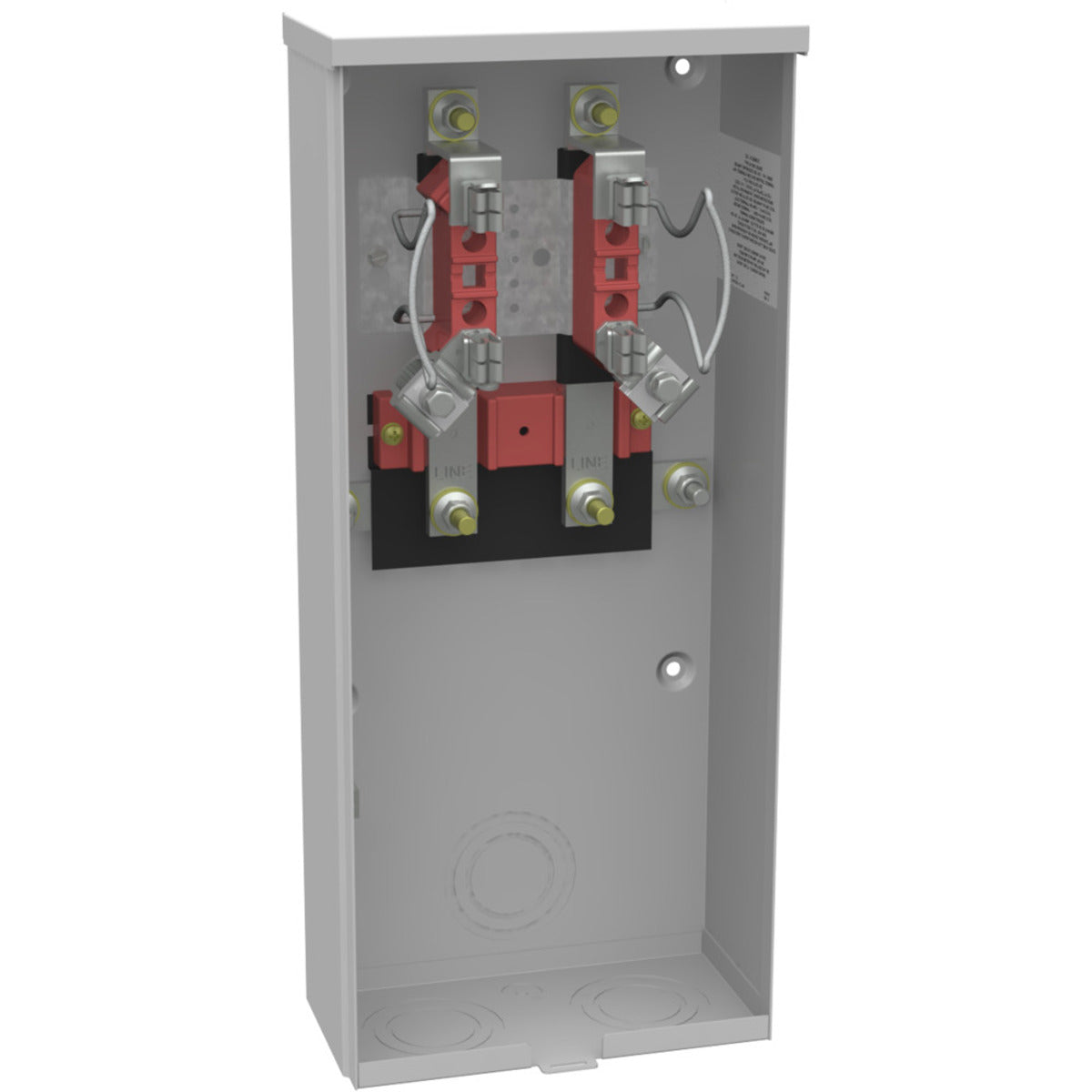

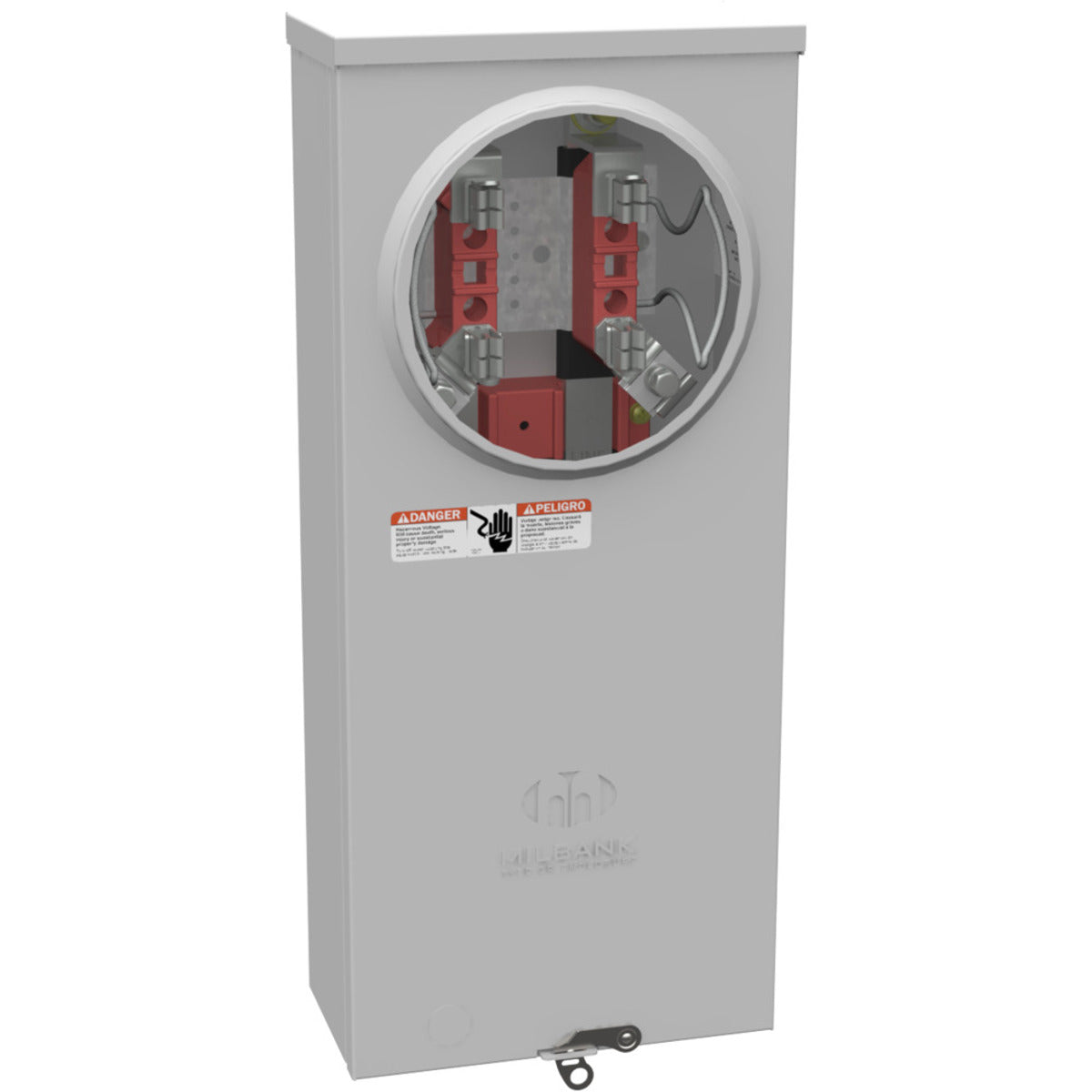

Milbank U9090-O 4 Term, Ringless, Plain Top, Stud Type

Product Description

The Milbank U9090-O is a ringless meter socket designed for efficient electrical connections. This model features a plain top design and four terminals for easy installation. Built from G90 galvanized steel, it is suitable for outdoor use and protects against the elements.

• 200 amps amperage rating
• 600 volts alternating current rating
• UL Listed and Type 3R compliant

Product Highlights

This meter socket is ideal for utility applications, providing reliable performance in various settings. The underground cable entry simplifies connections in landscapes where above-ground installations are not feasible.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U9090-O
• Application: Meter Socket
• Voltage Rating: 600 Volts Alternating Current
• Amperage Rating: 200 Amps
• Frequency Rating: 60 Hertz
• Cable Entry: Underground
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Material: G90 Galvanized Steel With Powder Coat Finish
• Terminals: Lay In
• Number of Jaws: 4 Terminal
• Phase: 1
• Mounting: Surface Mount
• Insulation: Glass Polyester
• Size: 4.5L x 9W x 20.75H
• Standard: UL Listed; Type 3R
• UPC: 784572142367
• GTIN: 00784572142367
