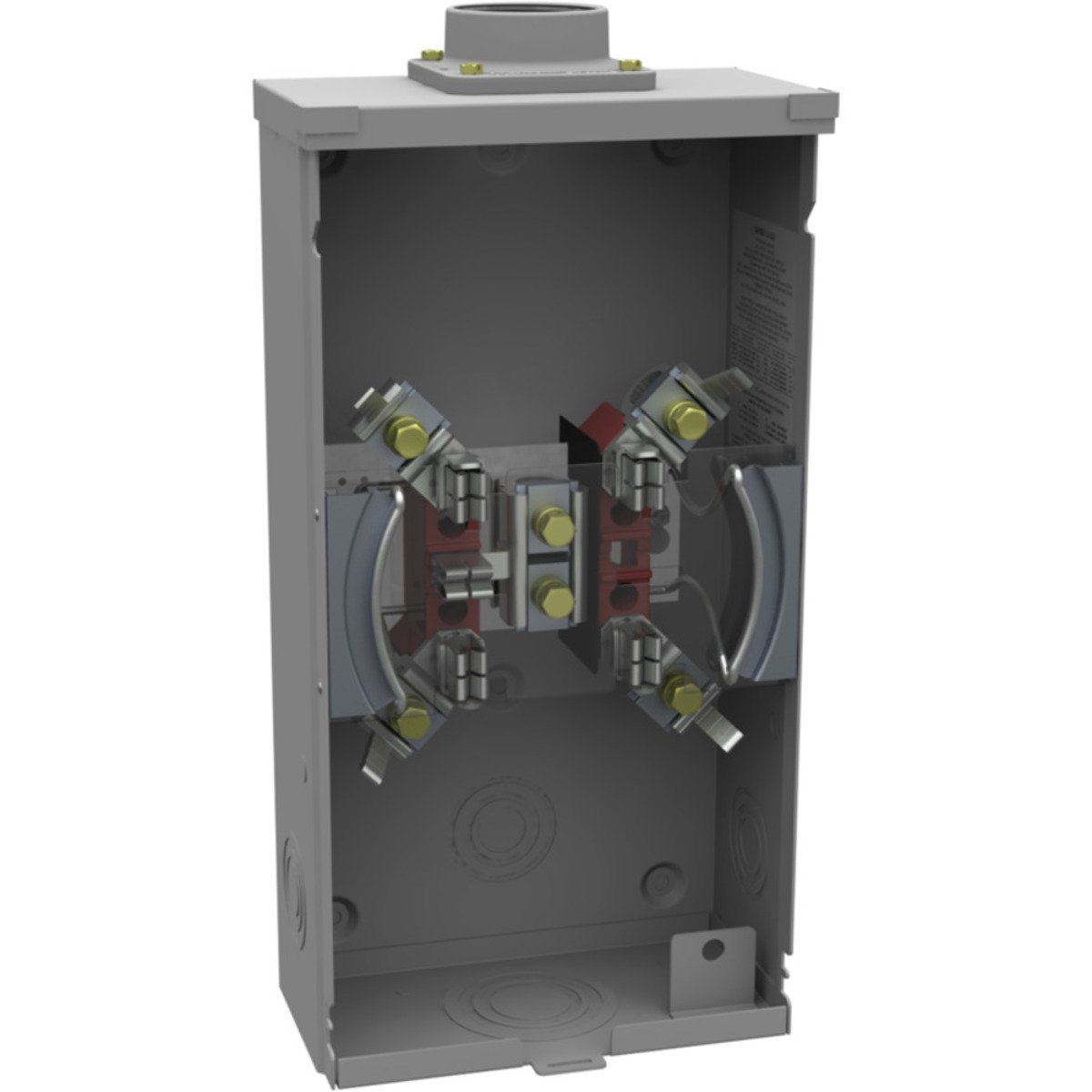

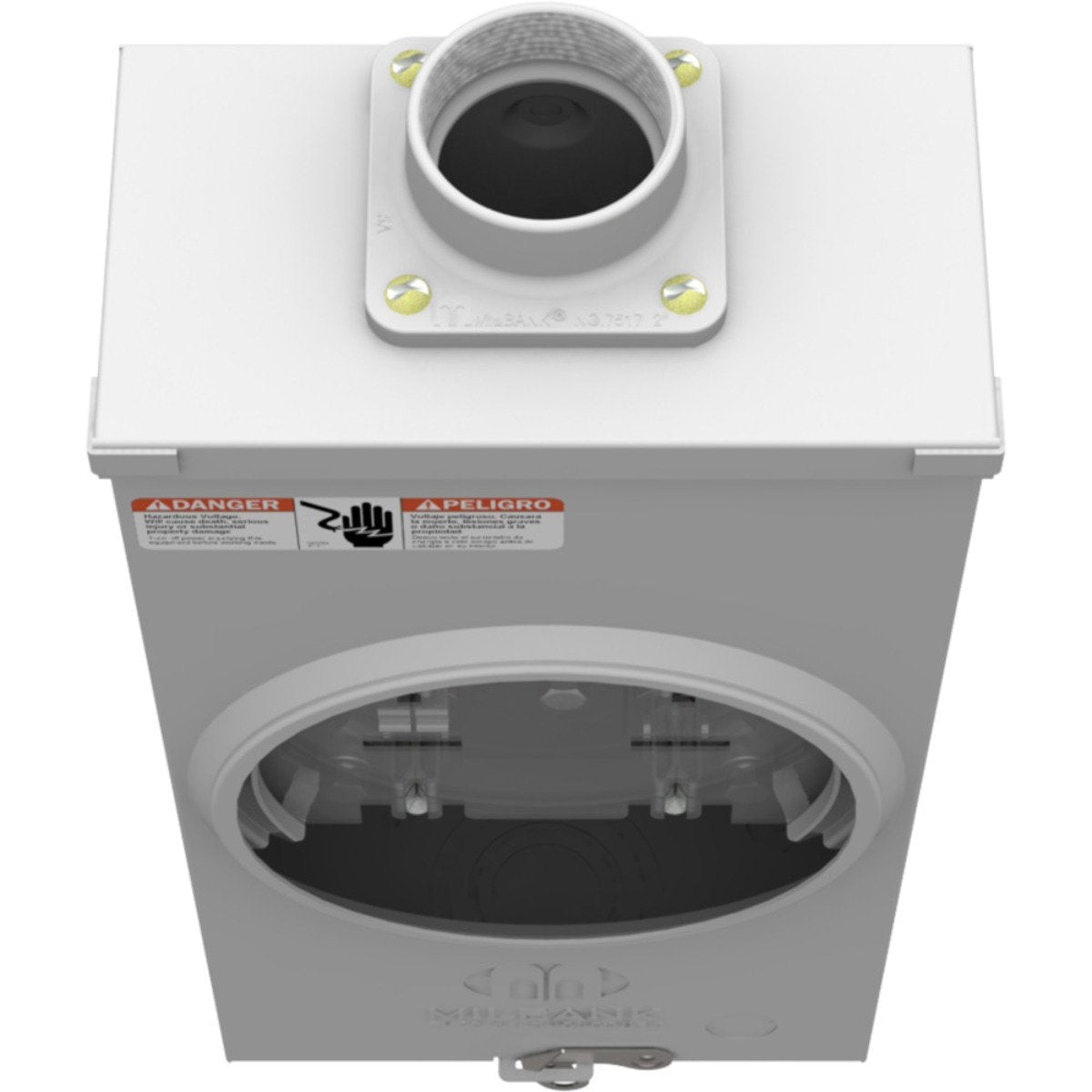

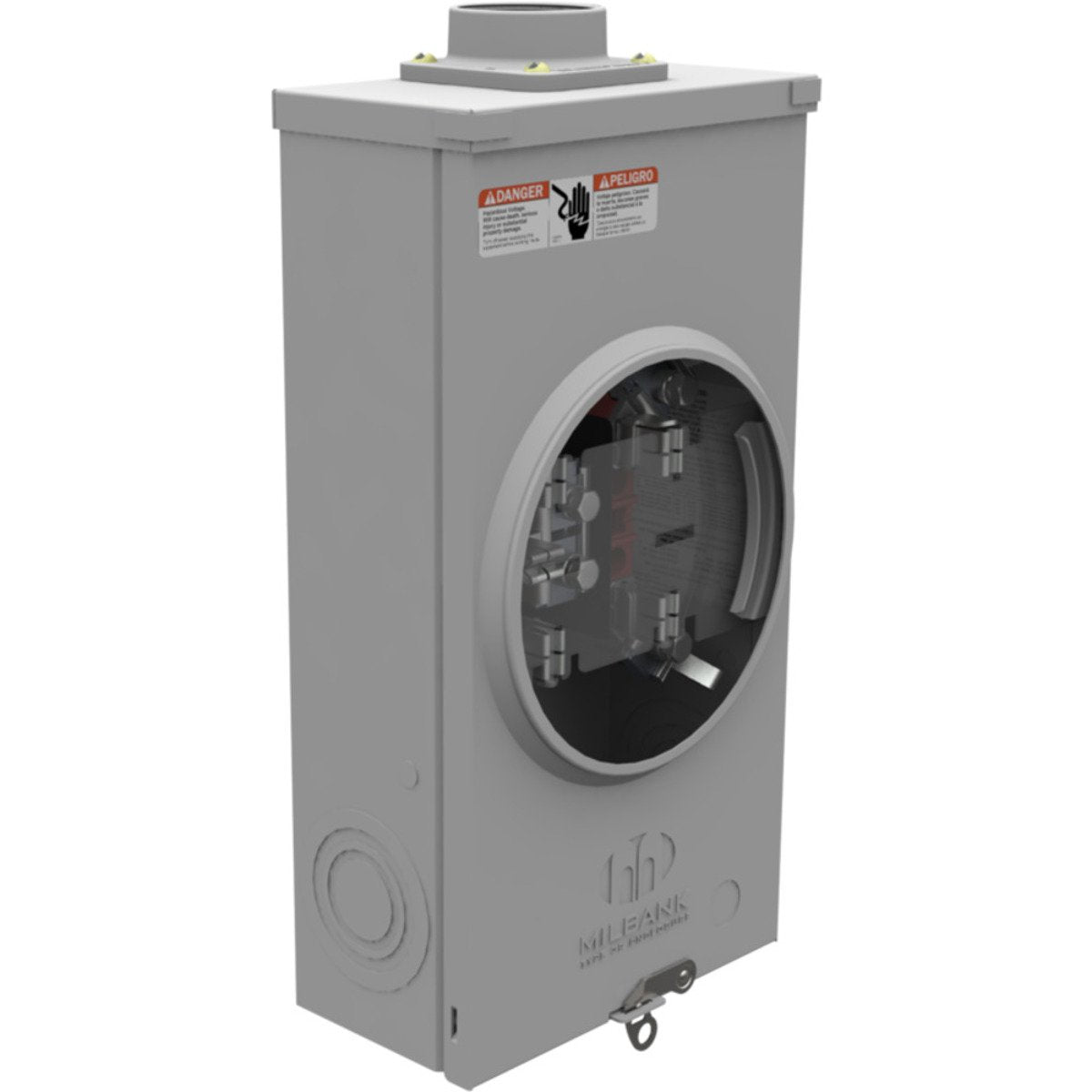

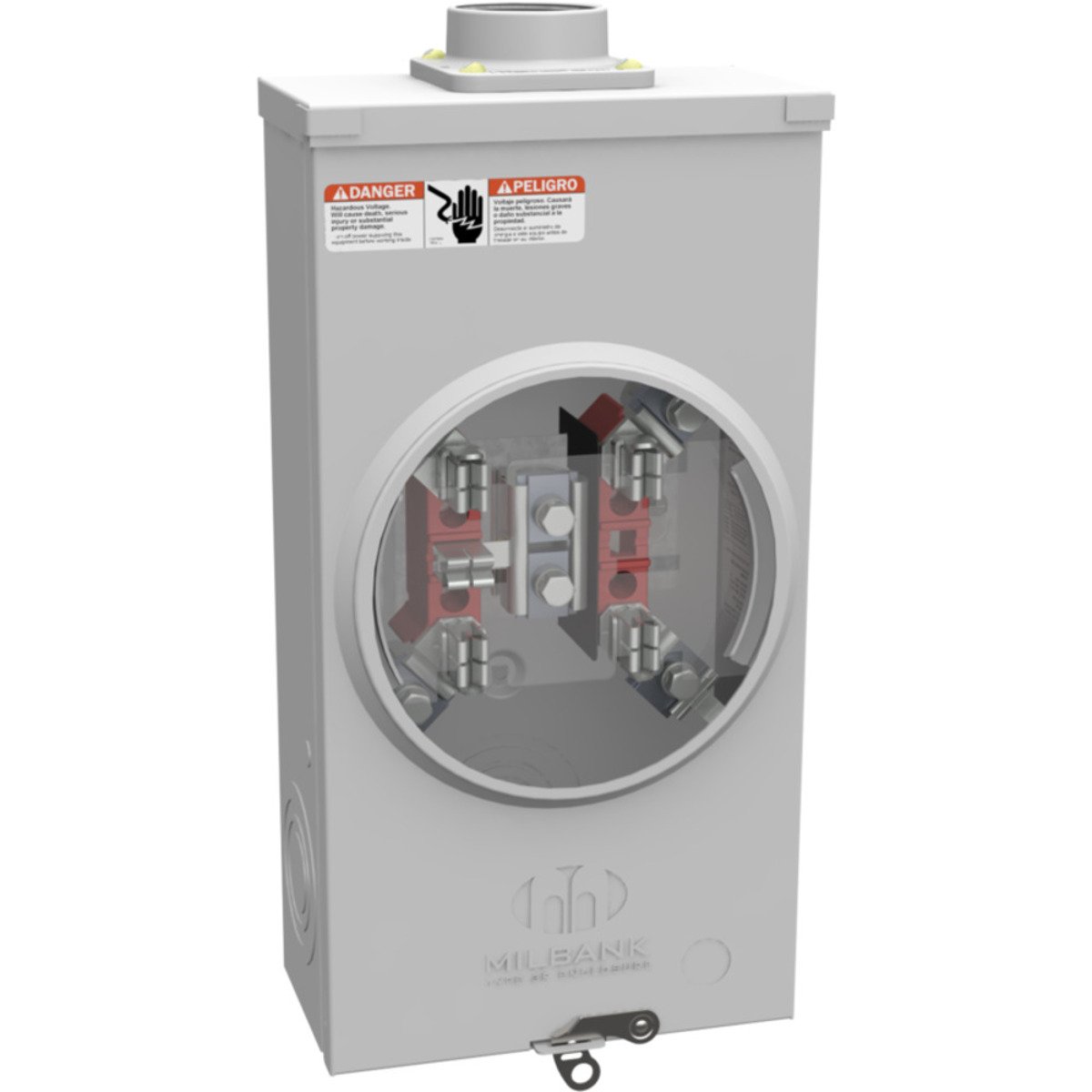

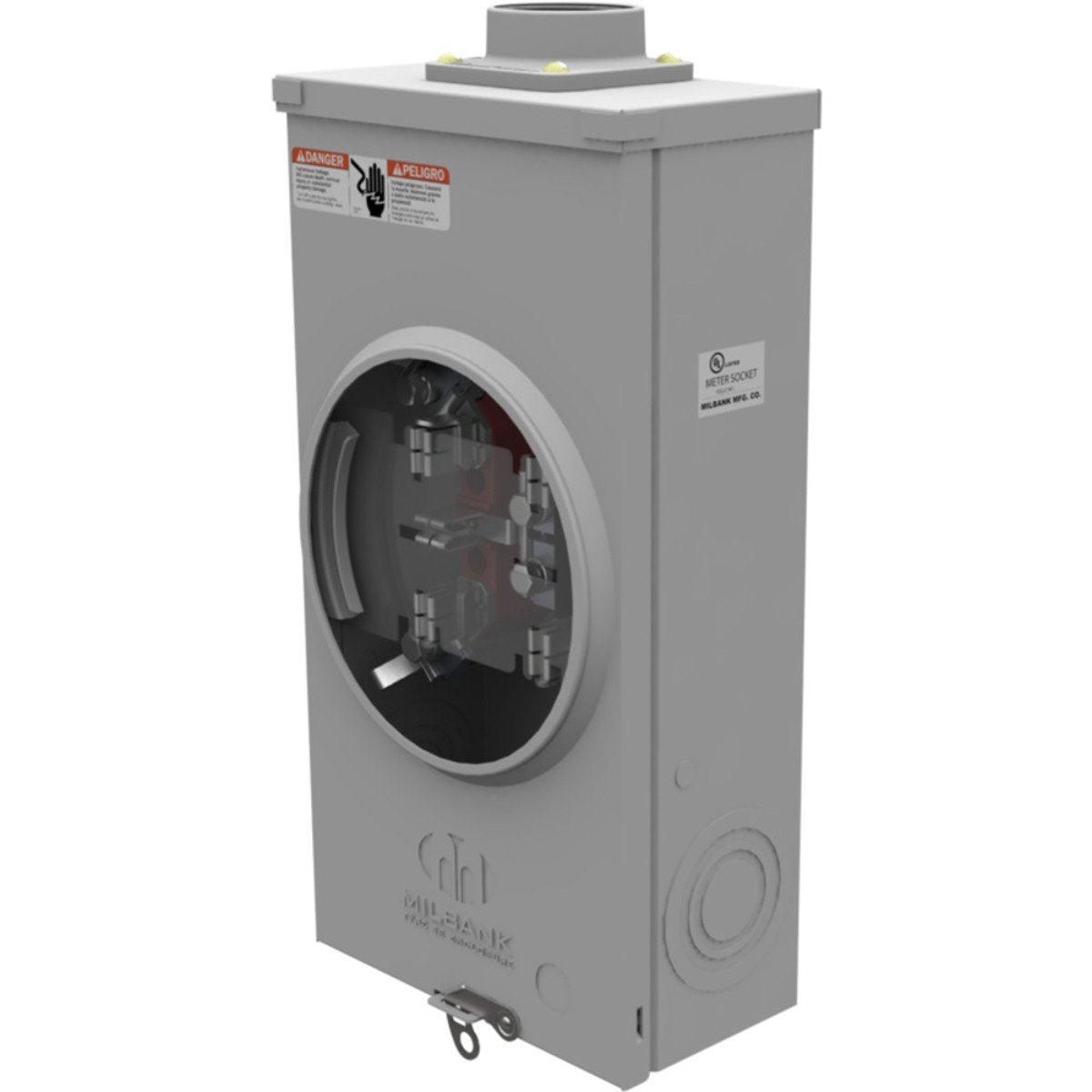

Milbank U8729-DL-KK-BLG 5 Term Ringless 2 Inch Hub Horn Bypass 7-8 Inch Barrel Lock Ground with Bracket Provision

Product Description

The Milbank U8729-DL-KK-BLG is a reliable meter socket designed for electric distribution. It features five terminals and accommodates a two-inch hub. This socket includes a horn bypass and a seven-eighths inch barrel lock ground with a bracket provision, making it suitable for various metering applications.

• Five terminal ringless design.
• Two-inch hub for easy installation.
• Constructed from tough G90 galvanized steel.

Product Highlights

This product is built for durability and efficiency in electric service applications. It is UL Listed and suitable for overhead cable entry.

Product Information

Standard Information

• Brand: Milbank
• MPN: U8729-DL-KK-BLG

Technical Specifications

• Catalog Number: U8729-DL-KK-BLG
• Made in USA: Yes
• Amperage Rating: 200
• Voltage Rating: 600 Volts Alternating Current
• Frequency Rating: 60 Hertz
• Number of Terminals: 5
• Application: Meter Socket
• Bypass Type: Horn
• Cable Entry: Overhead
• Enclosure: G90 Galvanized Steel with Powder Coat Finish
• Mounting: Surface Mount
• Size: 4.125L x 8W x 15.5H inches
