Description

Product Description

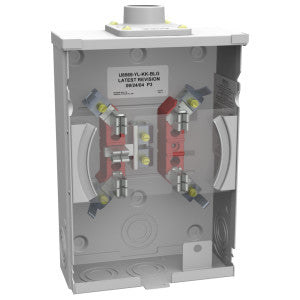

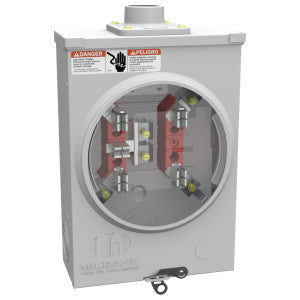

The Milbank U8569-YL-KK-BLG is a ringless meter socket rated at 125 Amps and 600 Volts AC. This meter socket is suitable for both overhead and underground applications. It features five terminal jaws and is built with a G90 galvanized steel enclosure. The socket allows surface mounting and is designed to accommodate up to six conductors of two-oh AWG copper or aluminum wire at the load and line side connections.

  • Compatible with overhead and underground installations
  • Includes five terminal jaws for effective current handling
  • Constructed from durable G90 galvanized steel

Product Highlights

This meter socket supports a maximum voltage of 600 AC and features a horn bypass for easier meter installation and removal.

Product Information

Standard Information

  • Brand: Milbank
  • Part Number: U8569-YL-KK-BLG
Technical Specifications
Amperage Rating
125 Amps
Voltage Rating
600 Volts AC
Dimensions
11.5 inches height, 8 inches width, 3.31 inches depth
Number of Jaws
5
Material
G90 Galvanized Steel
Knockouts
(1) 1.5 inches, (2) 1.5 inches, (3) 1.5 inches, (4) 1.5 inches, (6) 0.25 inches concentric
Country of Origin
United States
Standards
UL Listed
