Milbank U8213-XL-KK-BLG 4 Term, Ringless, Small Closing Plate, Horn Bypass, 3 Position, 7-8 Inch Barrel Lock Ground with Bracket Provision, 100 Amp, Side Wireway

Product Description

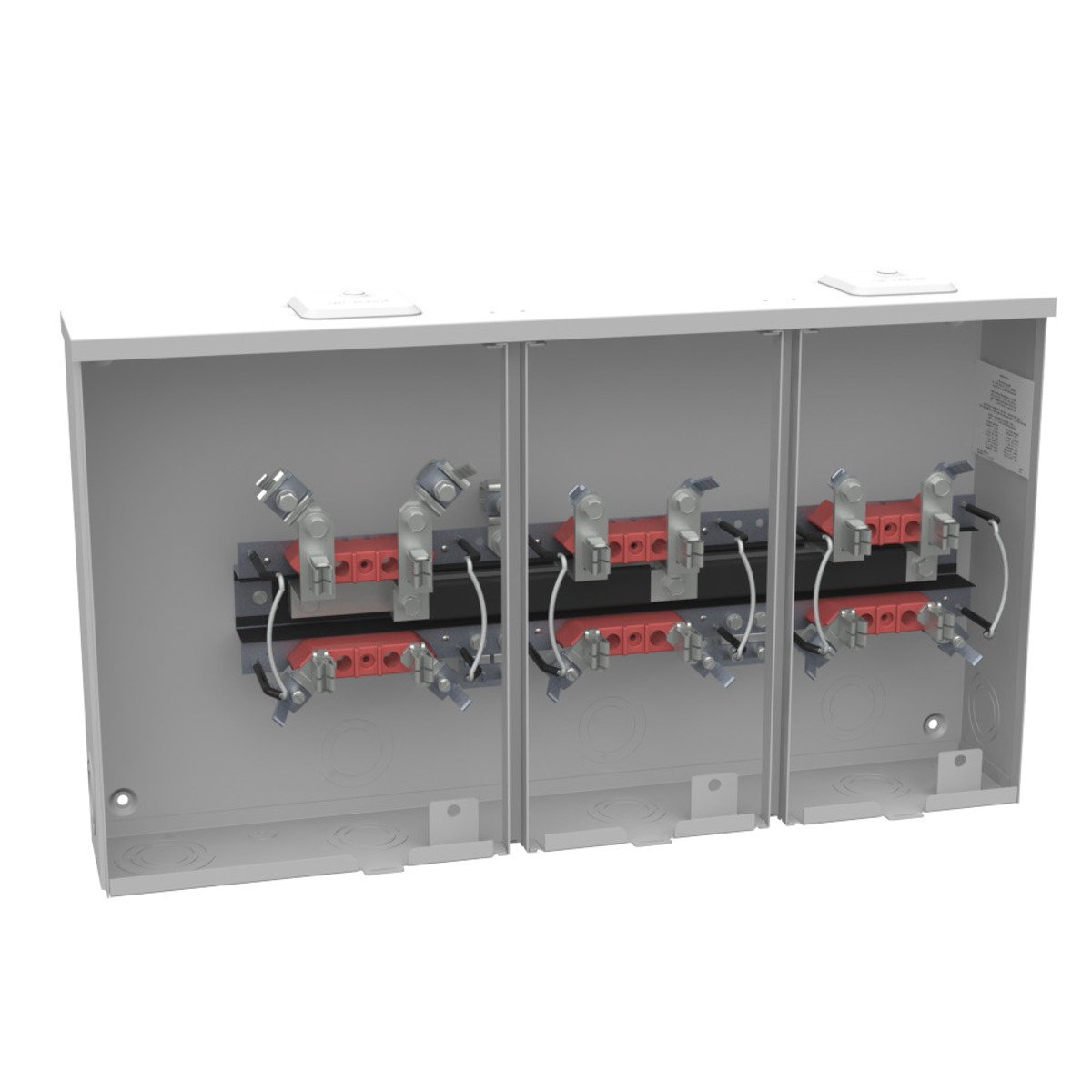

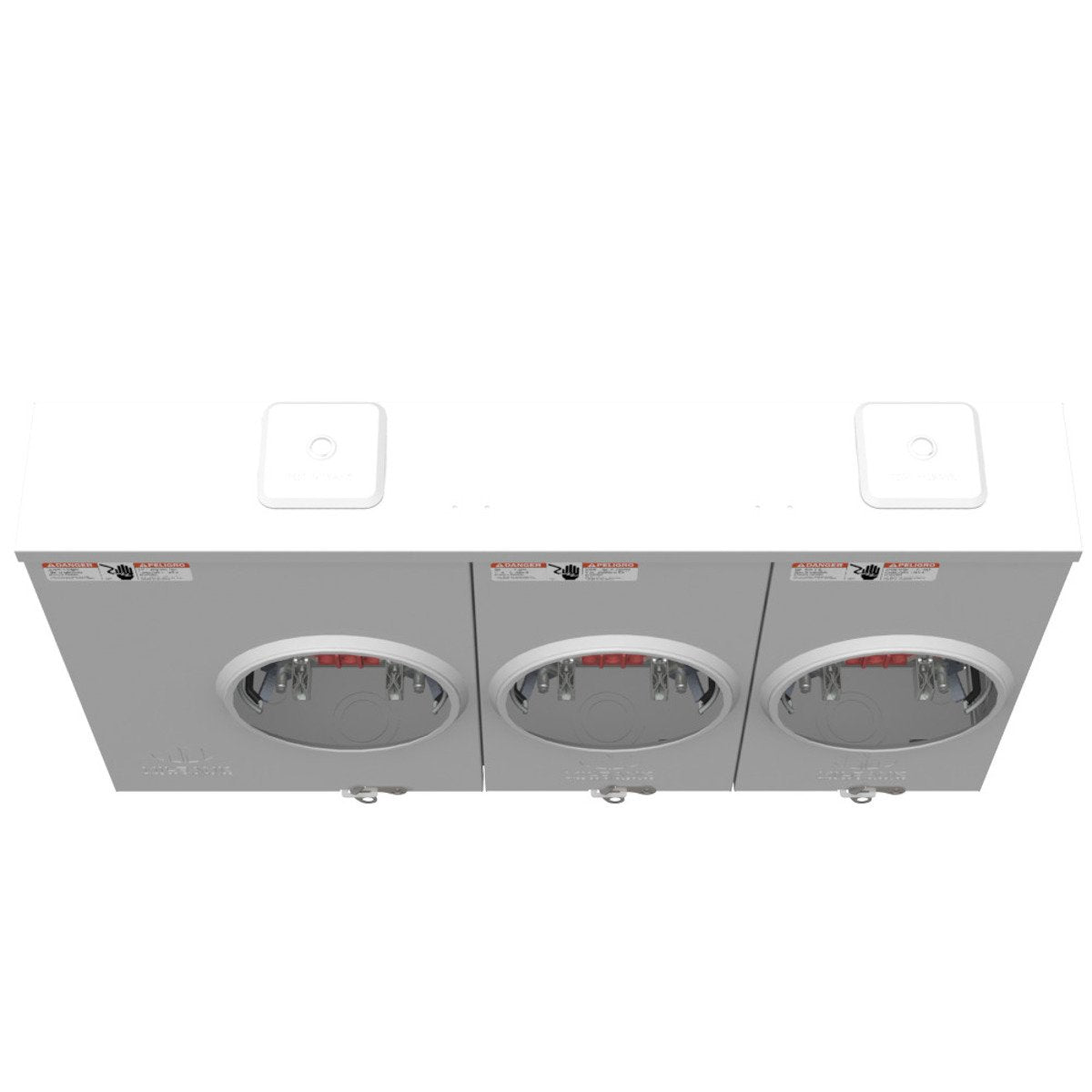

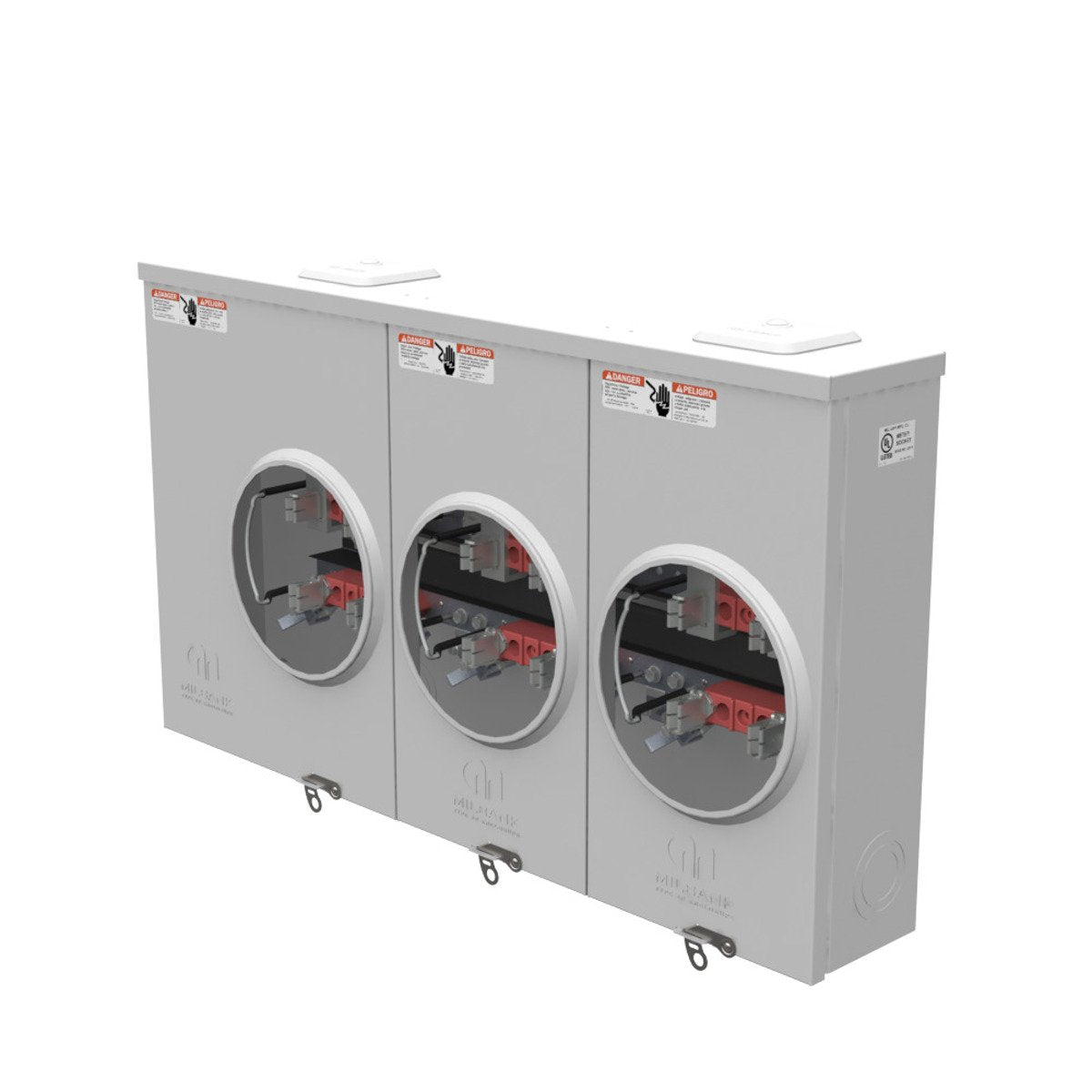

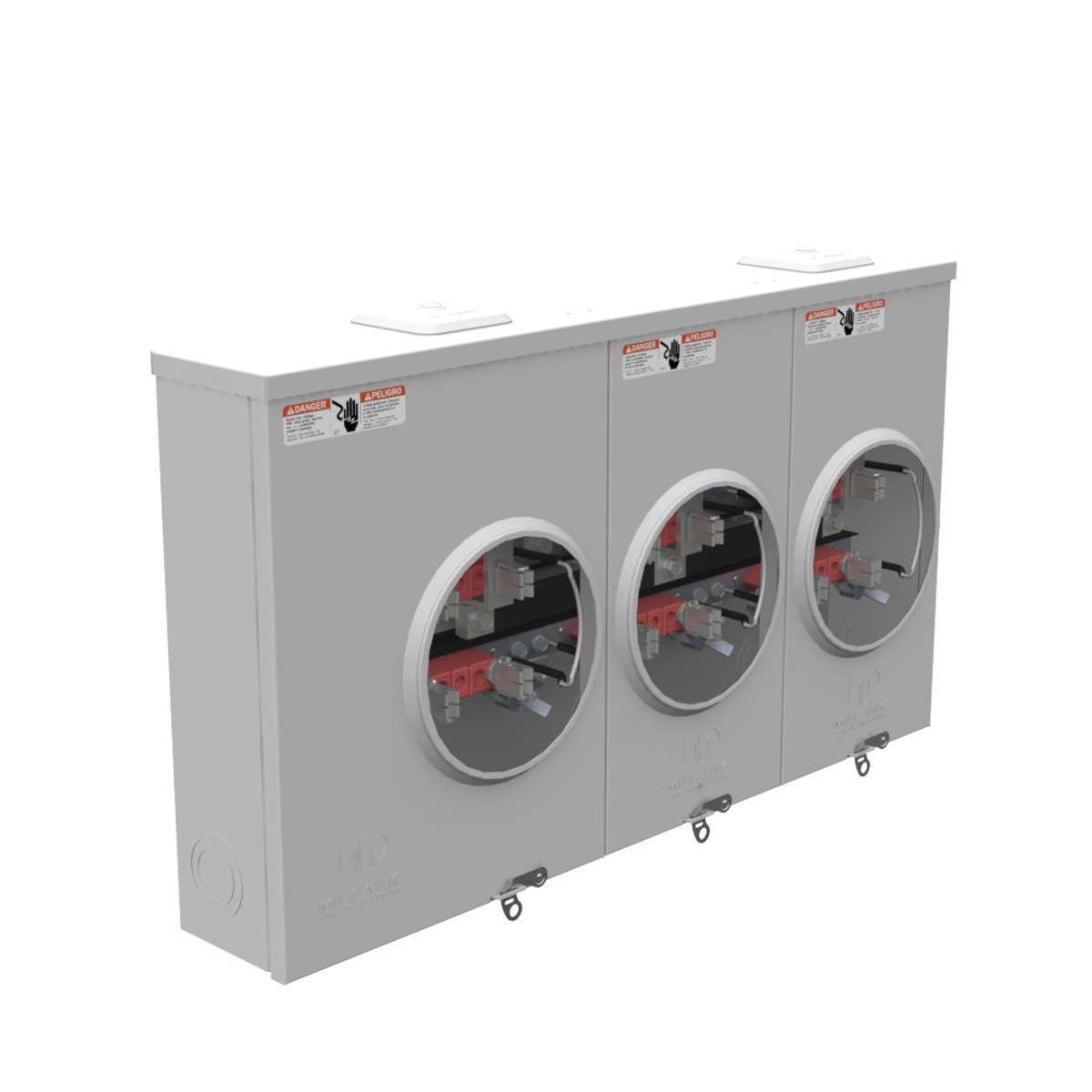

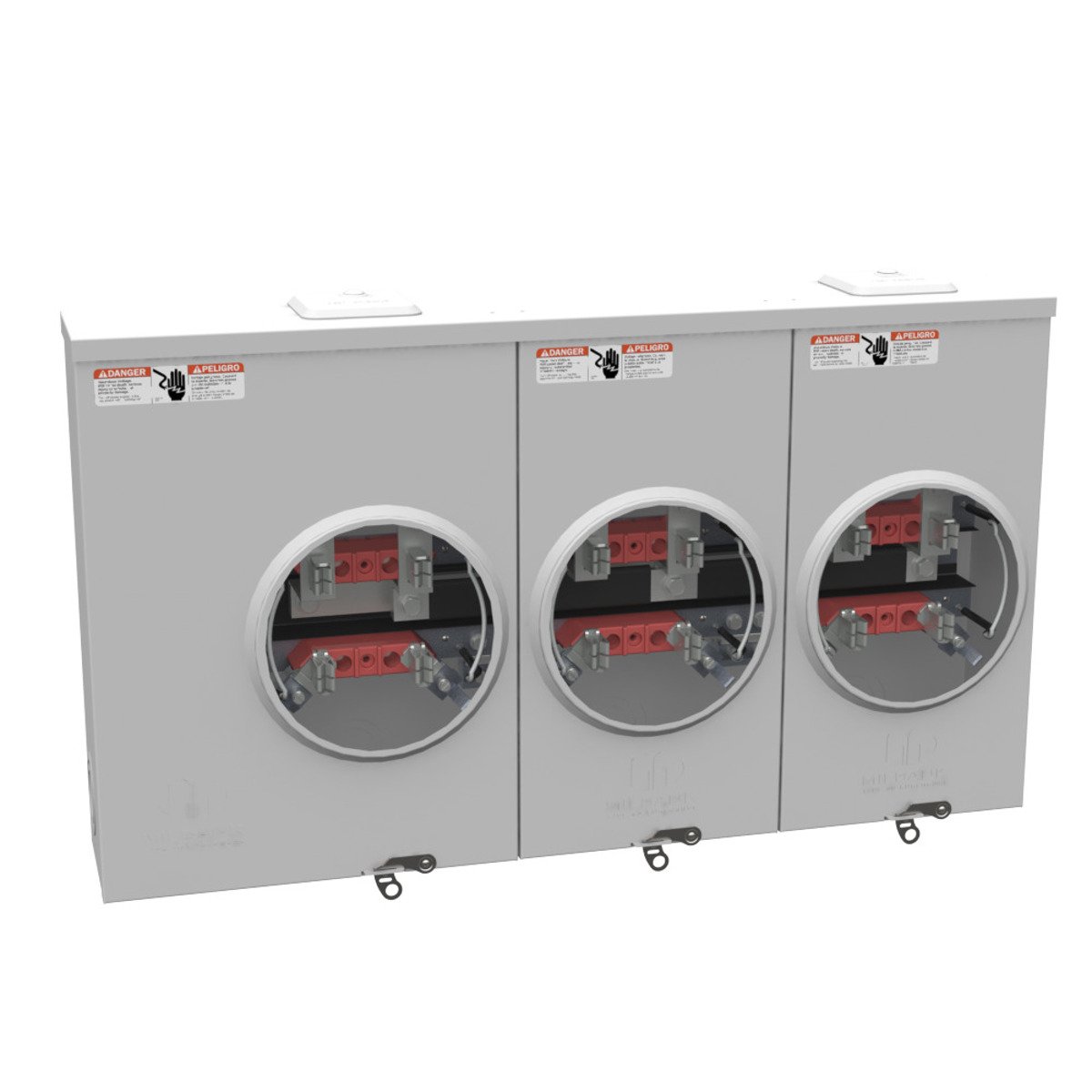

The Milbank U8213-XL-KK-BLG is a meter socket designed for use in residential and commercial buildings. This ringless model features four terminal jaws and is rated for a maximum amperage of 100 amps. The installation allows for overhead or underground cable entry. The unit measures four and a half inches deep, twenty-eight and a half inches wide, and sixteen inches high.

• Made from G90 galvanized steel with a powder coat finish.
• UL Listed for safety and reliable operation.
• Includes knockout options for flexible installation.

Product Highlights

This meter socket is ideal for applications requiring a reliable power distribution solution. It supports various wires and is built for durability.

Product Information

Standard Information

• Brand: Milbank
• Country of Origin: United States

Technical Specifications

• Catalog Number: U8213-XL-KK-BLG
• Amperage Rating: 100 Amps
• Voltage Rating: 300 Volts AC
• Dimensions: 4.5L x 28.5W x 16H Inches
• Enclosure Type: NEMA 3R
• Material: G90 Galvanized Steel
• Frequency Rating: 60 Hz
• Phase: 1
• Number of Jaws: 4
• Knockouts: (1) 2 Inch, (2) 2 Inch, (3) 2 Inch, (4) 3 Inch, (5) 1/4 Inch, (5) 1/2 Inch
